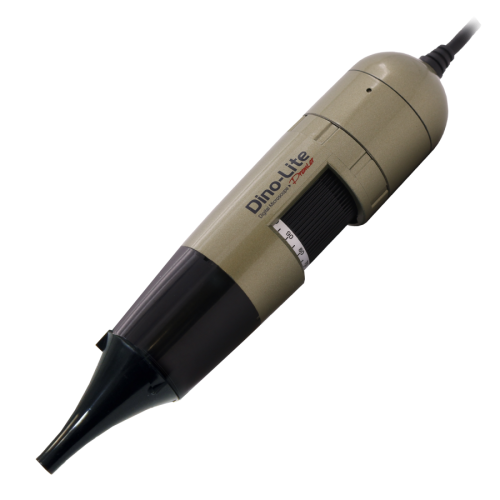

Dino-Lite EarScope Pro (MEDL4E) on kompaktne ja ohutu lahendus kõrvakile ja välise kõrva uurimiseks. MEDL4E on Pro mudel 1,3-megapikslise eraldusvõimega ja 55-90x suurendusega. See mudel tarnitakse koos 3, 4 ja 5 mm suuruste ühekordsete spekulumidega (10 tk iga suuruse kohta).
Lighting
Light/ LED typeWhite
Number of LEDs6
LED on/off switchable:Yes
Infrared filterIR cut-filter >650 nm
Diffuser availableNo
PolarizerNo
Optics
Magnification55-90x
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution1.3 Megapixel (1280x1024)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7, 8, 10 & 11, MacOS 10.9 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV
Imaging standardsDirectShow, UVC
Housing
Housing materialComposite/plastic housing
Magnification lockYes
Dimensions10.5cm (L) x 3.2cm (D)
Weight95 g
Cable length1.8m
Features
Special featureNo
MeasurementNo
CalibrationNo
Microtouch sensorYes
Information
Package contentsMicroscope, carry pouch, 10x 3 mm specula, 10x 4 mm specula, 10x 5 mm specula, user manual
Warranty information2 years European warranty
Regulatory approvalMedical Device Class 1 – Medical Devices Regulation (EU) 2017/745
