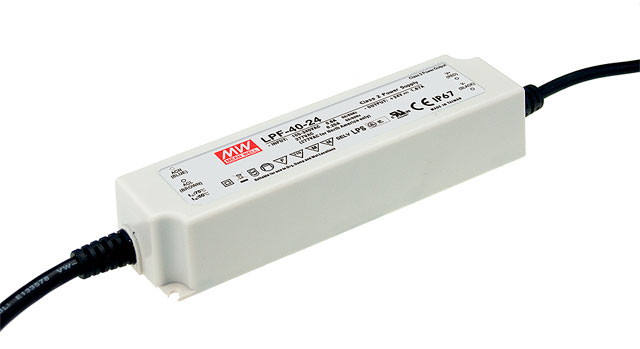

Toiteplokk LED 40W 12V 3.34A

Technical data		Information
Brand	Mean Well	Commodity	8504409090
Item number	LPF-40D-12	Warranty pack	60 Months Bring-In
Series	LPF-40D	RoHS	Compliant
Description	AC-DC Single output LED driver Mix mode (CV+CC); Output 12Vdc at 3.34A; cable output; Dimming with 1-10V PWM resistance	Packing quantity	32
Application	LED EN 61347	Net weight (gram)	450
Technology	AC/DC Constant Current C.C.
Power Format	Box Type - Enclosed
Output Power (W)	40
Output Voltage (V)	12
Output Current (A)	3.34
Input Voltage (V)	90 - 305 Universal Input 110/230V
IP Rating	IP20 IP21 IP30 IP40 IP42 IP50 IP64 IP65 IP66 IP67
Width (mm)	43
Height (mm)	32
Depth (mm)	162.5
Dimming Technology	1-10V PWM Resistance

23,00 € (ilma km-ta)

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

LED_EN.pdf LPF-40D-spec.pdf

Manufacturer Part Number: LPF-40D-12
Tootekood: EE-100-185-229
