2.4 GHz raadiolink: PtP, 100 Mbps, 5 km, 1x 10/100Mbps, passive PoE toide, toiteadapter kaasas

2.4 GHz raadiolink: PtP, 100 Mbps, 5 km, 1x 10/100Mbps, passive PoE toide, toiteadapter kaasas

Taskukohane ja tõhus 2.4 GHz raadiolink.

Mechanical
Dimensions	161 x 31 x 80 mm (6.3 x 1.2 x 3.2")
Weight	180 g (6.4 oz)
Enclosure material	Outdoor UV-stabilized plastic
Mounting	Pole-mount (Kit included)
Hardware

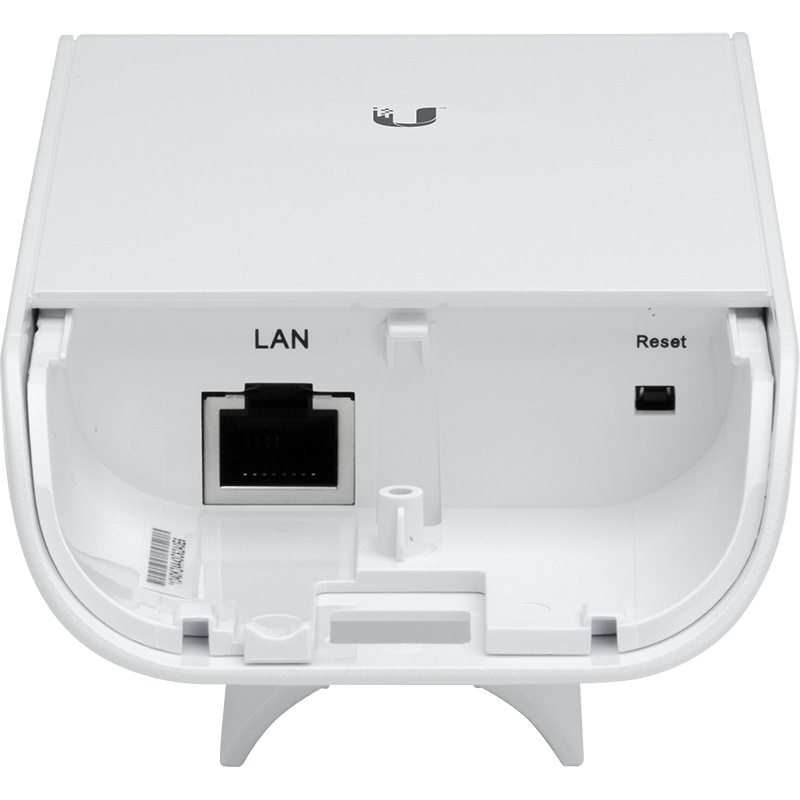

Networking interface	(1) 10/100 MbE RJ45 port
Power method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply	24V, 0.5A PoE adapter (Included)
Supported voltage range	22–27V DC
Max. power consumption	5.5W
Ambient operating temperature	-30 to 75° C (-22 to 167° F)
Ambient operating humidity	5 to 95% noncondensing
Shock & vibration	ETSI300-019-1.4
Certifications	FCC, IC, CE, RoHS
System
Frequency	2.4 GHz
Operating frequency	2412-2462 MHz
Gain	8.5 dBi
Cross-pol isolation	20 dB Min.
Max. VSWR	1.4:1
Beamwidth	60° (H-pol) / 60° (V-pol) / 60° (Elevation)
Polarization	Dual linear

45,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: LocoM2
Tootekood: EE-100-194-211
