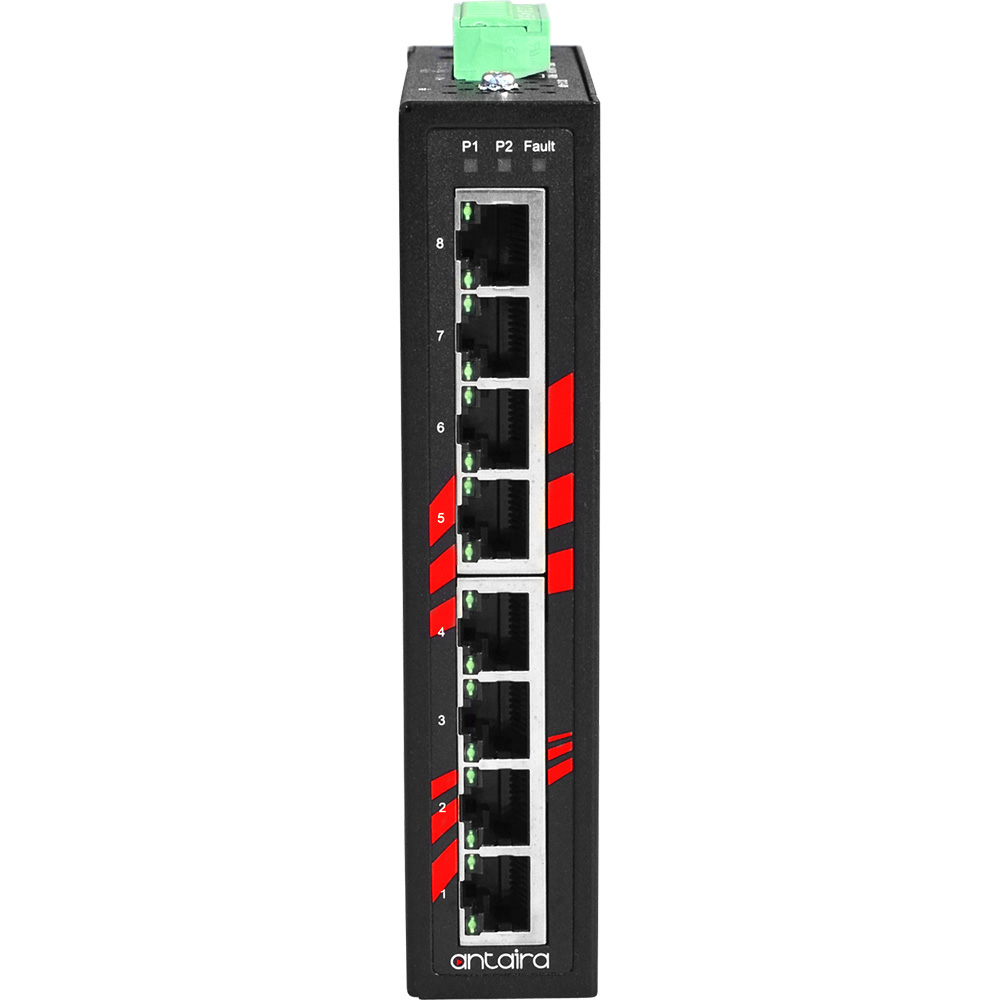

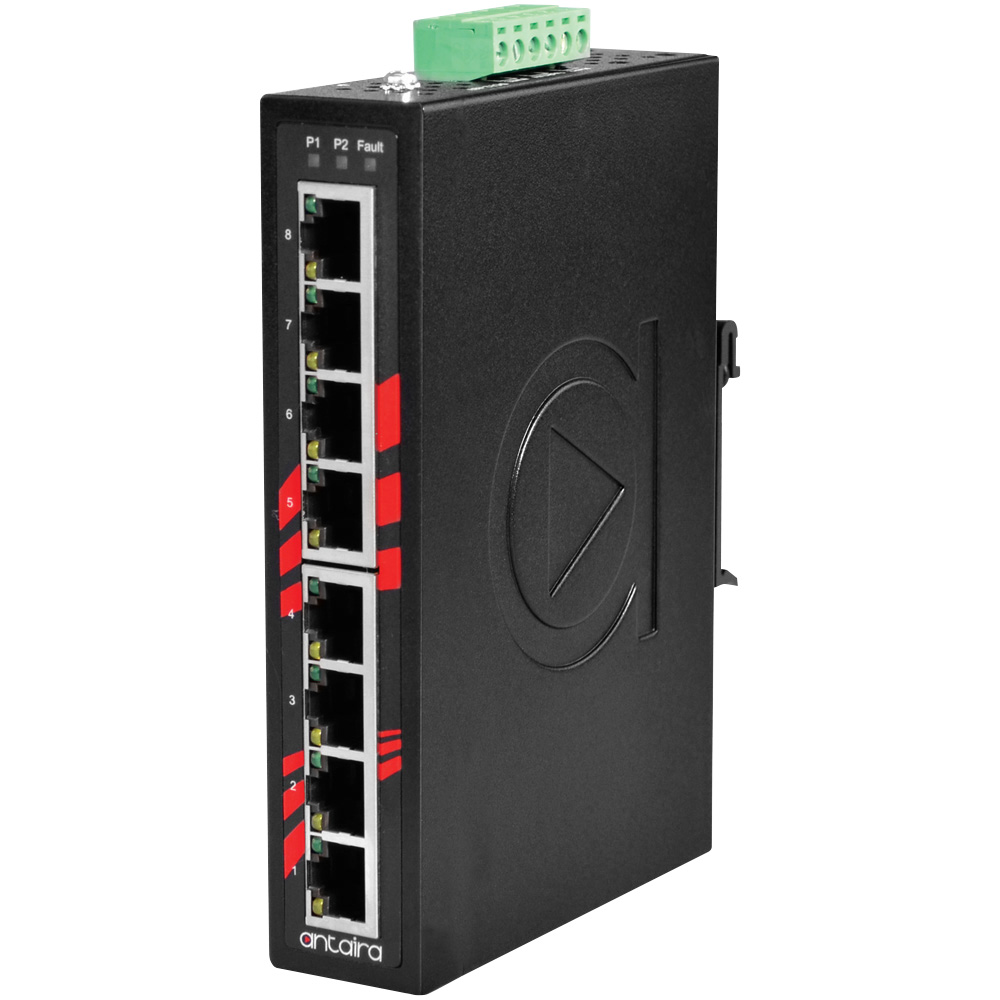

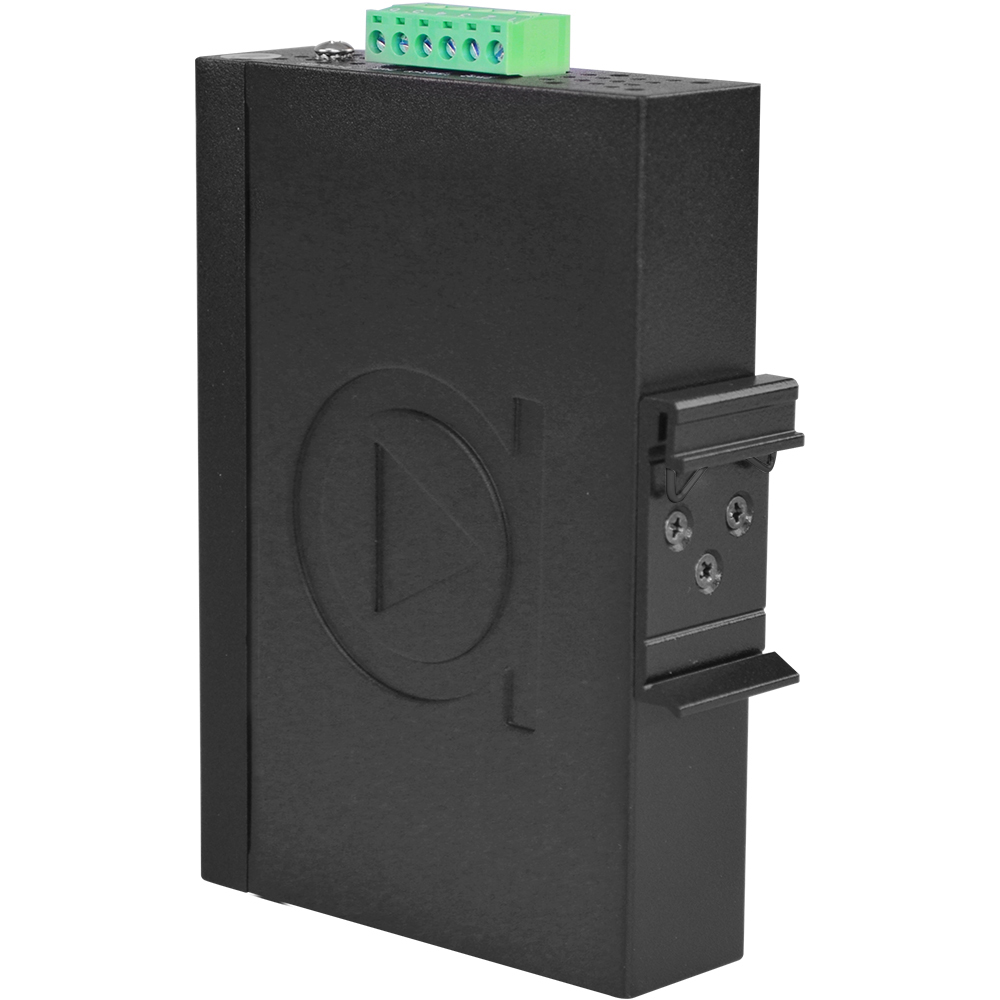

Switch: 8 x 10/100/1000BaseT(X), -40 kuni 80°C, mittemanageeritav, DIN

Certifications FCC, CE, UL Class 1 Div. 2, UL 61010-1, UL 61010-2-201, Class 1 Div 2
Dimensions 30 x 140 x 95 mm
ESD 6,000VDC
Ethernet Port 8*10/100/1000Tx RJ45
Free Fall IEC 60068-2-32
Humidity 5% ~ 95% non-condensing
Input Voltage 12 ~ 48VDC, Redundant Input
Jumbo Frame 9.6Kbytes
Mac Address Table 8K MAC Address Table
Memory Buffer 4Mbits
Operating Temperature -40° ~ 75°C
Overload Current Protection Present
Power Connection 1 removable 6-contact terminal block
Power Consumption 7.5 Watts
Processing Type Store and Forward
Protocols CSMA/CD
Reverse Polarity Protection Yes
Shock IEC 60068-2-27
Standards IEEE 802.3 10BaseTx Ethernet
IEEE 802.3u 100BaseTx Fast Ethernet
IEEE 802.3az Gigabit Fiber
Storage Temperature -40° ~ 85°C
Surge Protection 3,000VDC
Switching Architecture Back-Plane (Switching Fabric): 16Gbps
Vibration IEC 60068-2-6
Warranty 5 Years
307,00 € 307,00 € (ilma km-ta)

  • Input voltage
  • Number of ports
  • Speed of switch
  • Switch type
  • Temperature range
  • Total nr of ports
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
Antaira_LNX-800AG series_Datasheet-v2.1.pdf

Manufacturer Part Number: LNX-800AG-T
Tootekood: EE-100-170-059

Spetsifikatsioon

Input voltage 12–48 VDC
Number of ports 8
Speed of switch 10 100 1000
Switch type Unmanaged
Temperature range -40 to 75 °C
Total nr of ports 8
Weight 0.45 kg
