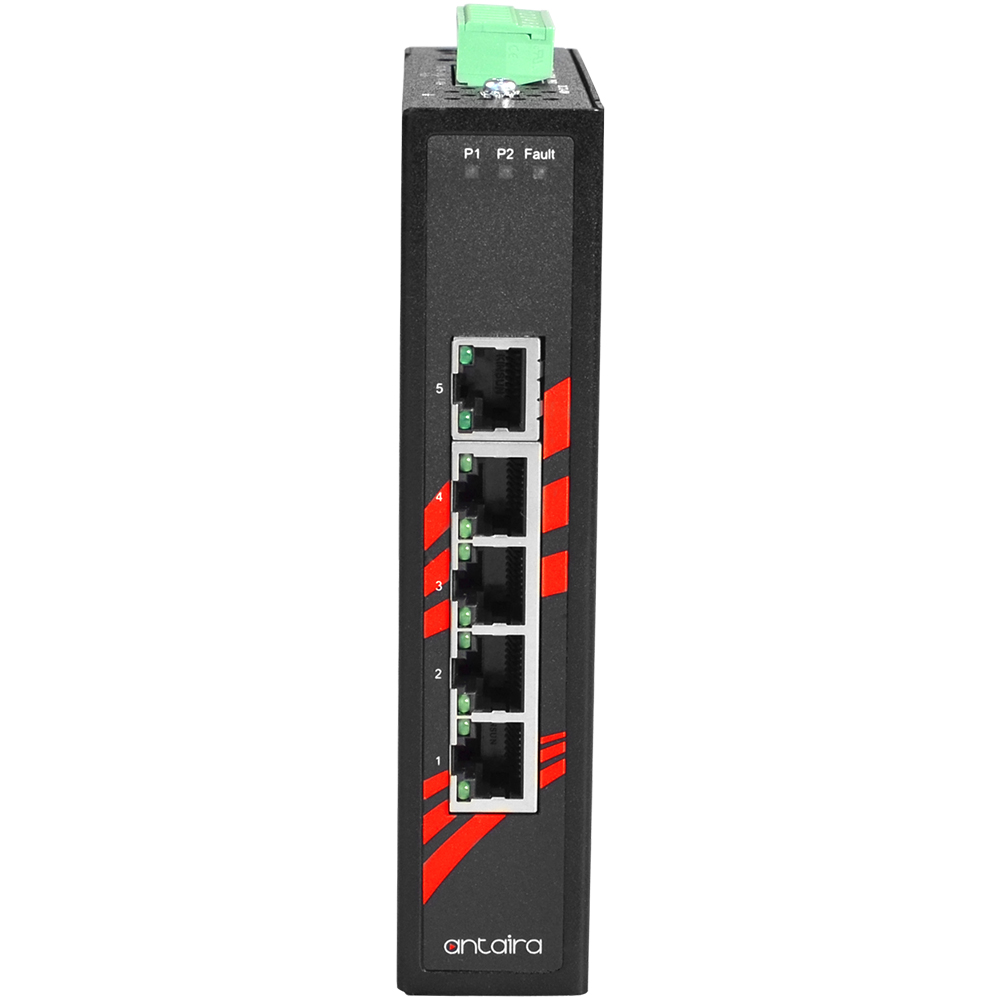

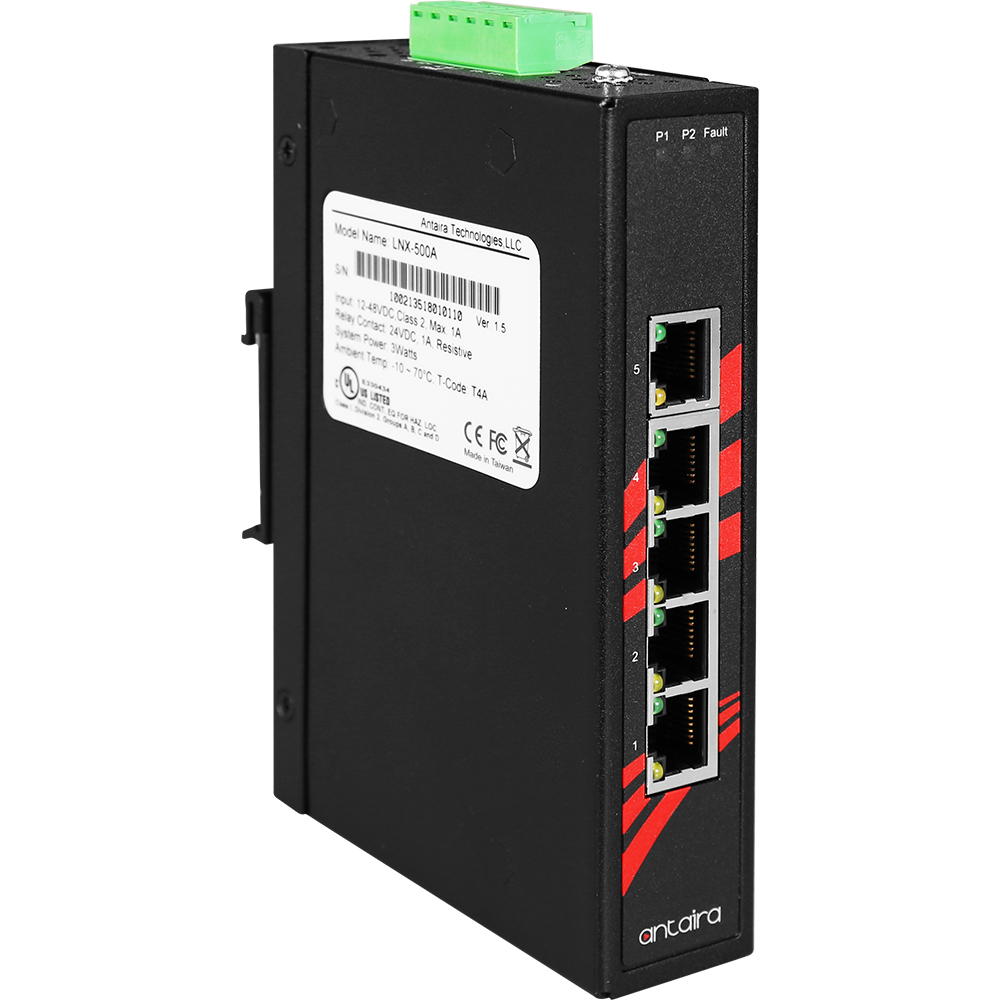

LNX-500AG-T on 5-portiline 10/100/1000T Slim Industrial Ethernet Switch (laiendatud töötemperatuur).
Omadused
Laiendatud töötemperatuur -40° ~ 75° C (-40° ~ 167° F)
RJ-45 port toetab Auto MDI/MDI-X funktsiooni
Salvesta ja edasta lülitusarhitektuur (Store-and-Forward)
10 Gbps tagaplaan (Switching Fabric)
136 Kbits mälupuhver
8K MAC-aadresside tabel
9 kabaiti Jumbo Frame
Laiaulatuslik redundantse võimsuse disain
Toite polaarsuse reservi kaitse
Ülekoormusvool Reset Kaitselüliti olemas
Toetab 4000 VDC Ethernet ESD kaitset
IP-30 vastupidav alumiiniumist korpuse disain

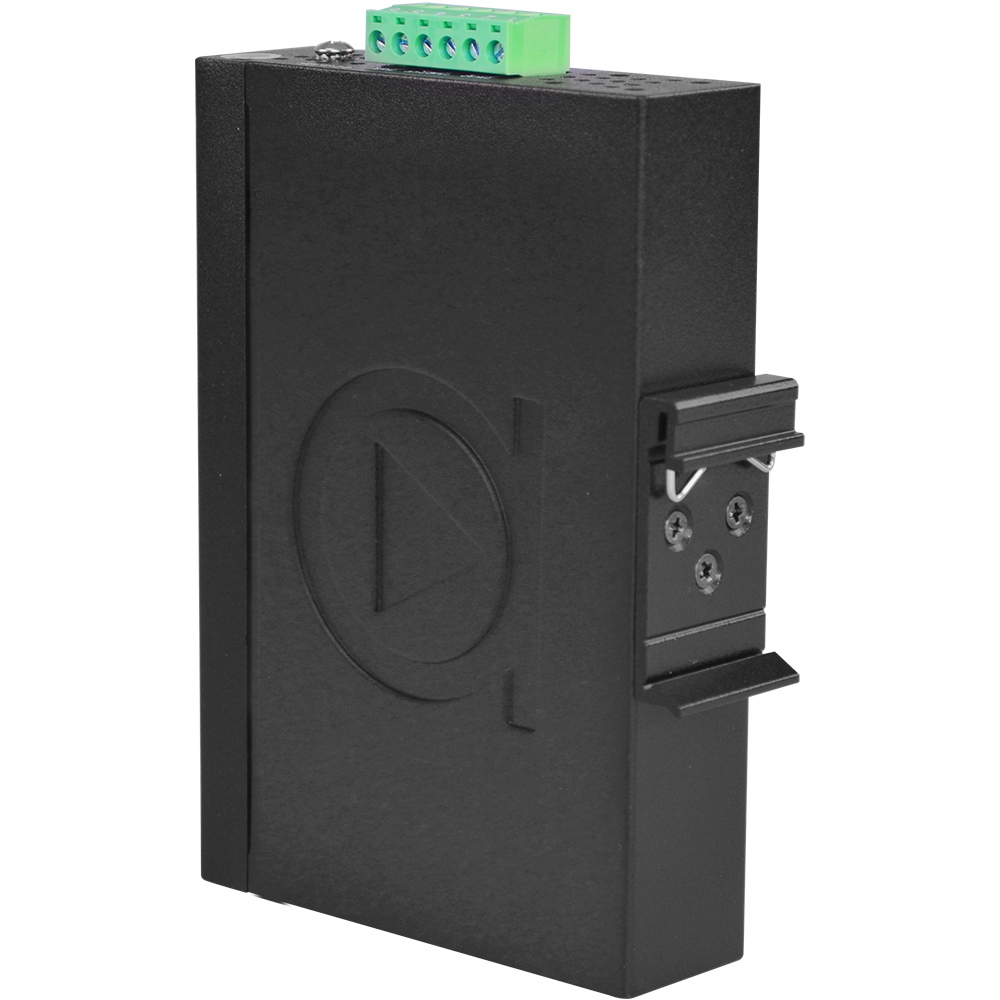

DIN-riba ja seinale paigaldatav disain
UL klassi I, divisjoni 2 sertifitseeritud
5-aastane garantii

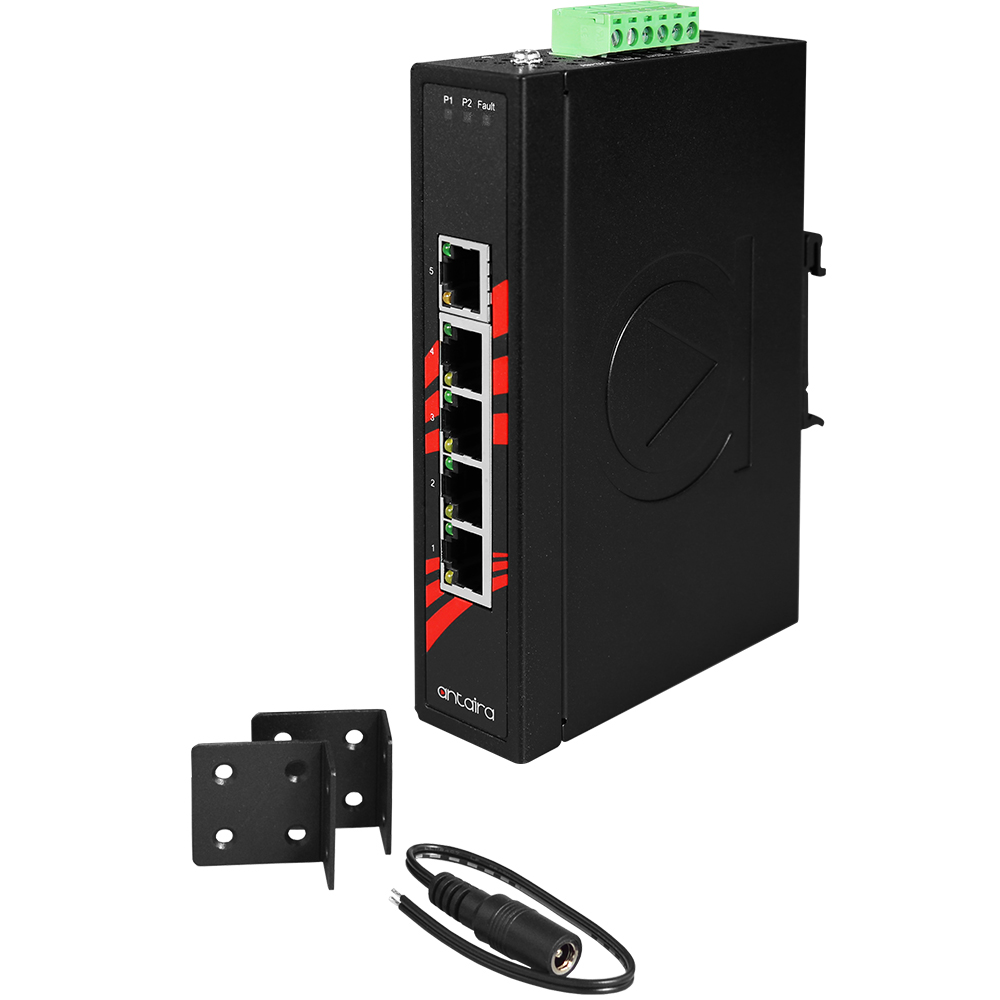

Komplektis
LNX-500AG-T
Paigaldusklambrid
|
Back Plane |
10.0 Gbps |
|
Buffer |
136Kbits |
|
Dimensions |
IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches) |
|
EMI |
FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4 |
|
ESD |
6,000VDC |
|
Ethernet Port |
5 x 10/100/1000T RJ-45 |
|
Fault Output |
1 Relay Output |
|
Free Fall |
IEC 60068-2-32 |
|
Gigabit Ethernet Port |
Yes, Ethernet Ports |
|
Humidity |
5% ~ 95% non-condensing |
|
IEEE |
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX & 1000BaseFX
IEEE 802.3ab 1000BaseT
IEEE 802.3x Flow Control and Back-Pressure |
|
Jumbo Frame |
9Kbytes |
|
LED |
Port: Link/Activity, Speed
Unit: Power1, Power2, Fault |
|
Mac Address Table |
8K MAC Address Table |
|
Method |
Store and Forward |
|
Operating Temperature |
-40° ~ 75° C (-40° ~ 167° F) |
|
Overload Current |
Yes |
|
Power Consumption |
5 Watts |
|
Power Input |
12 ~ 48 VDC |
|
Power Redundancy |
Yes |
|
Protocols |
CSMA/CD |
|
Reverse Polarity |
Yes |
|
Safety |
FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2 |
|
Shock |
IEC 60068-2-27 |
|
Storage Temperature |
-40° ~ 85° C |
|
Surge Protection |
3,000VDC |
|
Transfer Rate |
14,880pps for Ethernet Port
148,800pps for Fast Ethernet Port
1,488,000pps for Gigabit Ethernet Port |
|
Vibration |
IEC 60068-2-6 |
|
Warranty |
5 Years |
