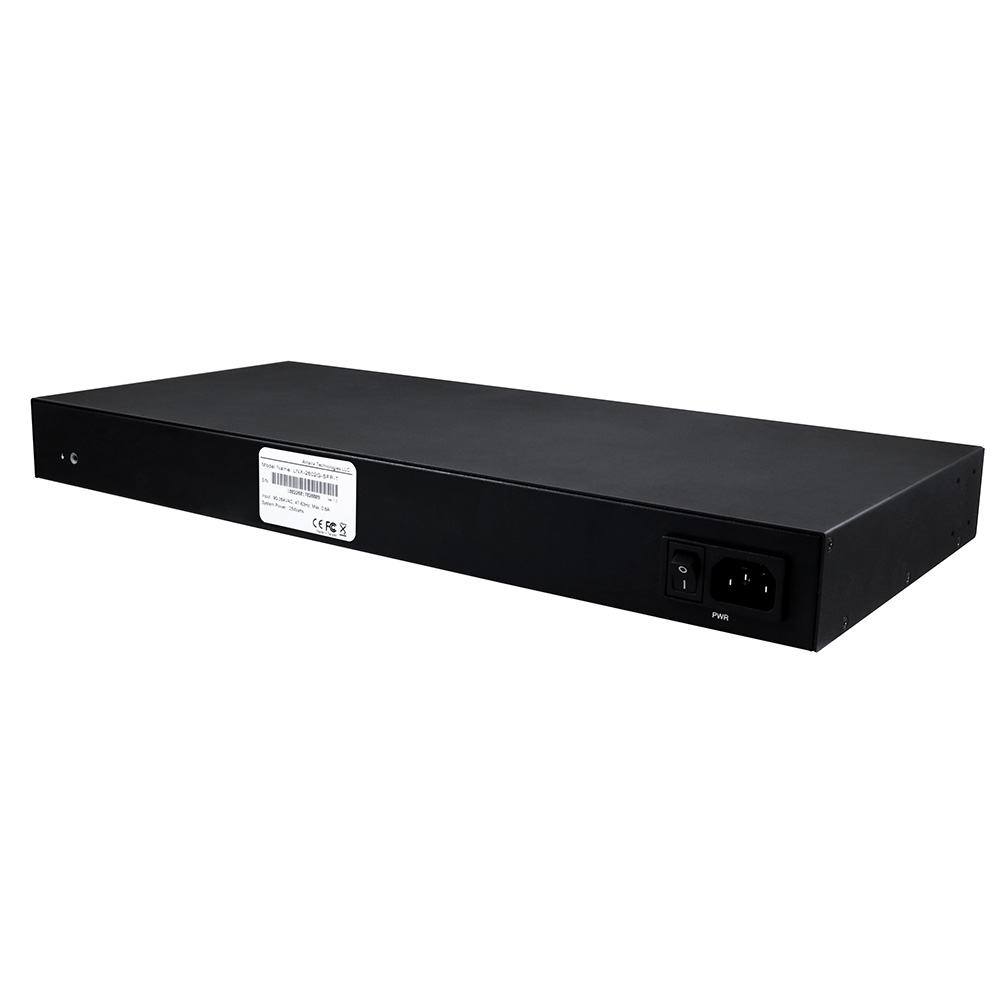

Switch: 24 x 10/100/1000BaseT(X), 2 x SFP, -40 kuni 80°C, mittemanageeritav, rackitav

Switch: 24 x 10/100/1000BaseT(X), 2 x SFP, -40 kuni 80°C, mittemanageeritav, rackitav

Dimensions	440 x 44 x 200 mm (W x H x D)
EMI	FCC Part 15 Subpart B Class A, CE EN 55022 Class A
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)
Ethernet Port	24*10/100/1000Tx RJ45
Flow Control	IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration	IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Gigabit Combo Port	2RJ45 Ports w/10/100/1000Tx Ethernet and 2100/1000 SFP Slots
Green	RoHS Compliant
Housing / Mounting	Metal, IP40 protection / 1U 19" Rackmount
Input Voltage	90-264VAC/47-63Hz
Jumbo Frame	9.6Kbytes
MAC Table Size	8K
Memory Buffer	4Mbits
Network Cable	10Base Tx: UTP/STP Cat. 3,5 100Base Tx: UTP/STP Cat. 5 1000Base Tx: UTP/STP Cat.5/5e/6
Operating Temperature	EOT: -40° to 75° C
Overload Current Protection	Present (Slow-Blown Fuse)
Power Consumption	24 Watts for System
Processing Type	Store and Forward
Protocols	CSMA/CD
Standards	IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT IEEE 802.3z 1000Base-X Gigabit Fiber
Switching Architecture	Back-Plane: Non-Blocking Switching Fabric
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Warranty	5 Years
Wavelength	Refer to SFP module

1 445,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_LNX-2602G-SFP series_Datasheet-v1.0.pdf

Manufacturer Part Number: LNX-2602G-SFP-T
Tootekood: EE-100-170-052

Spetsifikatsioon

Weight

2.81 kg
