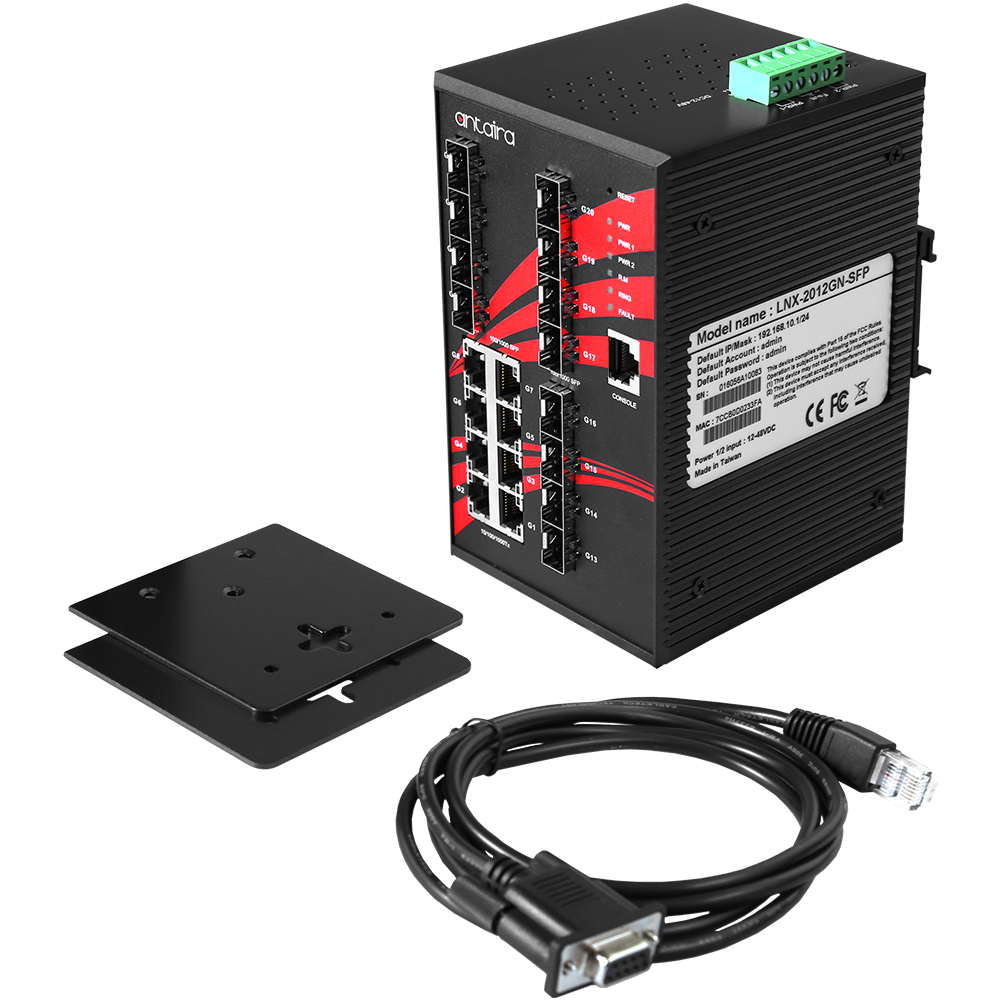

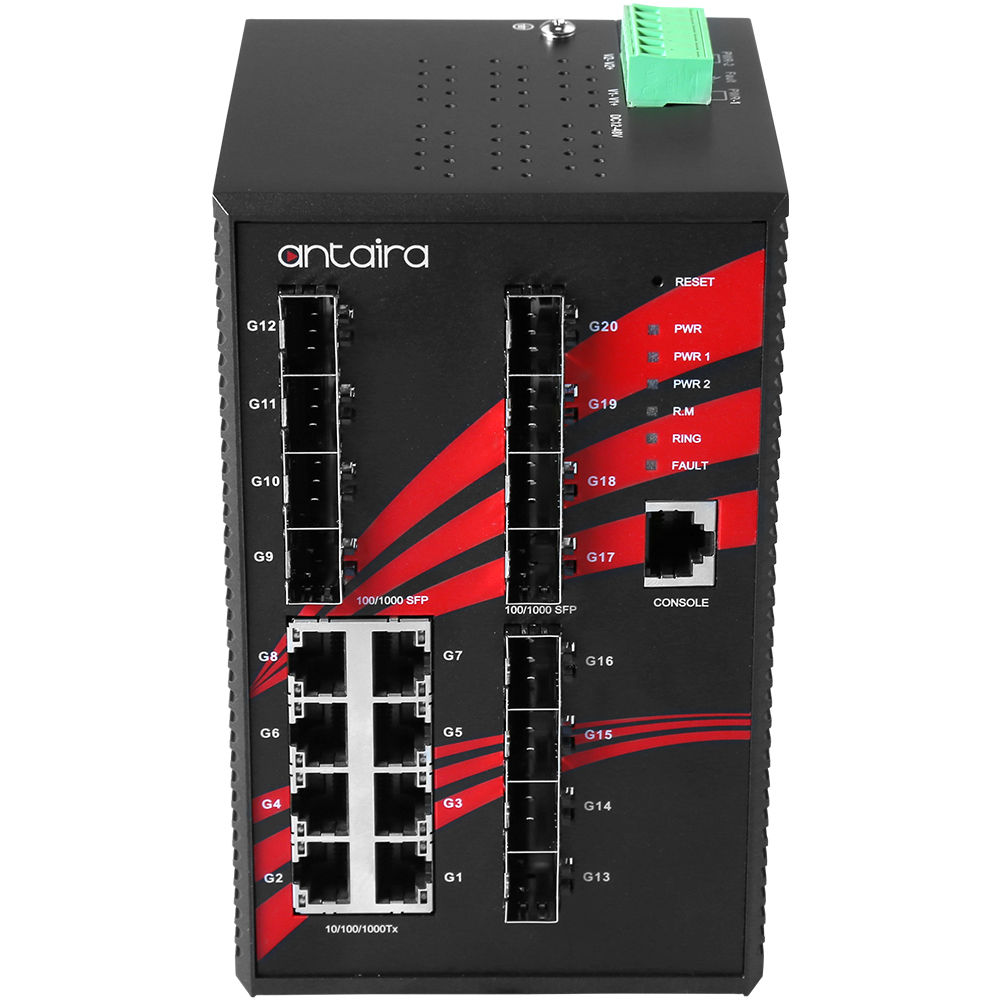

Switch: 8 x 10/100/1000BaseT(X), 12 x SFP, -40 kuni 80°C, manageeritav, DIN

Switch: 8 x 10/100/1000BaseT(X), 12 x SFP, -40 kuni 80°C, manageeritav, DIN

Certifications	FCC, CE, UL/cUL 508, ISA 12.12.01
Dimensions	96.4 x 154 x 105.5 mm
EMS	IEC61000-4-2,3,4,5,6,8,11 IEC61000-6-2,4
Ethernet Port	8*RJ45 Ports w/ 10/100/1000Tx
Fiber Port	12*100/1000 SFP Slot
Flow Control	IEEE 802.3x for full duplex mode, backpressure for half duplex mode
Housing	Metal, IP30 Protection
Input Voltage	12~48VDC, Redundant Input
Jumbo Frame	9.6Kbytes
MAC Table Size	8K
Mounting	DIN-Rail and Wall Mounting
Operating Temperature	EOT: -40C to 75C
Overload Current Protection	Present
Packet Buffer	4 Mbits
Power Connection	1 Removable 6-Contact Terminal Block
Power Consumption	10 Watts
Processing Type	Store and Forward
Reverse Polarity Power Protection	Present
Shock/Vibration/Free Fall	IEC60068-2-27,6,32
Standards	IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber IEEE 802.3x Flow Control for Full Duplex IEEE 802.3ad for Port Trunk with LACP IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) IEEE 802.1Q for VLAN Tagging IEEE 802.1x for Network Authentication IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
Storage Temperature	-40C to 85C
Switching Architecture	Back-Plane (Switching Fabric): 40.0Gbps
Technology Protocol	CSMA/CD
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Warranty	5 Years

1 505,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_LNX-2012GN-SFP series_Datasheet-v1.2.pdf

Manufacturer Part Number: LNX-2012GN-SFP-T
Tootekood: EE-100-170-050

Spetsifikatsioon

Weight

1.22 kg
