Ambient Relative Humidity |
5% to 95%, (non-condensing) |
|
Dimensions |
67 x 142 x 99 mm (W x H x D) |
|
EMI |
FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A |
|
EMS |
CE EN 55024 Class A,
EN 61000-6-2 Class A,
IEC61000-4-2 (ESD),
IEC61000-4-3 (RS),
IEC61000-4-4 (EFT),
IEC61000-4-5 (Surge),
IEC61000-4-6 (CS),
IEC61000-4-8 (Magnetic Field) |
|

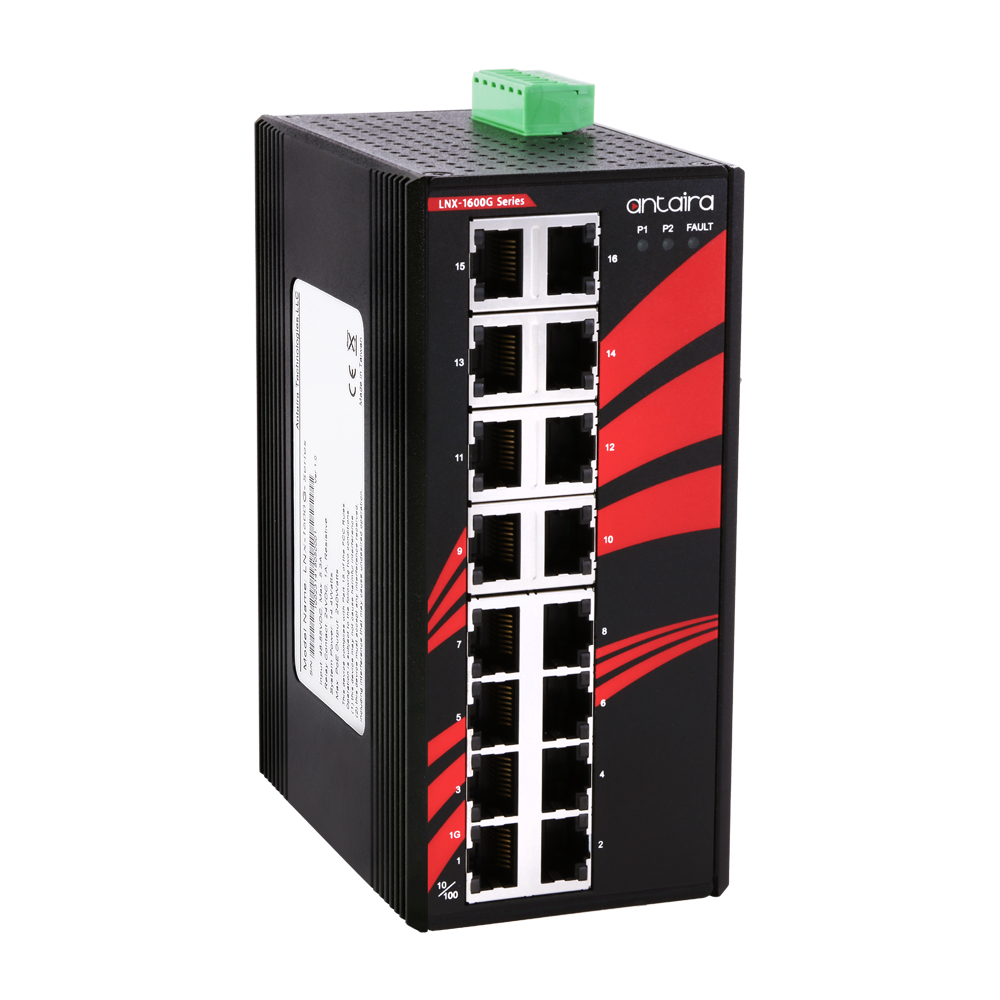

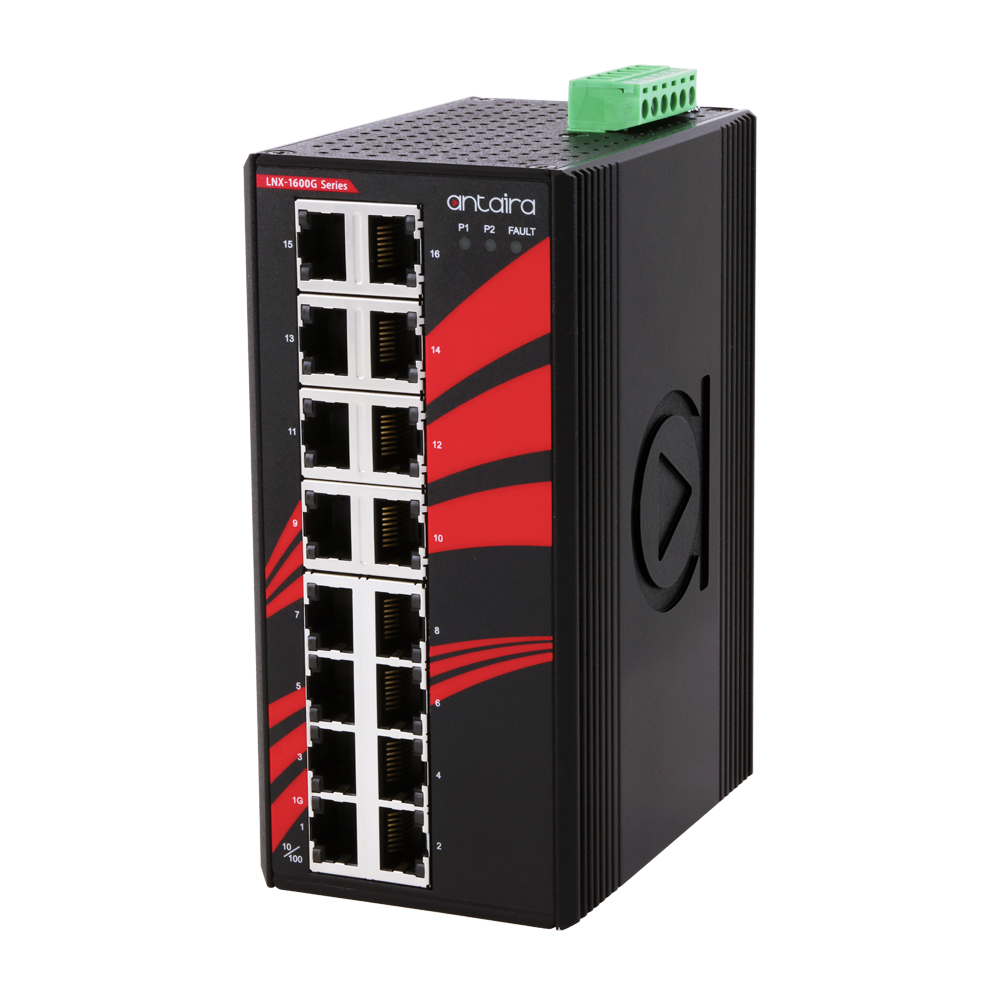

Ethernet Port |
16*10/100/1000T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
|
Flow Control |
IEEE 802.3x back pressure flow control |
|
Free Fall / Shock / Vibration |
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6 |
|
Green |
RoHS Compliant |
|
Housing |
Aluminum and Metal, IP30 protection |
|
Input Voltage |
12 to 48VDC, Redundant Inputs |
|
Jumbo Frame |
9,216bytes |
|
LED Indicators |
Power 1, Power 2, Fault
Ethernet Ports: On- Link / Flashing- Data transmitting |
|
MAC Table Size |
8K |
|
Memory Buffer |
512Kbytes |
|

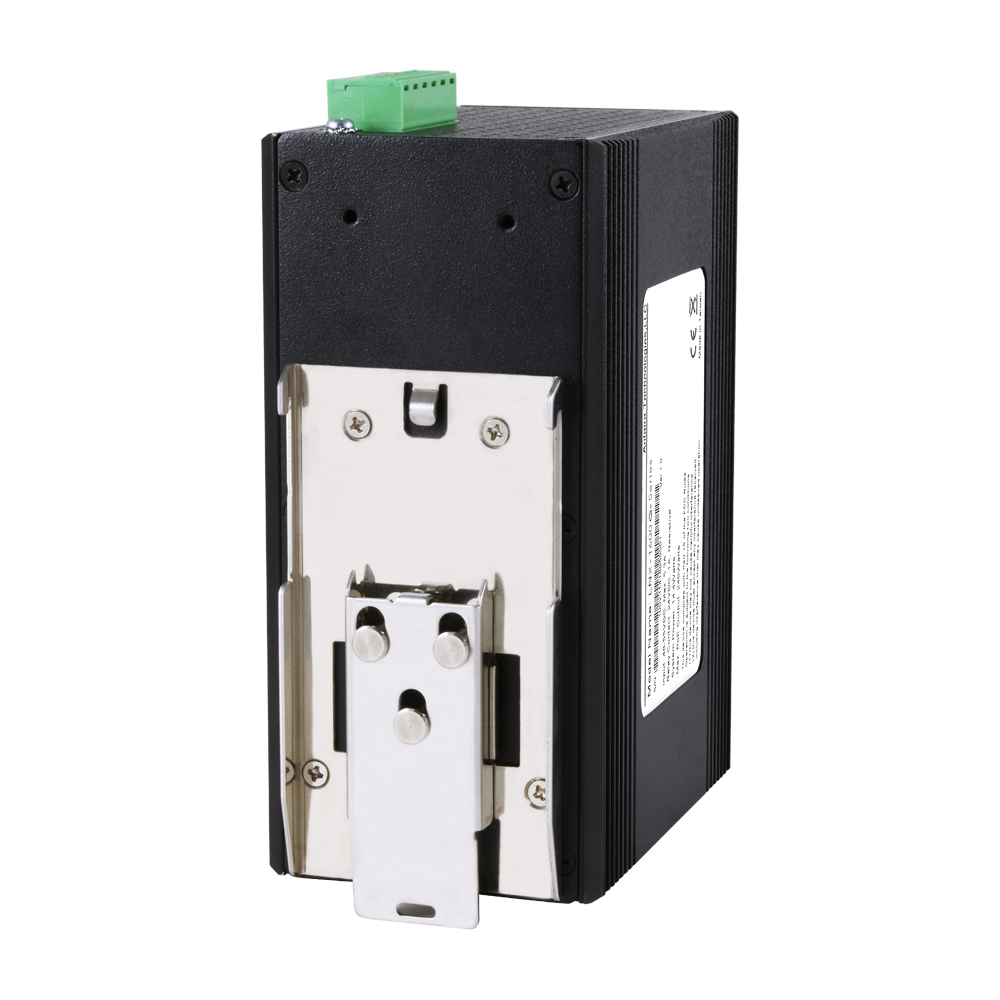

Mounting |
DIN-Rail, Wall Mounting (optional) |
|
Network Cable |
10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m)
100BaseTX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
1000BaseTX: UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m) |
|
Operating Temperature |
EOT: -40°C to 75°C |
|
Overload Current Protection |
Present |
|
Power Connection |
1 removable 6-contact terminal block |
|
Processing Type |
Store and Forward |
|
Processing Type |
Store and Forward |
|
Protocols |
CSMA/CD |
|
Relay Contact |
24VDC, 1A resistive |
|
Reverse Polarity Protection |
Present |
|
Standards |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000BaseT |
|
Storage Temperature |
EOT: -40°C to 85°C |
|
Switching Architecture |
Back-Plane: Non-Blocking Switching Fabric |
|
Transfer Rate |
14,880pps for Ethernet Port
148,800pps for Fast Ethernet Port
1,488,000pps for Gigabit Ethernet Port |
|
Warranty |
5 Years |
|
Weight |
Unit: 2.65 lbs.
Shipping: 3.09 lbs. |
