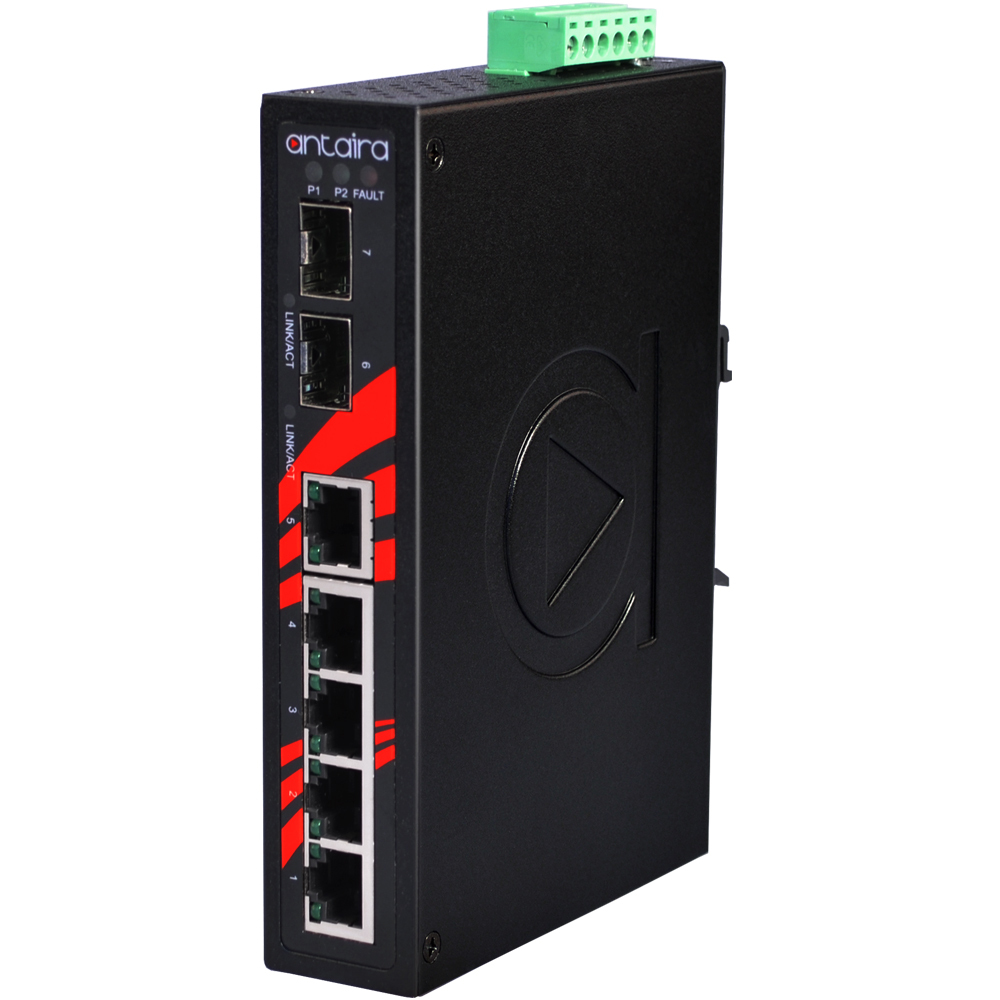

Switch: 5 x 10/100BaseT(X), 2 x SFP, -10 kuni 70°C, mittemanageeritav, DIN

Certifications FCC, CE, UL 61010-1, 61010-2-201, ISA 12.12.0, Class 1 Div 2
Dimensions 30 x 99 x 142 mm
Ethernet Port 5*10/100Tx Fast Ethernet
Fiber Port 2*100/1000 SFP Slot
Free Fall / Shock / Vibration IEC60068-2-32 / 2-27 / 2-6
Green RoHS Compliant
Housing Metal, IP30 protection
Input Voltage 12~48VDC, Redundant Input w/ 1*removable 6-contact terminal block
MAC Table Size 8K

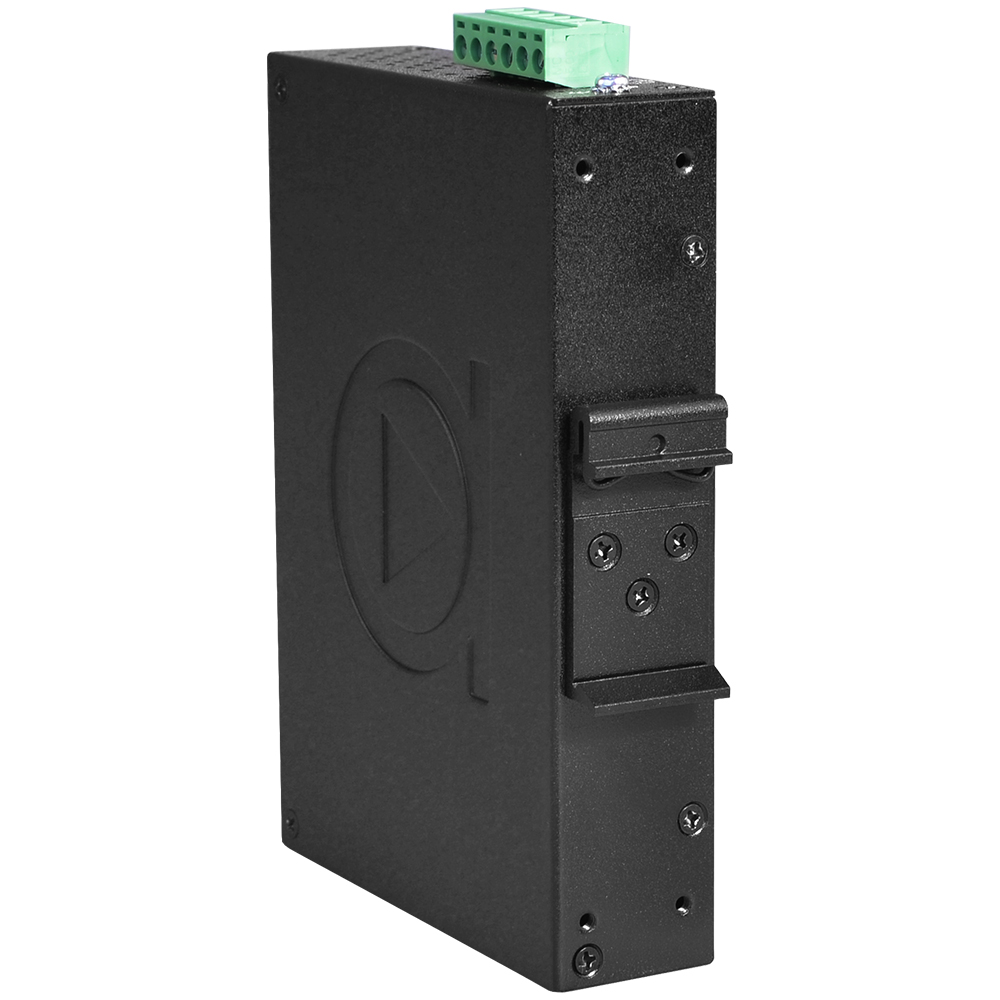

Mounting DIN-Rail, wall mounting (optional)
Operating Temperature STD: 0° to 70° C
Overload Current Protection Present
Power Consumption 6W
Reverse Polarity Power Protection Present
Standards IEEE 802.3, u, az
Switching Architecture Back-Plane (Switching Fabric): 10Gbps
Transfer Rate 14,880pps for Ethernet Port
148,800pps for Fast Ethernet Port
Warranty 5 Years
Weight Unit: 1.3 lbs.
Shipping: 1.7 lbs.
309,00 € 309,00 € (ilma km-ta)

  • Input voltage
  • Number of ports
  • Number of SFP ports
  • Speed of switch
  • Switch type
  • Temperature range
  • Total nr of ports
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
Antaira_LNX-0702C-SFP series_Datasheet-v1.3.pdf

Manufacturer Part Number: LNX-0702C-SFP
Tootekood: EE-100-170-024

Spetsifikatsioon

Speed of switch 10 100, 10 100 1000
Input voltage 12–48 VDC
Number of ports 5
Number of SFP ports 2
Switch type Unmanaged
Temperature range -10 to 70 °C
Total nr of ports 7
Weight 0.5 kg
