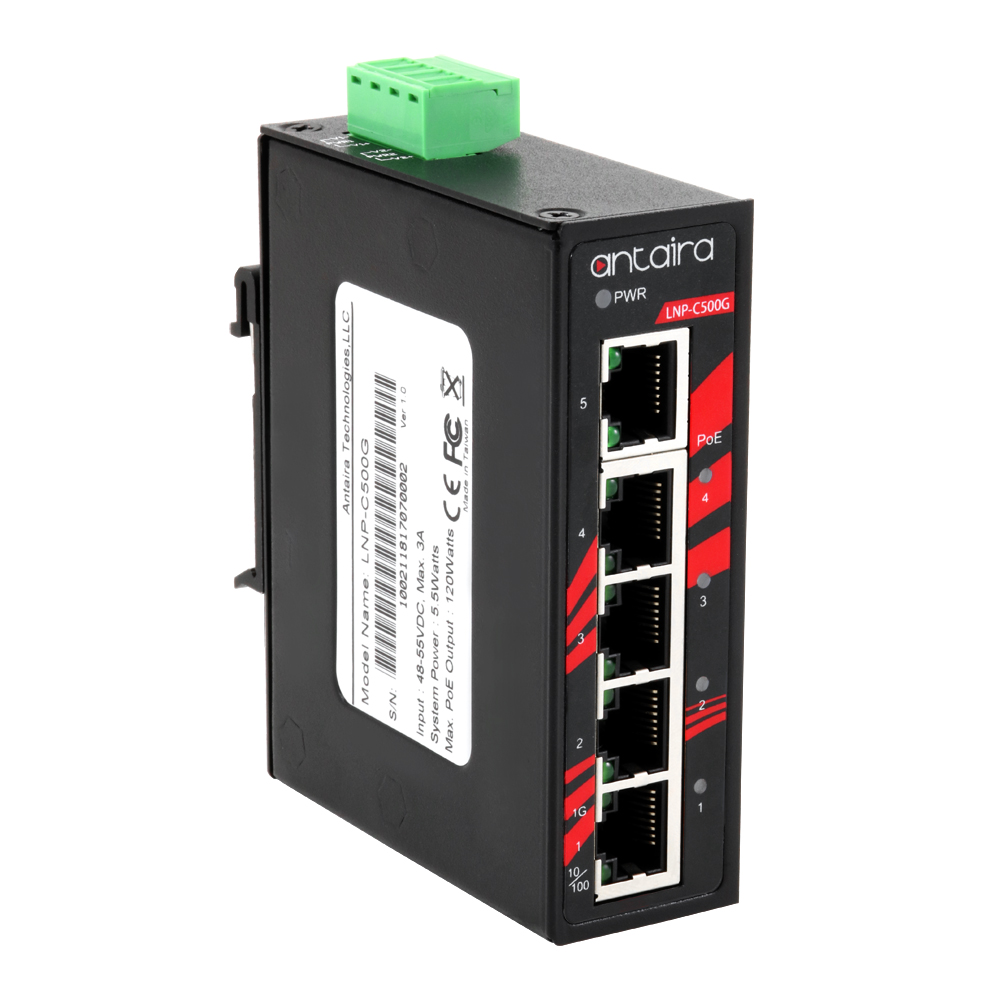

Switch: 4 x 10/100/1000BaseT(X) PoE+, 1 x 10/100/1000BaseT(X), kompaktne, -10 kuni 70°C, mittemanageeritav, DIN, 48-55VDC

Switch: 4 x 10/100/1000BaseT(X) PoE+, 1 x 10/100/1000BaseT(X), kompaktne, -10 kuni 70°C, mittemanageeritav, DIN, 48-55VDC

Ambient Relative Humidity	5 to 95% (non-condensing)
Certifications	FCC, CE
Dimensions	30 x 95 x 75mm (WHD)
EMI	FCC Part 15 Subpart B Class, CE EN 55022 Class A
EMS	EN 61000-6-2, EN 61000-6-4
Ethernet Port	510/100/1000BaseTx with 4PoE+, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control	IEEE 802.3x flow control, back pressure flow control
Free Fall / Shock / Vibration	IEC 60068-2-32 / IEC 60068-2-27 / IEC 60068-2-6

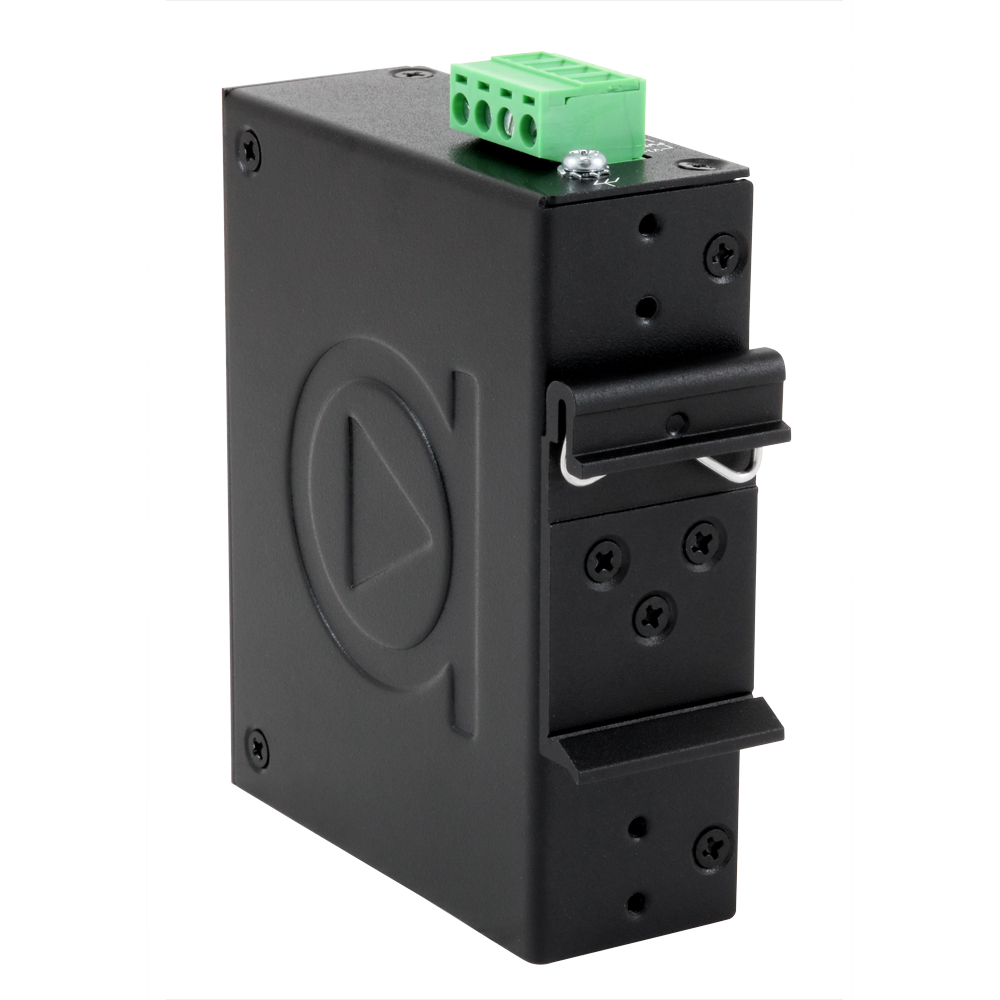

Housing / Mounting	Metal, IP30 rated / DIN-Rail; Wall-mount (optional)
Input Voltage	48~55VDC, Redundant Input
Jumbo Frame	10K bytes

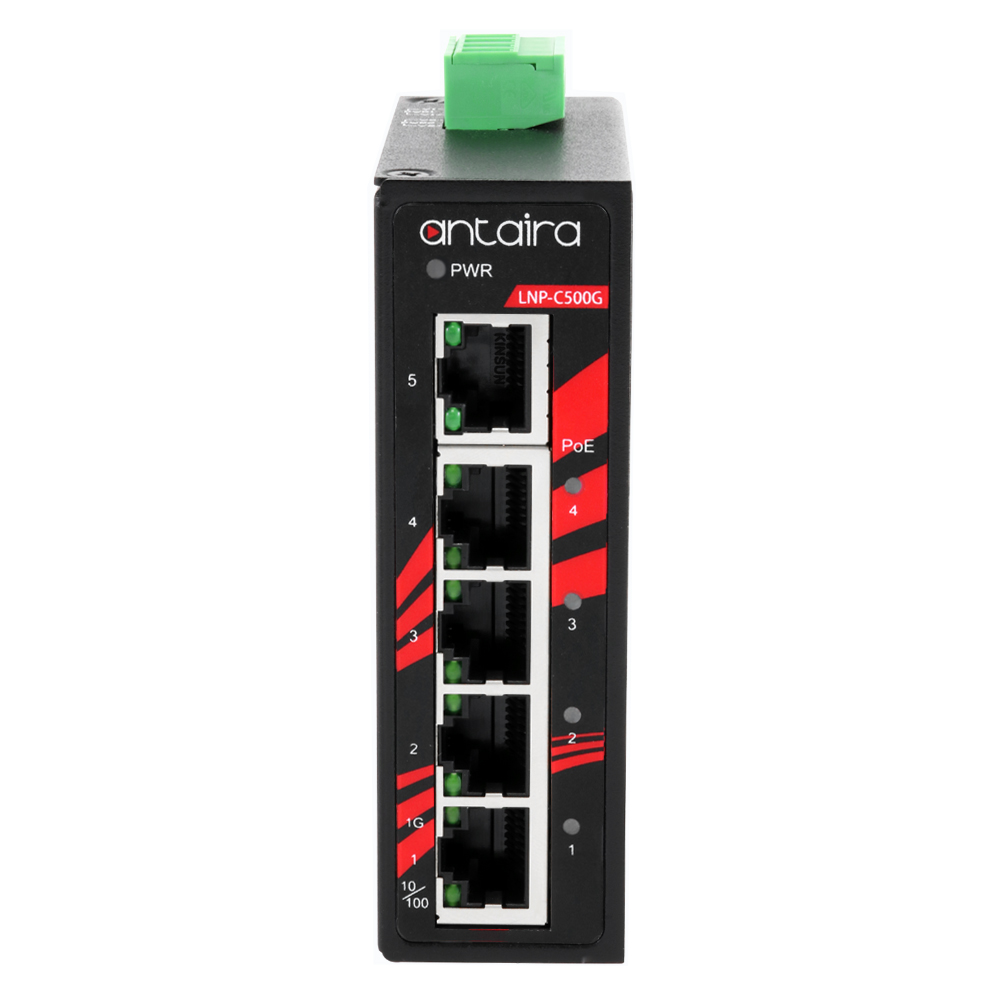

LED Indicators	Power Ethernet Ports: On - Link / Flash - data transmitting PoE: On - connected to PD devices
MAC Table Size	8K
Memory Buffer	1 Mbits
Operating Temperature	STD: -10°C to 70°C
Overload Current Protection	Present
Power Connection	1 removable 4-contact terminal block
Power Consumption	5.5 Watts for system
Processing Type	Store and Forward
Protocols	CSMA/CD
Reverse Polarity Protection	Present
Standards	IEEE 802.3 10Tx Ethernet IEEE 802.3U 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3af/at Power over Ethernet
Transfer Rate	14,880pps for 10Base-T Ethernet port 148,800pps for 100Base-T Fast Ethernet port 1,488,000pps for 1000Base-T Gigabit Ethernet Ethernet
Warranty	5 Years
Weight	Unit: 0.77 lb; Shipping: 0.99 lb

400,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_LNP-C500G series_Datasheet-v1.1.pdf

Manufacturer Part Number: LNP-C500G
Tootekood: EE-100-170-002

Spetsifikatsioon

Weight

0.35 kg
