Ambient Relative Humidity |
10% to 95%, (Non-condensing) |
|
Certifications |
FCC, CE, UL 61010-1, UL 61010-2-201 |
|
Combo Ports |
4*100/1000 SFP Slots |
|
Dimensions |
438 x 43.6 x 259.2mm (W x H x D) |
|
EMI |
CE FCC EN55022 Class A |
|
EMS |
IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field) |
|

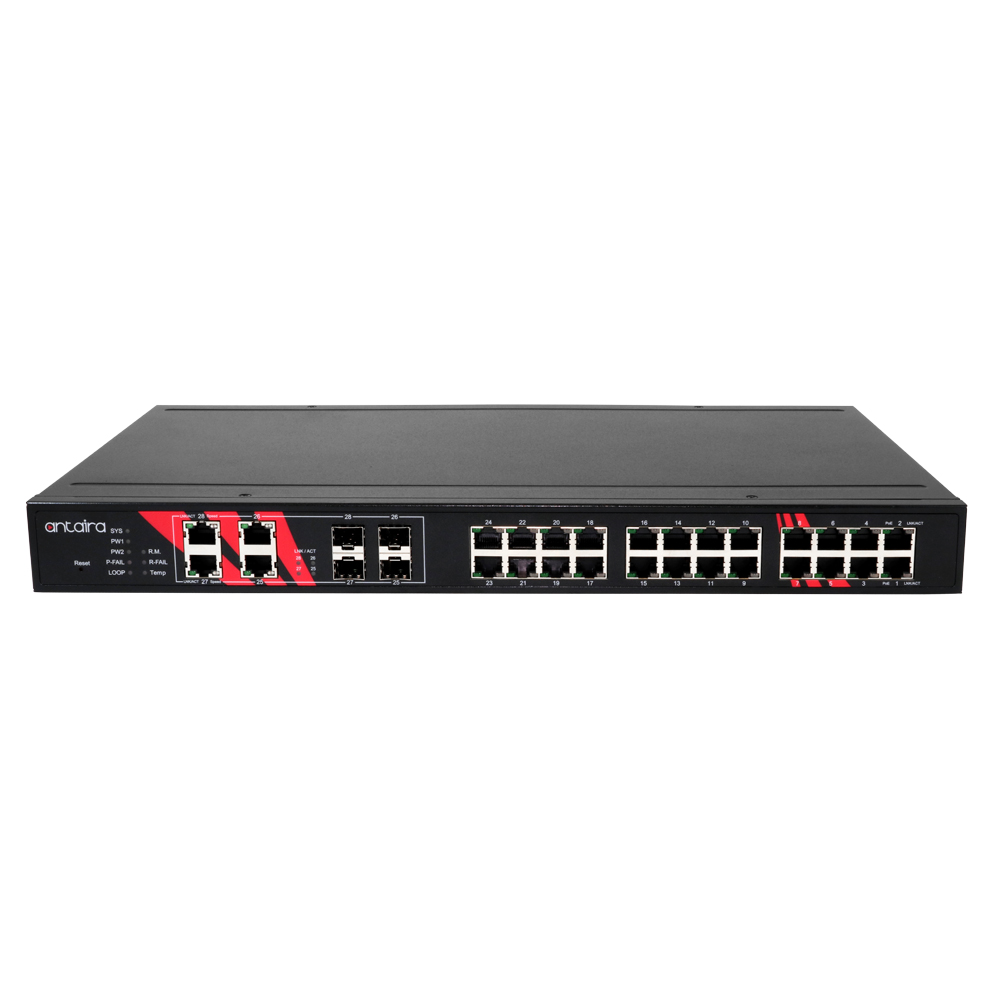

Ethernet Port |
24*RJ45 Port w/10/100/1000TX with PoE+, Auto Negotiation Speed, Full/Half Duplex Mode, and Auto MDI/MDI-X Connection |
|
Flow Control |
IGMP Snooping/Query for Multicast Group Management, Port Trunking, Static/802.3ad, LACP Rate Limit and Storm Control, IEEE 802.1p QoS CoS/TOS/DSCP Priority Queuing, IEEE 802.3x Flow Control |
|
Free Fall / Shock / Vibration |
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6 |
|

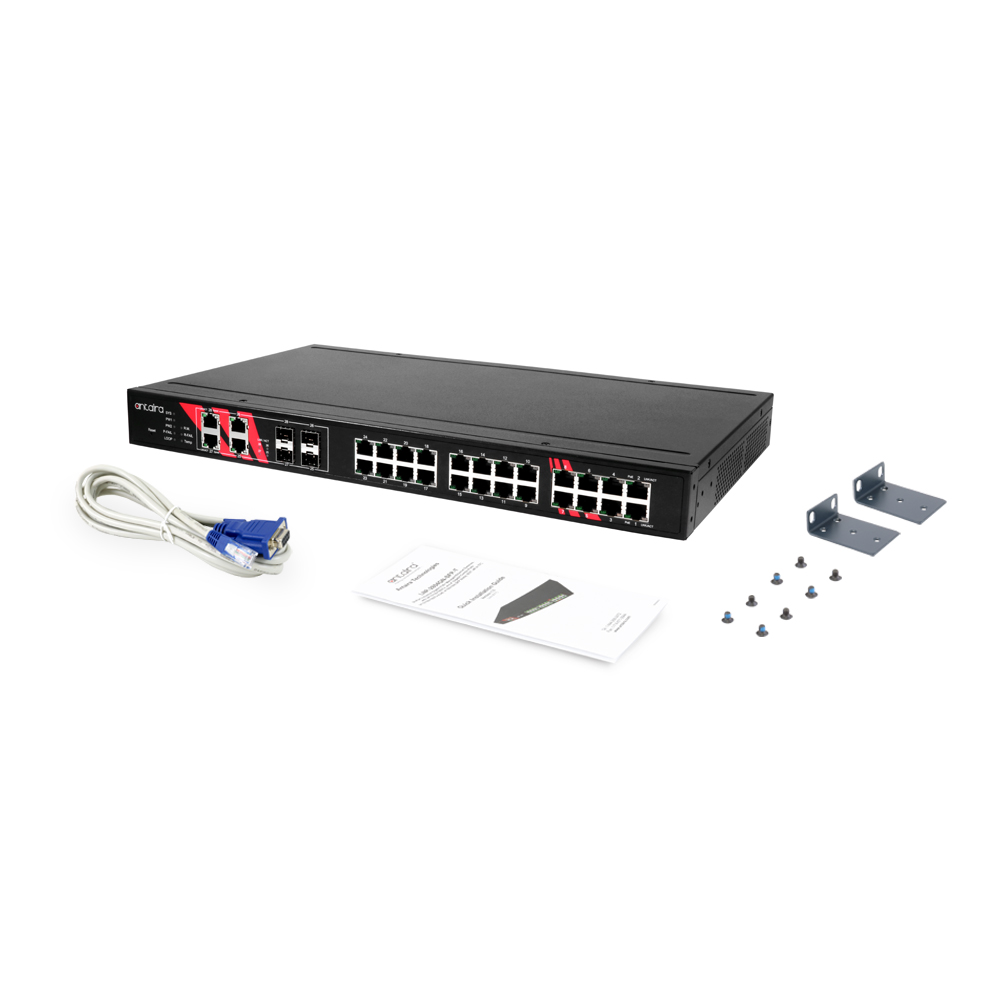

Housing / Mounting |
Metal, IP30 Protection / 1U 19" Rackmount |
|
Input Voltage |
46 to 57VDC, Redundant Inputs |
|
Jumbo Frame |
9216bytes |
|
LED Indicators |
10/100T (X): Link/Activity, Duplex/Collision Gigabit Copper: Link/Activity, Speed (1000Mbps) SFP: Link/Activity |
|
MAC Table Size |
8k |
|
Memory Buffer |
4.1Mbits |
|
Operating Temperature |
EOT: -40° to 75°C |
|

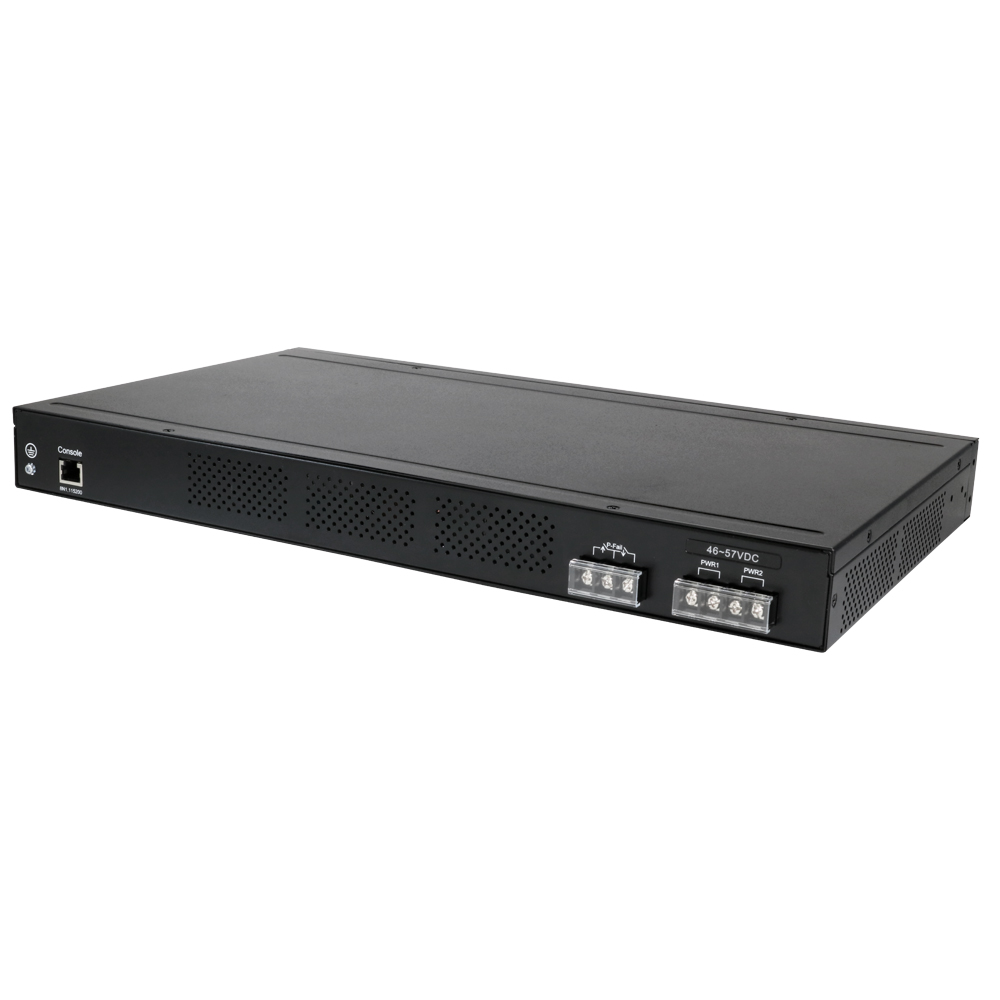

Power Connection |
4-Pin Terminal Block |
|
Power Consumption |
20 Watts for System |
|
Processing Type |
Store and Forward |
|
Protocols |
Web browser, Telnet, Serial Console, TFTP, SNMPv1/v2c/v3, Port Speed/Duplex Configuration, IPv6, IEEE 802.1Q, GVRP, Port-based VLAN, Proprietary Ring, 802.1w/D RSTP/STP, IP Access Security, Port Security, DHCP Client, Port and IP Binding, 802.1X Port Access Control |
|
Standards |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3u 100Base-FX Fast Fiber
IEEE 802.3z 1000Base-X Gigabit Fiber
IEEE 802.3af/at Power over Ethernet |
|
Storage Temperature |
-40° to 85°C |
|
Warranty |
5 Years |
|
Wavelength |
Depends on SFP Modules |
|
Weight |
Unit: 8.37lbs. |
