Ambient Relative Humidity |
5 to 95%, (non-condensing) |
|
Certifications |
FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2 |
|
Dimensions |
46mm (W) x 99mm (D) x 142mm (H) |
|
EMI |
FCC Class A |
|
EMS |
EN6100-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11, 4-12, 6-2, 6-4 |
|

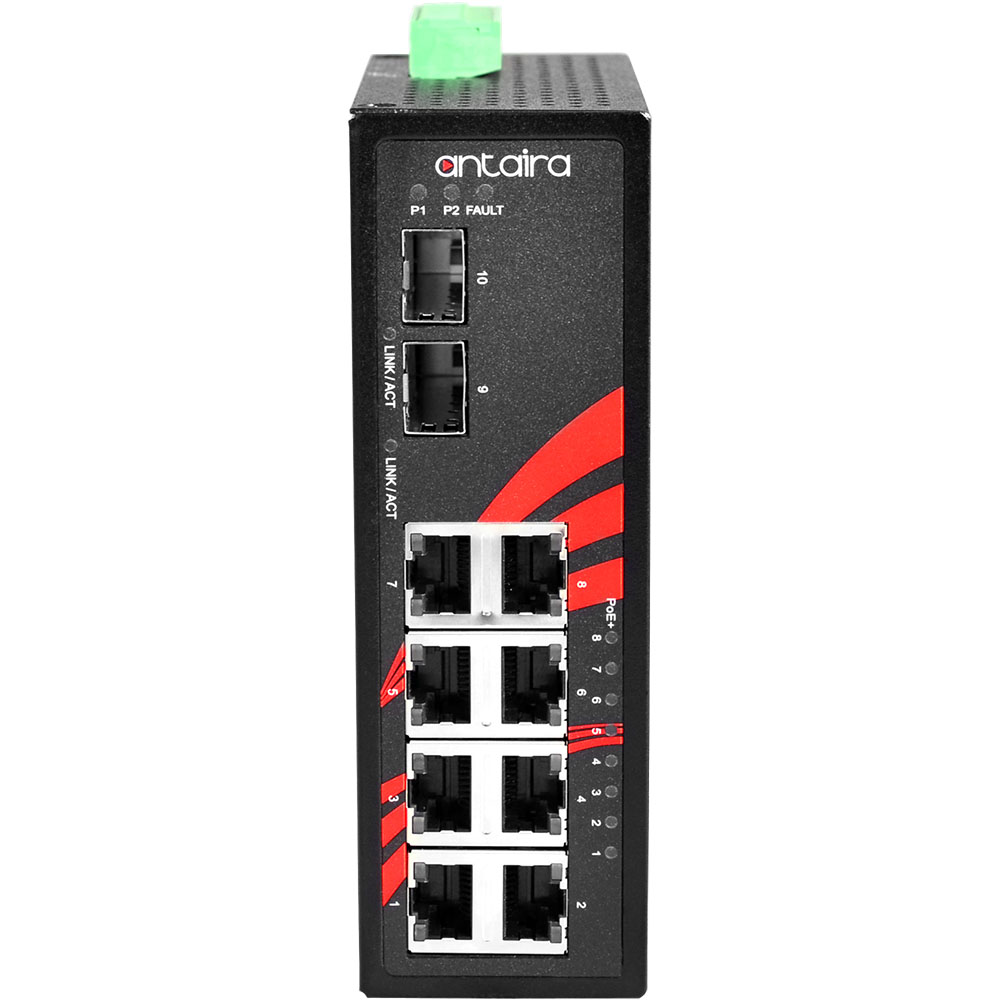

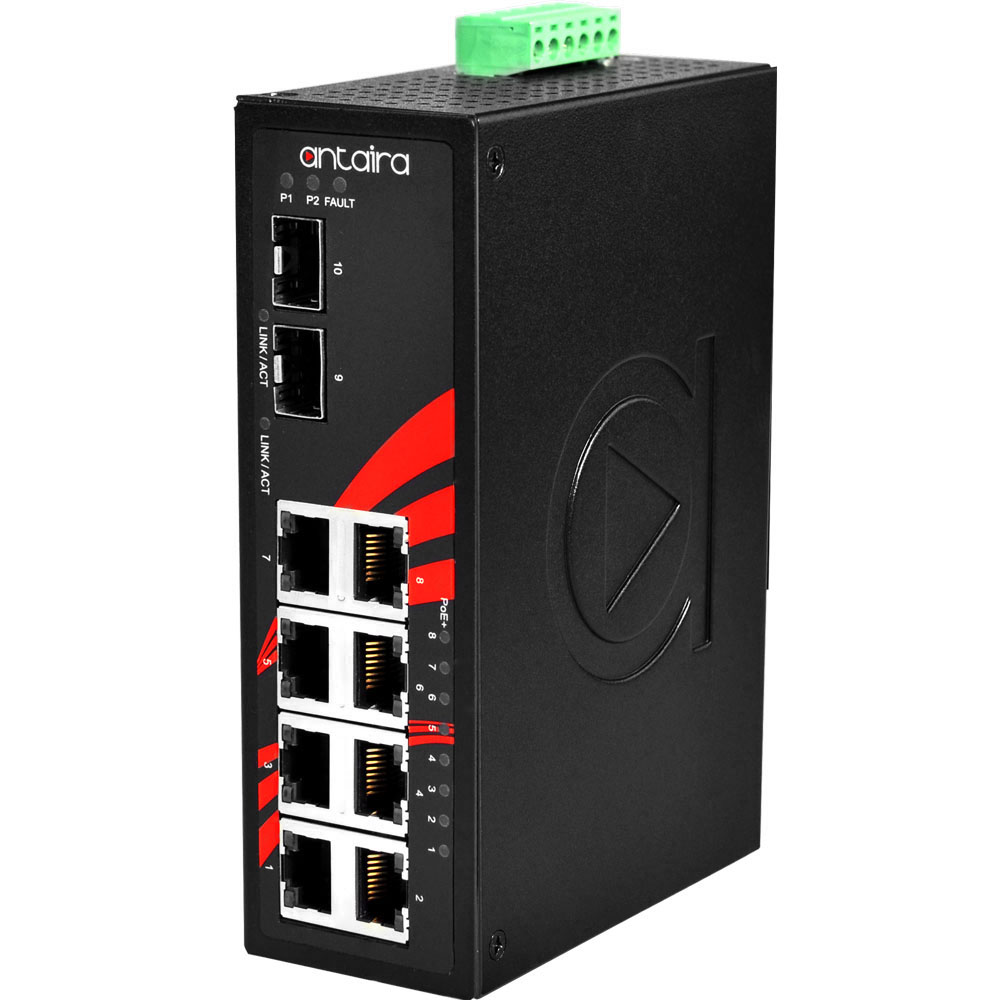

Ethernet Port |
8*RJ45 Ports with 10/100/1000Tx (PSE 30W/Port), auto MDI/MDI-X connection + 2*100/1000 SFP Slot |
|
Free fall / Shock / Vibration |
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6 |
|
Green |
RoHS Compliant |
|

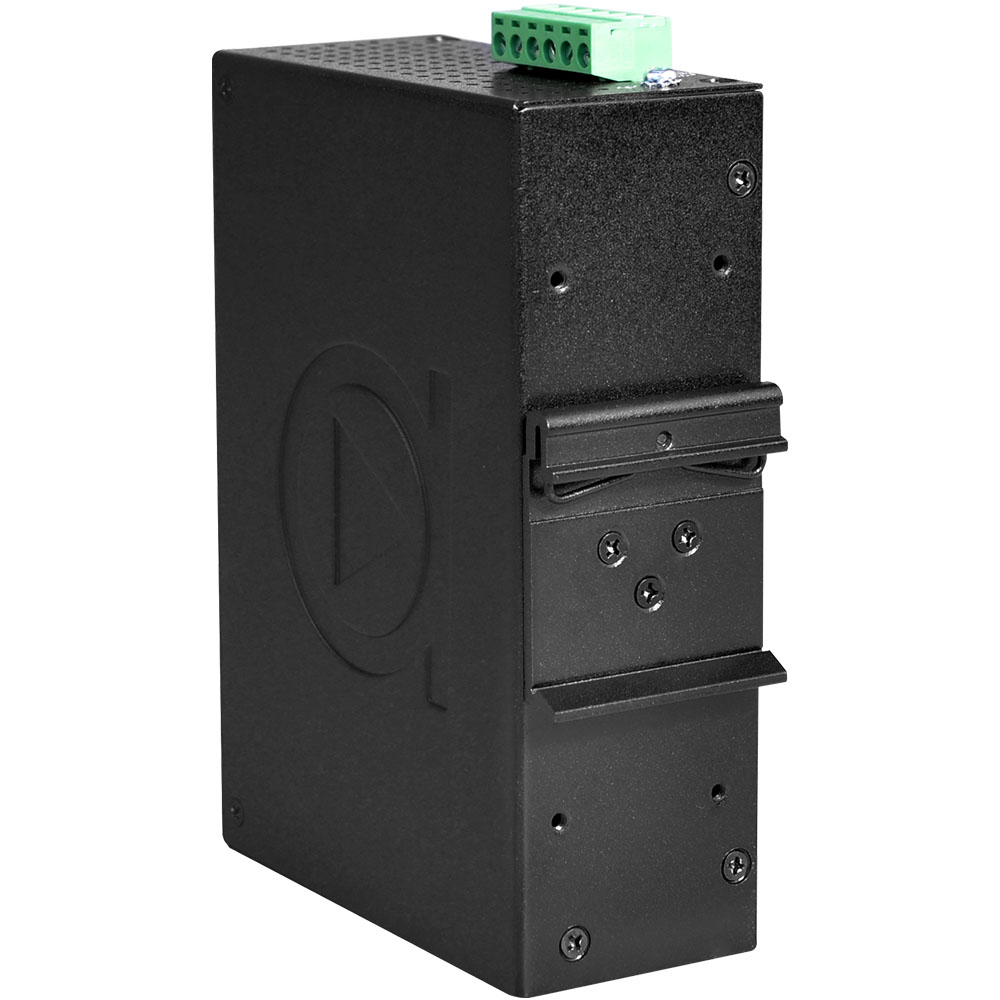

Housing |
Metal, IP30 protection, Din-Rail Mounting (wall mounting bracket also included) |
|
Input Voltage |
12~36VDC, Redundant Input (w/ 1 removable 6-contact terminal block) |
|
Jumbo Frame |
9.6 Kbytes |
|
MAC Table Size |
8K |
|
Operating Temperature |
-10° to 70° C (14° to 158° F) |
|
Overload Current Protection |
Present |
|
PoE Pin Out |
V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A) |
|
Power Consumption |
145 Watts @12V; 200 Watts @24V; Full Load with PoE Function |
|
Reverse Polarity Protection |
Yes |
|
Standards |
IEEE 802.3, 3u, 3ab, 3az, 3at |
|
Storage Temperature |
-40°C ~ 85°C (-40°F ~ 185°F) |
|
Switching Architecture |
Back-Plane (Switching Fabric): 20Gbps |
|
Transfer Rate |
Up to 1.0Gbps for Gigabit Ethernet port |
|
Warranty |
5 years |
|
Weight |
Unit Weight: 1.5-lbs
Shipping Weight: 2 lbs |
