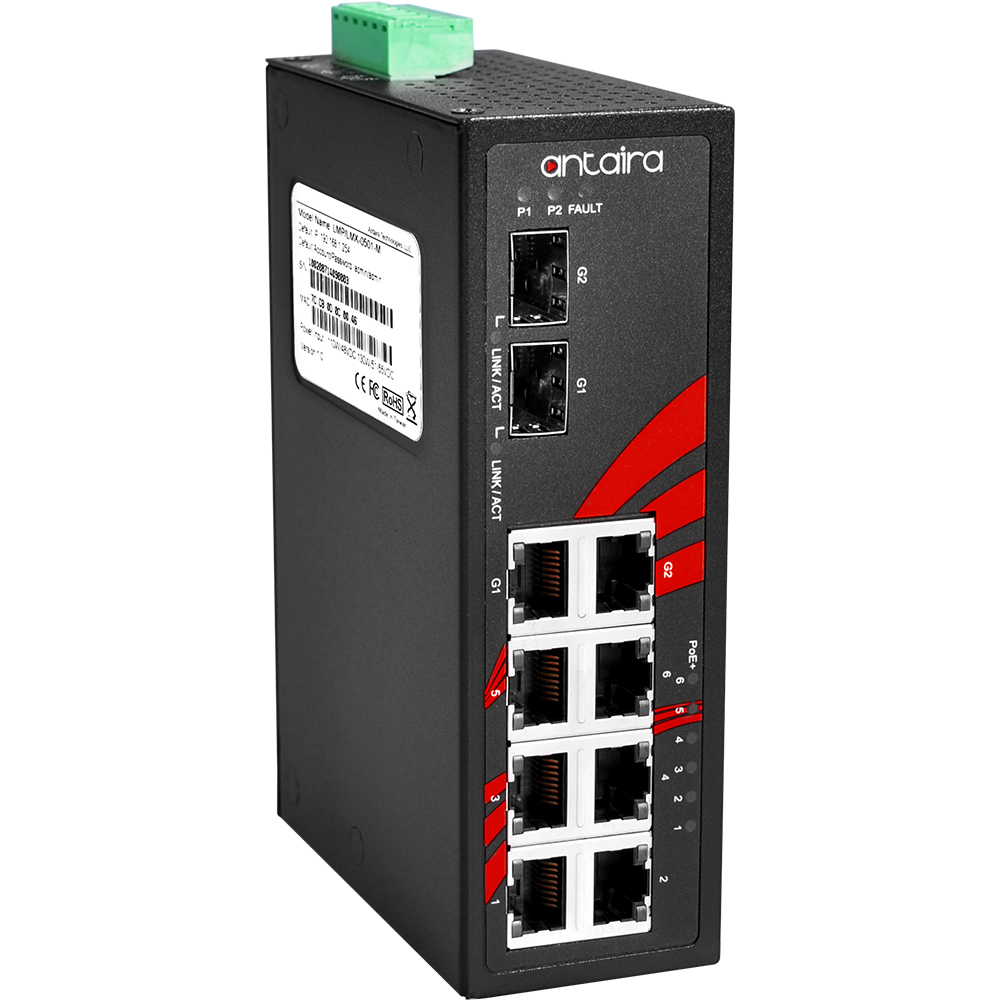

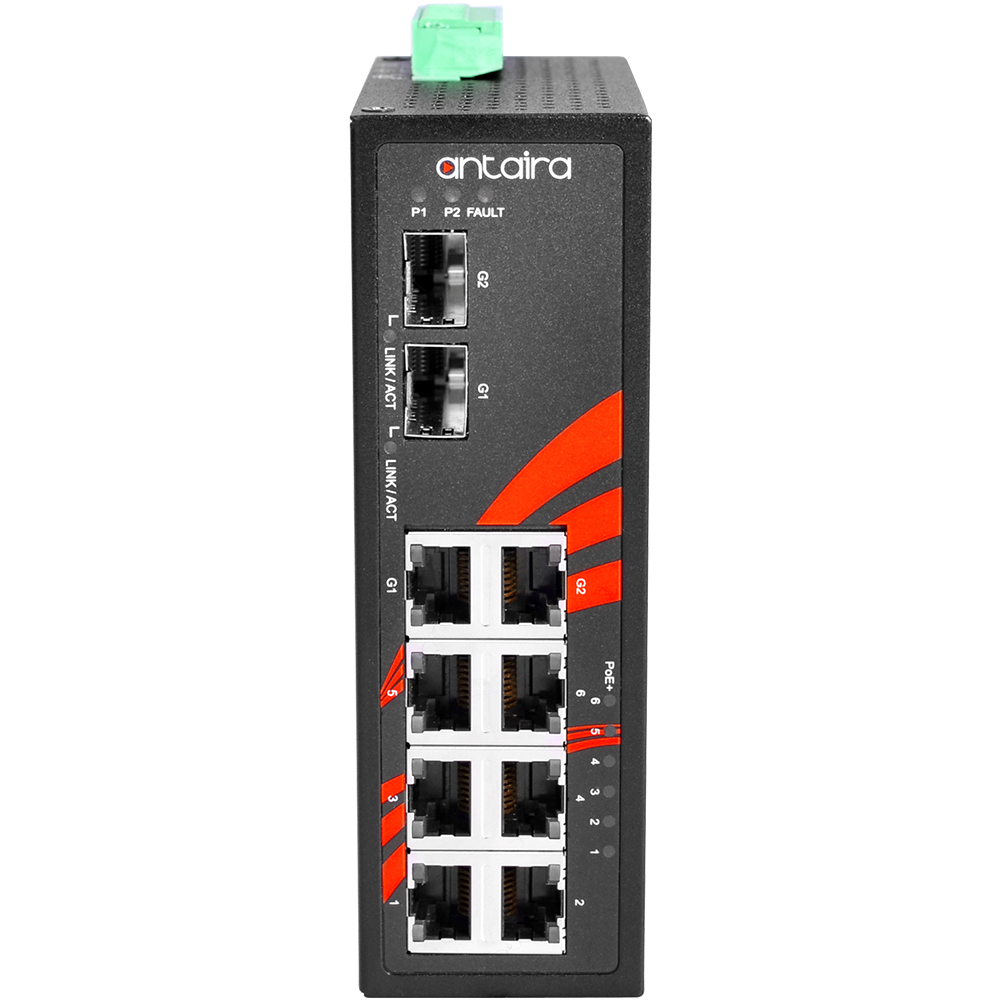

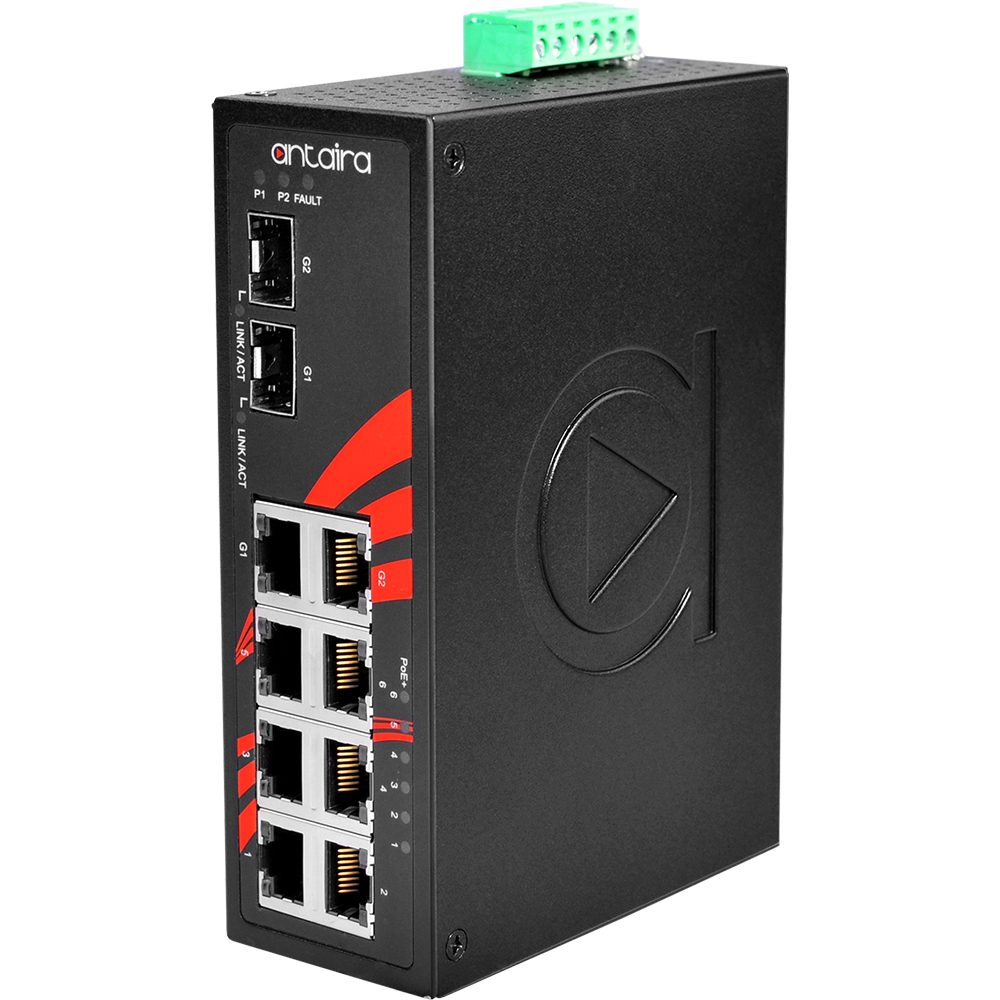

Switch: 6 x 10/100BaseT(X) PoE+, 2 x 10/100/1000BaseT(x) / 2 x SFP, -40 kuni 80°C, mittemanageeritav, DIN, 48-55VDC

Switch: 6 x 10/100BaseT(X) PoE+, 2 x 10/100/1000BaseT(x) / 2 x SFP, -40 kuni 80°C, mittemanageeritav, DIN, 48-55VDC

Certifications	FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
Combo Ports	2 RJ45 Ports w/10/100/1000TX Ethernet and 2100/1000 SFP Slot for Fiber
Dimensions	46 x 99 x 142 mm
Ethernet Port	6*RJ45 Ports w/10/100Tx (PSE 30W/Port)
Free Fall / Shock / Vibration	IEC60068-2-32 / 2-27 / 2-6
Housing	Metal, IP30 protection
Input Voltage & Connection	48~55VDC, Redundant Input w/ 1 removable 6-contact terminal block
Mounting	DIN-Rail, wall mounting (optional)
Operating Temperature	EOT: -40° to 75° C
Overload Current Protection	Present
Poe Pin Assignment	V+, V+, V-, V- for pin s 1,2,3,6 Endspan, MDI Alternative A
Power Consumption	160 Watts @ 48V 190 Watts @ 51-55V (Full Load w/ PoE)
Protocols	CSMA/CD
Reverse Polarity Power Protection	Present
Standards	IEEE 802.3, u, ab, az, at
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Warranty	5 Years
Weight	Unit: 1.5 lbs. Shipping: 2.0 lbs.

627,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_LNP-0802C-SFP series_Datasheet-v1.2.pdf

Manufacturer Part Number: LNP-0802C-SFP-T
Tootekood: EE-100-169-970

Spetsifikatsioon

Weight

0.68 kg
