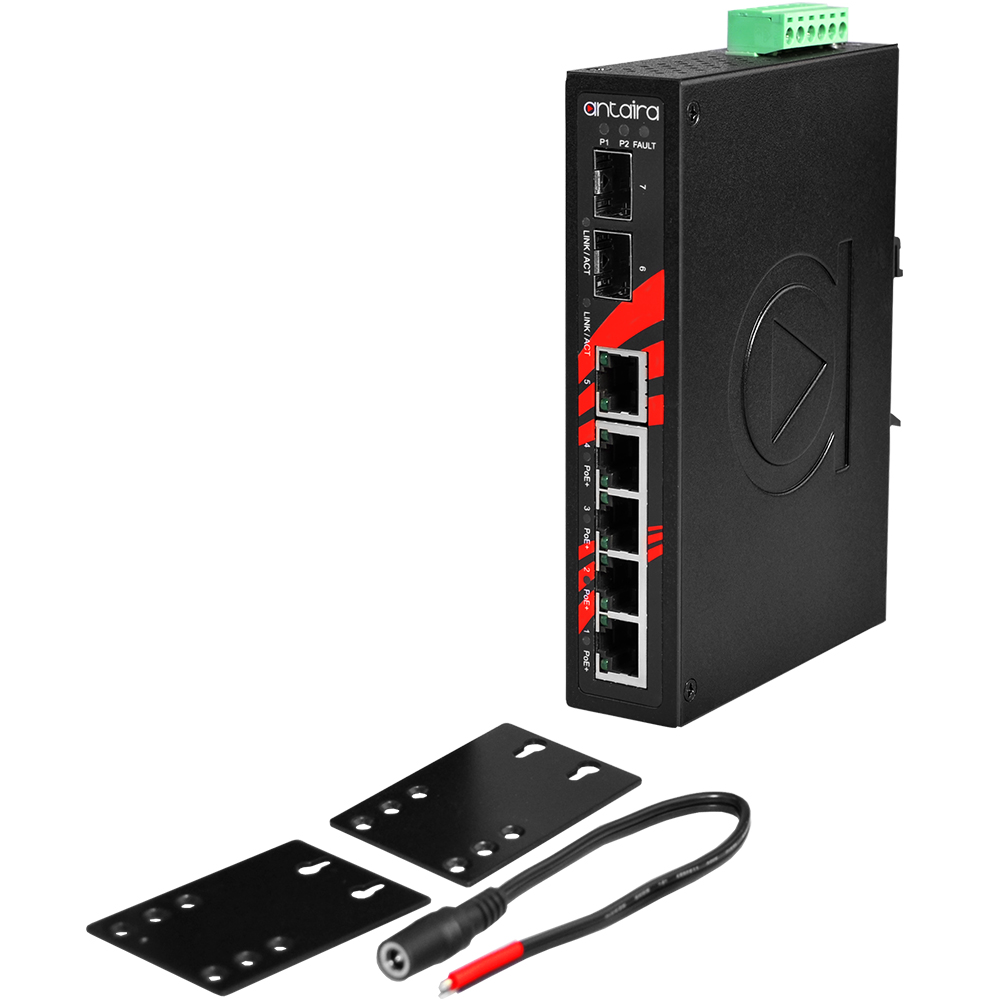

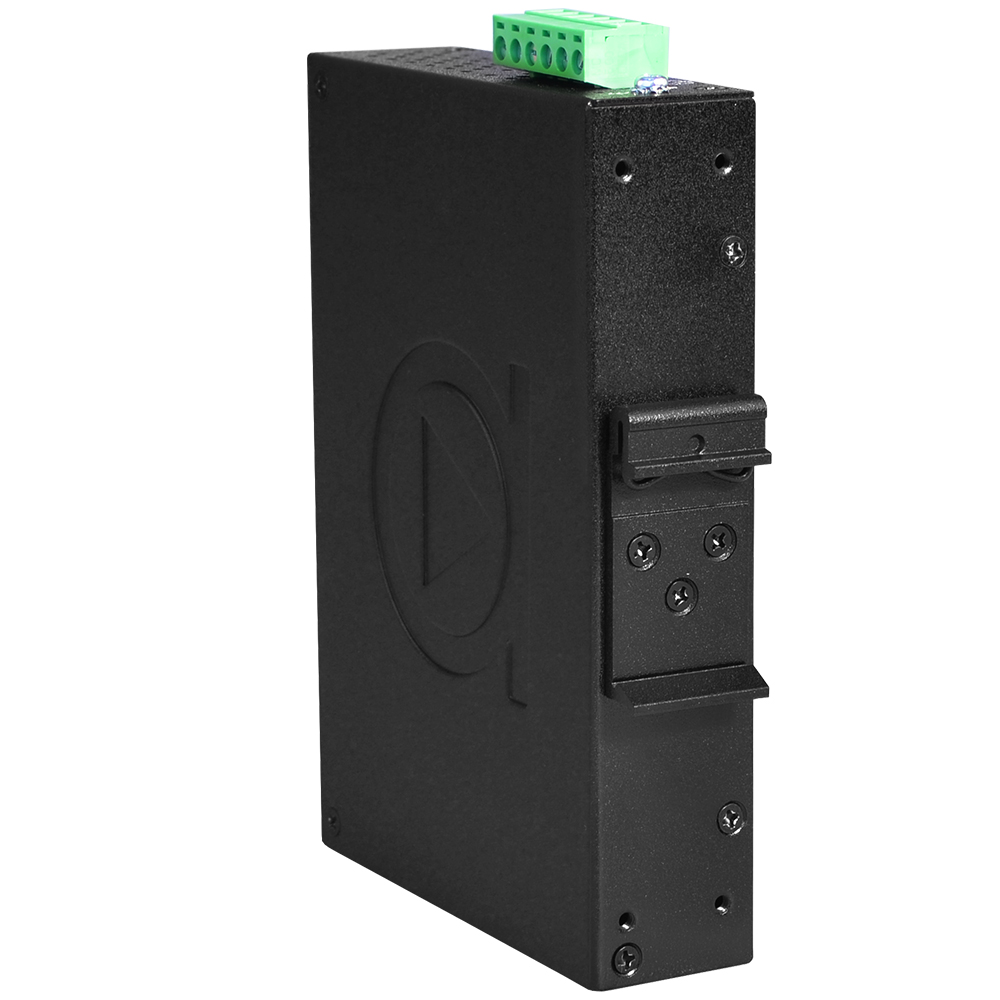

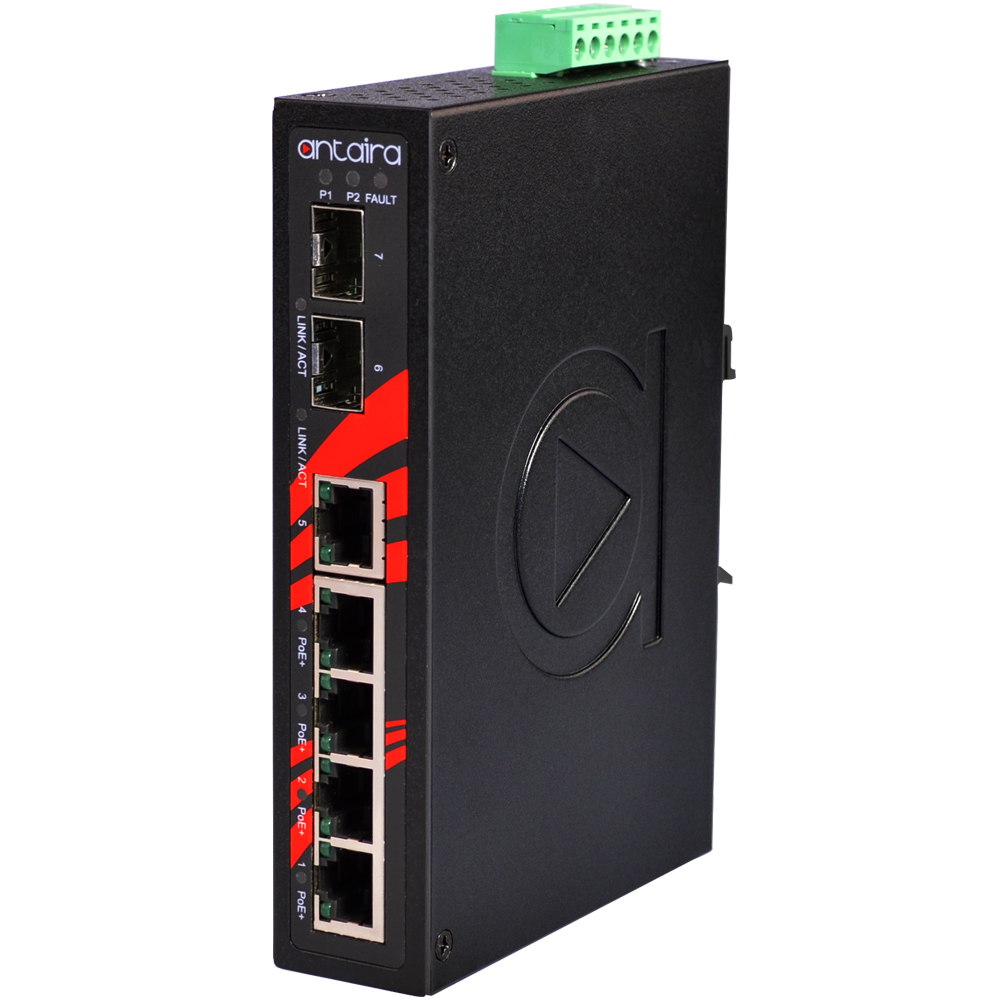

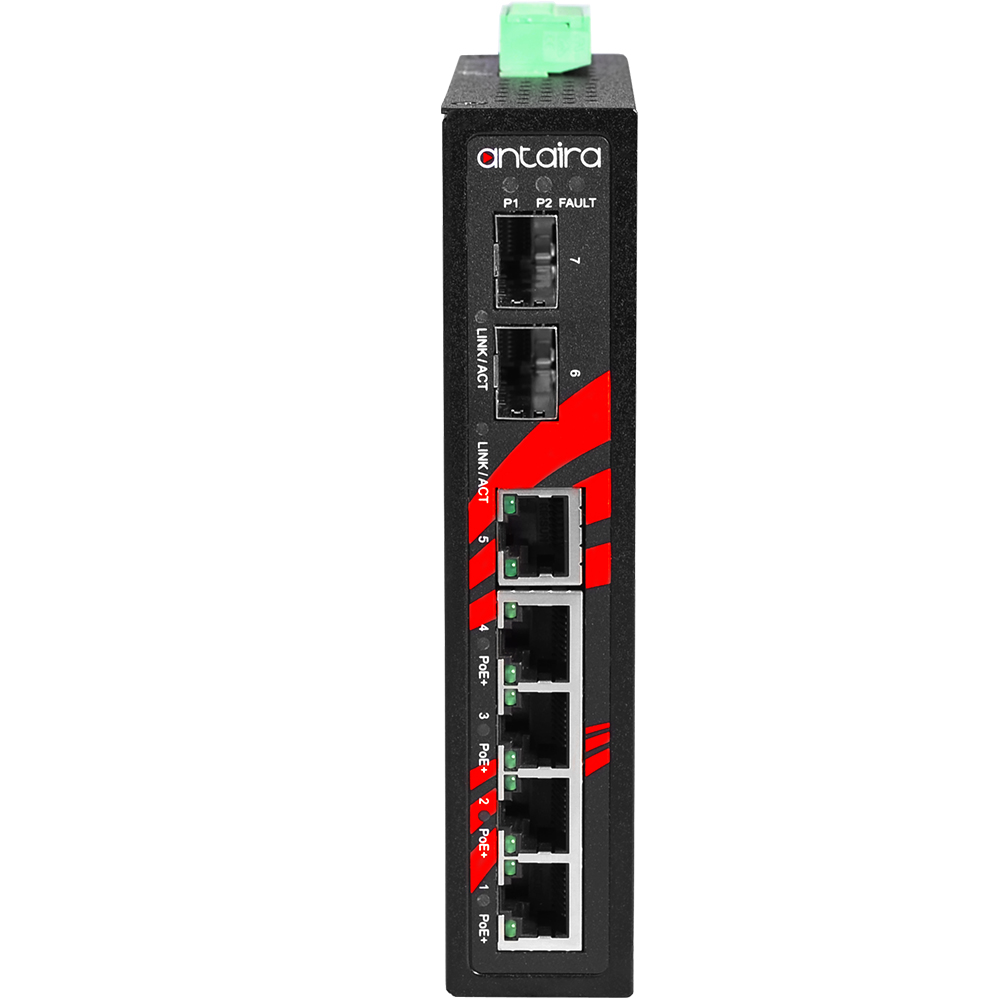

Switch: 4 x 10/100BaseT(X) PoE+, 1 x 10/100BaseT(x) / 2 x SFP, -40 kuni 80°C, mittemanageeritav, DIN, 48-55VDC

Switch: 4 x 10/100BaseT(X) PoE+, 1 x 10/100BaseT(x) / 2 x SFP, -40 kuni 80°C, mittemanageeritav, DIN, 48-55VDC

Certifications	FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
Dimensions	30 x 99 x 142 mm
Ethernet Port	5RJ45 Ports w/ 410/100Tx (PSE 30W/Port), and 1*10/100Tx
Fiber Port	2*100/1000 SFP Slots
Free Fall / Shock / Vibration	IEC60068-2-32 / 2-27 / 2-6
Green	RoHs Compliant
Housing	Metal, IP30 protection
Input Voltage	48~55VDC, Redundant Input w/ 1*removable 6-contact terminal block
MAC Table Size	8K
Operating Temperature	EOT: -40° to 75° C
Overload Current Protection	Present
PoE Pin Out	V+, V+, V-, V- for pins 1,2,3,6 Endspan, MDI Alternative A
Power Consumption	110 Watts @ 48V 130 Watts @ 51-55V (Full Load)
Reverse Polarity Power Protection	Present
Standards	IEEE 802.3, u, az, at
Switching Architecture	Back Plane (Switching Fabric): 10Gbps
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port
Warranty	5 Years
Weight	Unit: 1.3 lbs. Shipping: 1.7 lbs.

447,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_LNP-0702C-SFP series_Datasheet-v1.2.pdf

Manufacturer Part Number: LNP-0702C-SFP-T
Tootekood: EE-100-169-957

Spetsifikatsioon

Weight

0.5 kg
