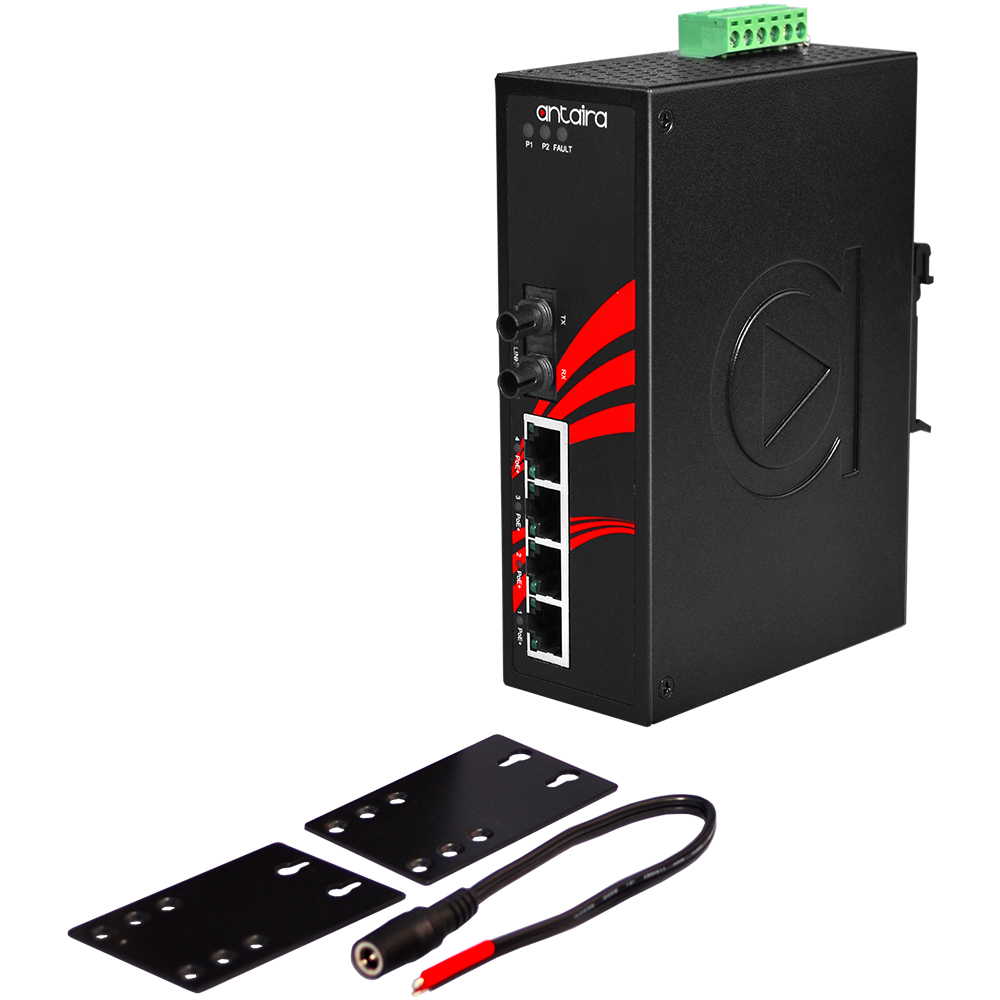

Switch: 4 x 10/100BaseT(X) PoE, 1 x 100BaseFX multi-mode ST, -10 kuni 70°C, mittemanageeritav, DIN, 12-36VDC

Switch: 4 x 10/100BaseT(X) PoE, 1 x 100BaseFX multi-mode ST, -10 kuni 70°C, mittemanageeritav, DIN, 12-36VDC

Certifications	FCC, CE, UL/cUL 508, ISA 12.12.01, Class 1 Div 2
Dimensions	46 x 142 x 99 mm
EMI	FCC Class A
EMS	IEC6100-4-2,3,4,5,6,8 / IEC6100-6-2,4
Ethernet Port	4*RJ45 Ports w/10/100Tx (PSE: 30W/Port)
Fiber Port	1*100Fx (ST); Multi-mode 2Km
Free Fall / Shock / Vibration	IEC60068-2-32 / 27 / 6
Green	RoHS Compliant
Housing / Mounting	Metal, IP30 Protection, DIN-Rail or Wall Mounting
Humidity	5 to 95%, (non-condensing)
Input Voltage & Connection	12~36VDC, 6-Pin Terminal Block Redundant Input
MAC Table Size	2K
Operating Temperature	STD: -10 to 70°C
Overload Current Protection	Present
PoE Pin Out	V+, V+, V-, V- for pin s 1,2,3,6 Endspan, MDI Alternative A
Power Consumption	145W @12~36VDC
Reverse Polarity Power Protection	Present
Standards	IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3x Flow Control and Back-Pressure IEEE 802.3at Power over Ethernet
Storage Temperature	-40°C ~ 85°C
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port
Warranty	5 Years
Wavelength	1310nm
Weight	Unit: 1.68 lbs; Shipping: 2.0 lbs

463,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_LNP-0501-24 series_Datasheet-v2.1.pdf

Manufacturer Part Number: LNP-0501-ST-M-24
Tootekood: EE-100-169-943

Spetsifikatsioon

Weight

0.76 kg
