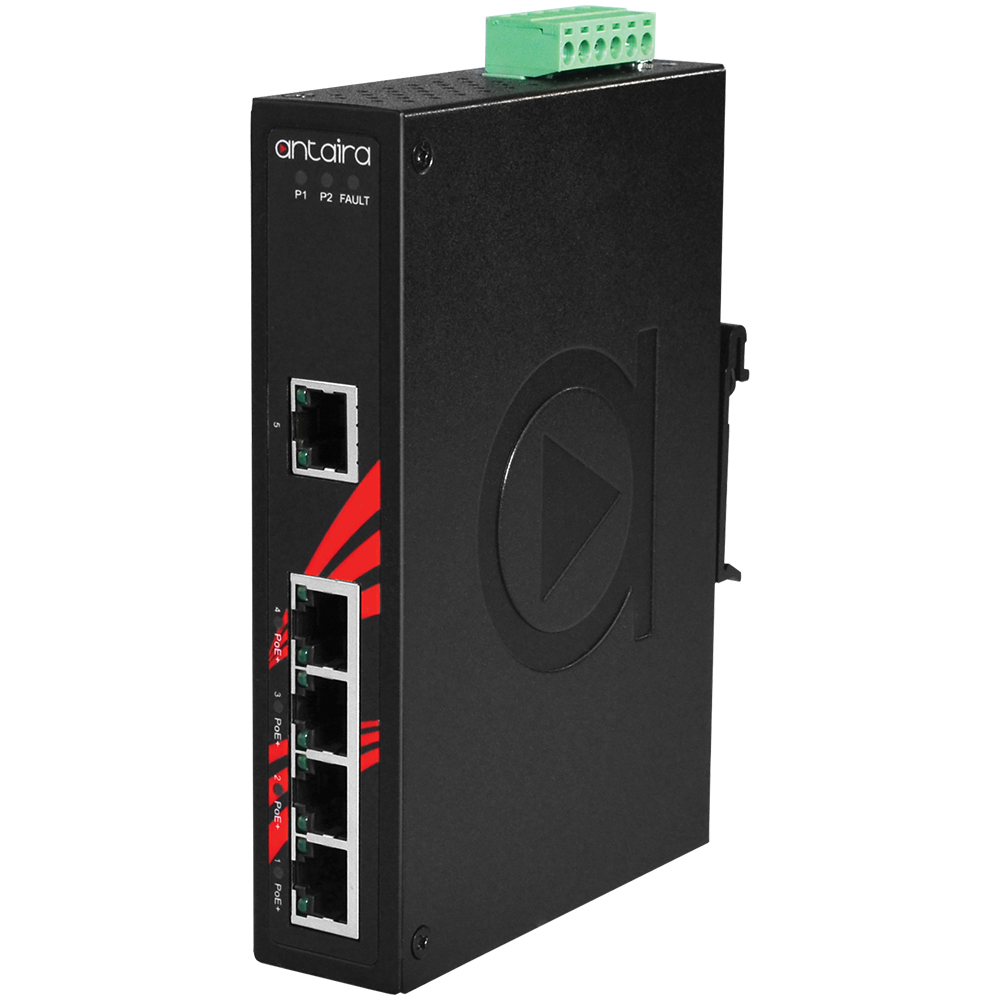

Switch: 4 x 10/100/1000BaseT(X) PoE+, 1 x 10/100/1000BaseT(X), -40 kuni 80°C, mittemanageeritav, DIN, 48-55VDC

Switch: 4 x 10/100/1000BaseT(X) PoE+, 1 x 10/100/1000BaseT(X), -40 kuni 80°C, mittemanageeritav, DIN, 48-55VDC

Certifications	FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
Dimensions	30 x 142 x 99 mm
Ethernet Port	410/100/1000Tx (PSE: 30W/Port) +110/100/1000 auto negotiation speed, Full/Half duplex mode, and auto MDI connection
Flow Control	IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration	IEC60068-2-32, 2-27, 2-6
Green	RoHS Compliant
Housing / Mounting	Metal IP30 rated/DIN-Rail; Wall-Mount (optional)
Input Voltage & Connection	48~55VDC Redundant Input w/ 1 removable 6-contact terminal block
Jumbo Frame	10.0K
Operating Temperature	EOT: -40 to 75°C
Overload Current Protection	Present
PoE Pin Out	V+, V+, V-, V- for pin s 1,2,3,6 Endspan, MDI Alternative A
Power Consumption	110Watts@48V 130Watts@51-55V
Power Reverse Polarity Protection	Present
Processing Type	Store and Forward
Protocols	CSMA/CD
Standards	IEEE 802.3, u, ab, at, af
Warranty	5 Years
Weight	Unit: 1.1 lbs.; Shipping: 1.6 lbs.

430,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_LNP-0500G series_Datasheet-v1.2.pdf

Manufacturer Part Number: LNP-0500G-T
Tootekood: EE-100-169-932

Spetsifikatsioon

Weight

0.5 kg
