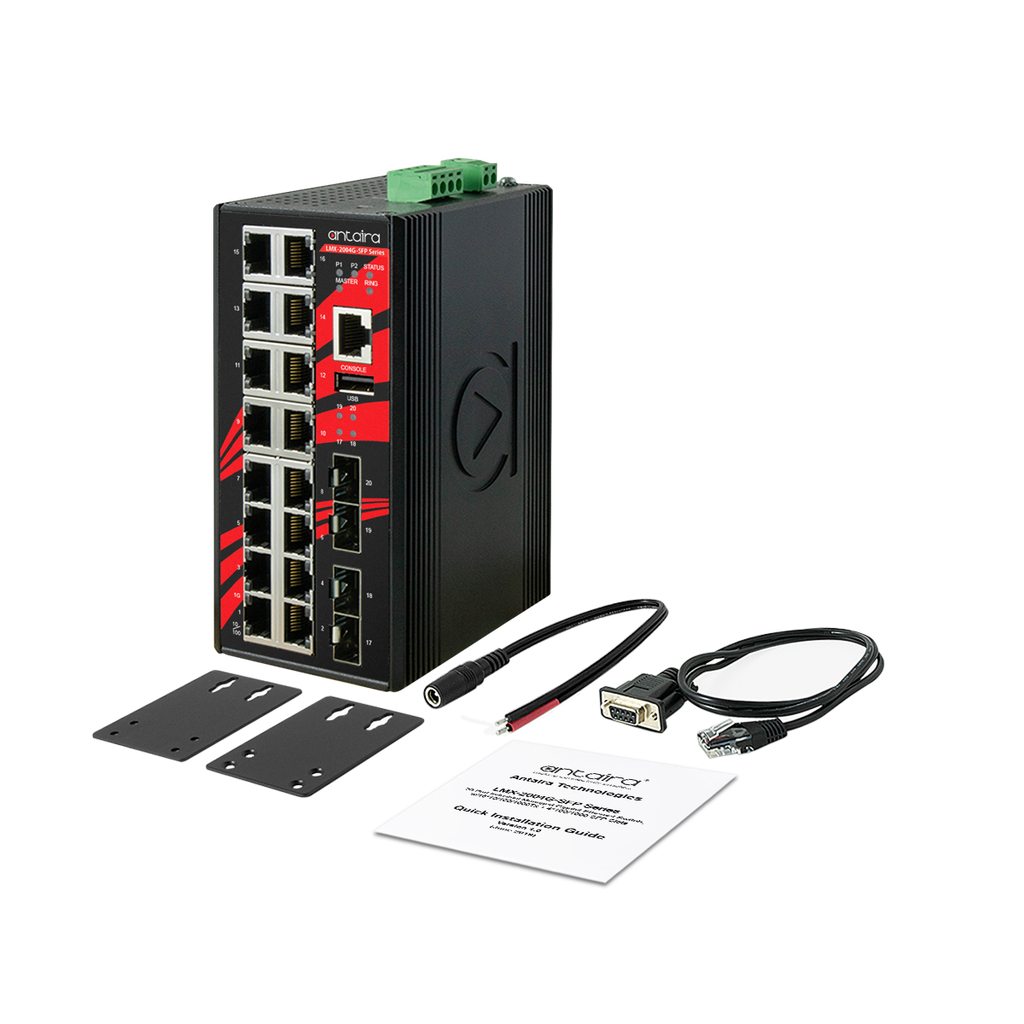

Antaira Technologiesi LMX-2004G-SFP on 20-portiline tööstuslik Gigabiti hallatav Ethernet-kommutaator, mis sisaldab 16*10/100/1000Tx Ethernet-porti ja 4*100/1000 SFP-pesa. LMX-2004G-SFP on täielikult hallatav kerge 3. kihi Ethernet-kommutaator, mis on eelnevalt varustatud kasutajasõbraliku veebihalduskonsooli disainiga. See toetab ringvõrgu redundantsfunktsiooni, kasutades turu avatud standardit ITU-T G.8032 ERPS (Ethernet Ring Protection Switch), mille võrgu taastumisaeg on <50 ms. Täiustatud võrgu filtreerimis- ja turvafunktsioonid, nagu IGMP, VLAN, QoS, SNMP, portide lukustamine, RMON, Modbus TCP ja 802.1X/HTTPS/SSH/SSL, suurendavad determinismi ja parandavad võrgu haldamist kaugjuhtimissüsteemide või juhtimisvõrkude puhul.
LMX-2004G-SFP on IP30-klassi ja DIN-riba paigaldatav. Samuti on standardne temperatuurivahemik (STD: -10°C kuni 70°C). See pakub ka kõrget EFT- ja ESD-kaitset tööstuslike võrgurakenduste jaoks, näiteks elektri- ja kommunaalteenuste, vee- ja reovee-, nafta-, gaasi- ja kaevandamisvõrkude, tehaste automatiseerimise, transpordi turvaseire, intelligentsete transpordisüsteemide ja mis tahes muu välitingimustes või rasketes tingimustes kasutatava keskkonna jaoks.
Toetab 16*10/100/1000Tx RJ45 porti.
Toetab 4*100/1000 SFP-pesa
Võrgu redundants: STP/RSTP/MSTP ja G.8032 ERPS (taastumisaeg <50ms).
Toetab IPv4/IPv6 ja DHCP Option 66/67/82.
Toetab Modbus/TCP-protokolli seadmete haldamiseks ja järelevalveks
IGMP v1/v2 multisaatmisliikluse filtreerimiseks
Süsteemihoiatuse seadistus automaatse hoiatuse saatmiseks e-posti teel
ShockIEC60068-2-27
ProtocolsIPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
Switching ArchitectureBack-Plane (Switching Fabric): 40.0Gbps
Processing TypeStore and Forward
Flow ControlIEEE 802.3x for full duplex mode, back pressure for half duplex mode
Transfer Rate14,880pps for 10Base-T Ethernet
148,800pps for 100Base-T Fast Ethernet
1,488,000pps for Gigabit Ethernet
Packet Buffer4Mbits
Jumbo Frame9.6Kbytes
MAC Table Size8K
VLAN Groups4095
IGMP Group1024
Ethernet Port16*10/100/1000BaseTx
Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port4*100/1000 SFP Slots
WavelengthDepends on SFP modules
RS232 Serial Console1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8, N, 1
Configuration backup1*USB 2.0
Overload Current ProtectionPresent
Reverse Polarity ProtectionPresent (the unit will not be on, if power reverse)
Network Cable10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100m)
1000BaseTX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
VibrationIEC60068-2-6
HousingMetal, IP30 rated
Dimensions67 x 142 x 99 mm (W x H x D)
WeightUnit: 2.65 Ibs
Shipping: 3.09 Ibs
MountingDIN-Rail mounting; Wall mounting
Input Voltage12~48VDC Redundant Input
System Power Consumption18.4 Watts
Power Connection1 removable 4-contact and 2-contact terminal block
Operating Temperature-10°C to 70°C
Storage Temperature-40°C ~ 85°C
Ambient Relative Humidity5 to 95%, (non-condensing)
EMIFCC Part 15 Subpart B Class A
CE EN55032/EN61000-6-4 Class A
EMSCE EN55035/EN61000-6-2 Class A
EN61000-4-2,3,4,5,6,8
Free FallIEC60068-2-32
GreenRoHS Compliant
CertificationsFCC, CE, UL 61010-1, 61010-2-201, NEMA TS2
Warranty5 Years
L2 SwitchingPort/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
L3 SwitchingDHCP option82, static routes
QoS802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Power SavingActiPHY, PerfectReach, IEEE 802.3az EEE power management
Network RedundancySTP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
ConfigurationHttp, Https, Telnet, SSH, CLI, TFTP, SNMP v3
System / DiagnosticsDual Image Protection, PING, PING6
SubstationIEC 61850-3 Edition 2.0
