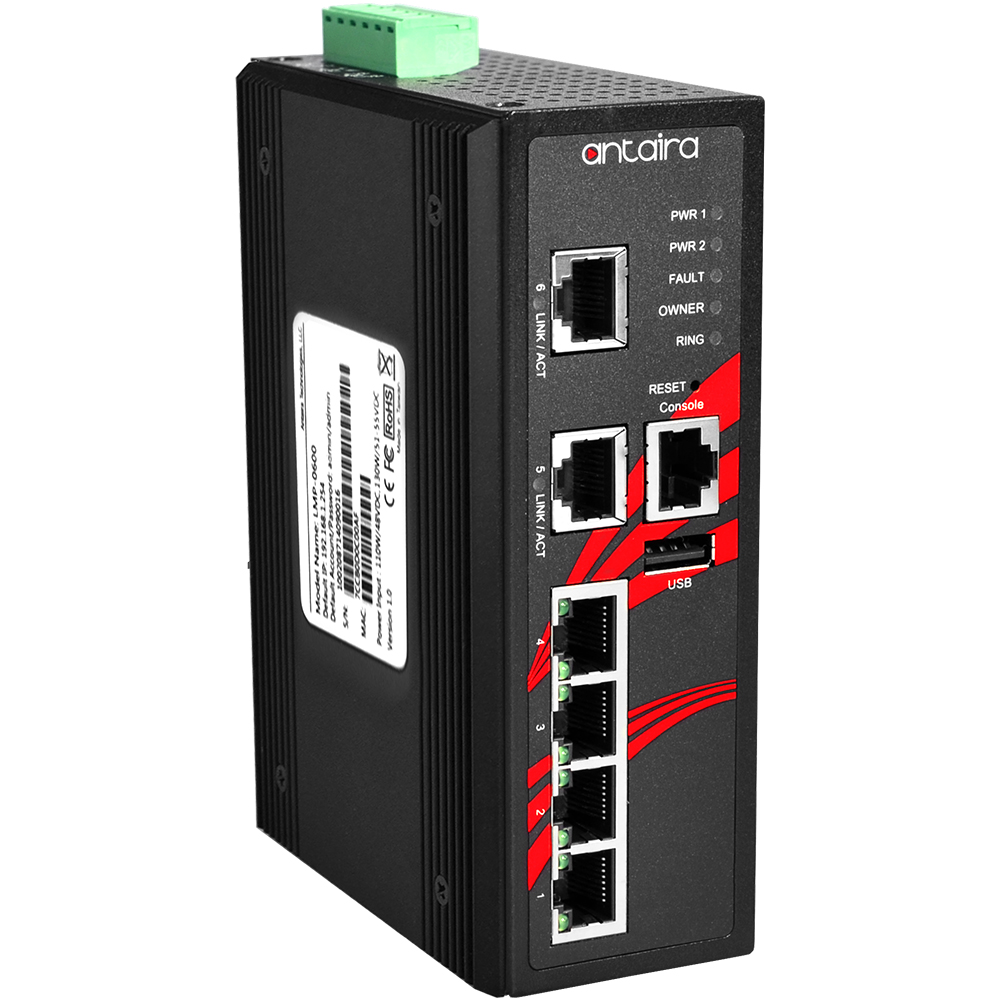

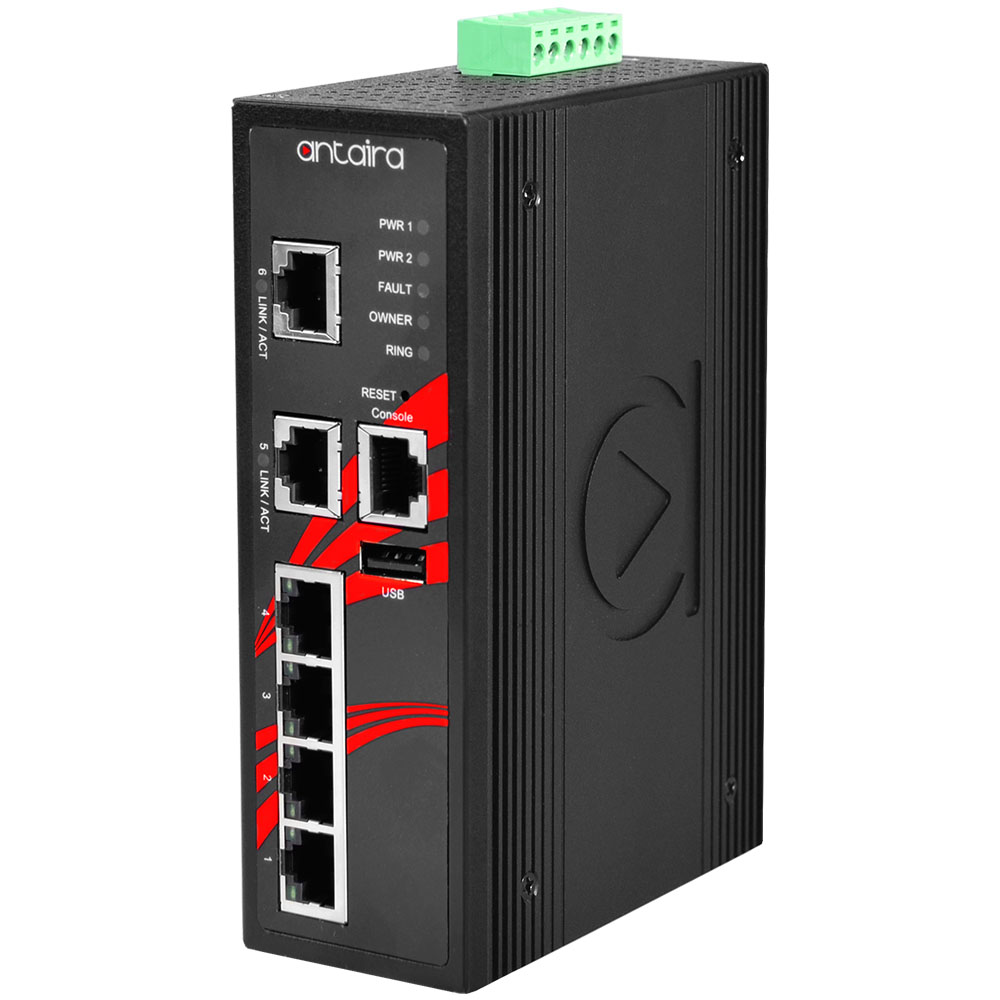

Switch: 6 x 10/100BaseT(X), -10 kuni 70°C, manageeritav, DIN

Switch: 6 x 10/100BaseT(X), -10 kuni 70°C, manageeritav, DIN

Certifications	FCC, CE, UL 61010-1, UL 61010-2-201
Configuration	Web Console, Telnet, CLI
Configuration backup	1*USB 2.0
Dimensions	46 x 142 x 99 mm
Ethernet Port	6*10/100BaseTx, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Free Fall / Shock / Vibration	IEC60068-2-32 / 2-27 / 2-6
Housing	Metal IP30 rated
IGMP	Up to 256 Groups
Input Voltage & Connection	12~48VDC Redundant Input w/ 1 removable 6-contact terminal block

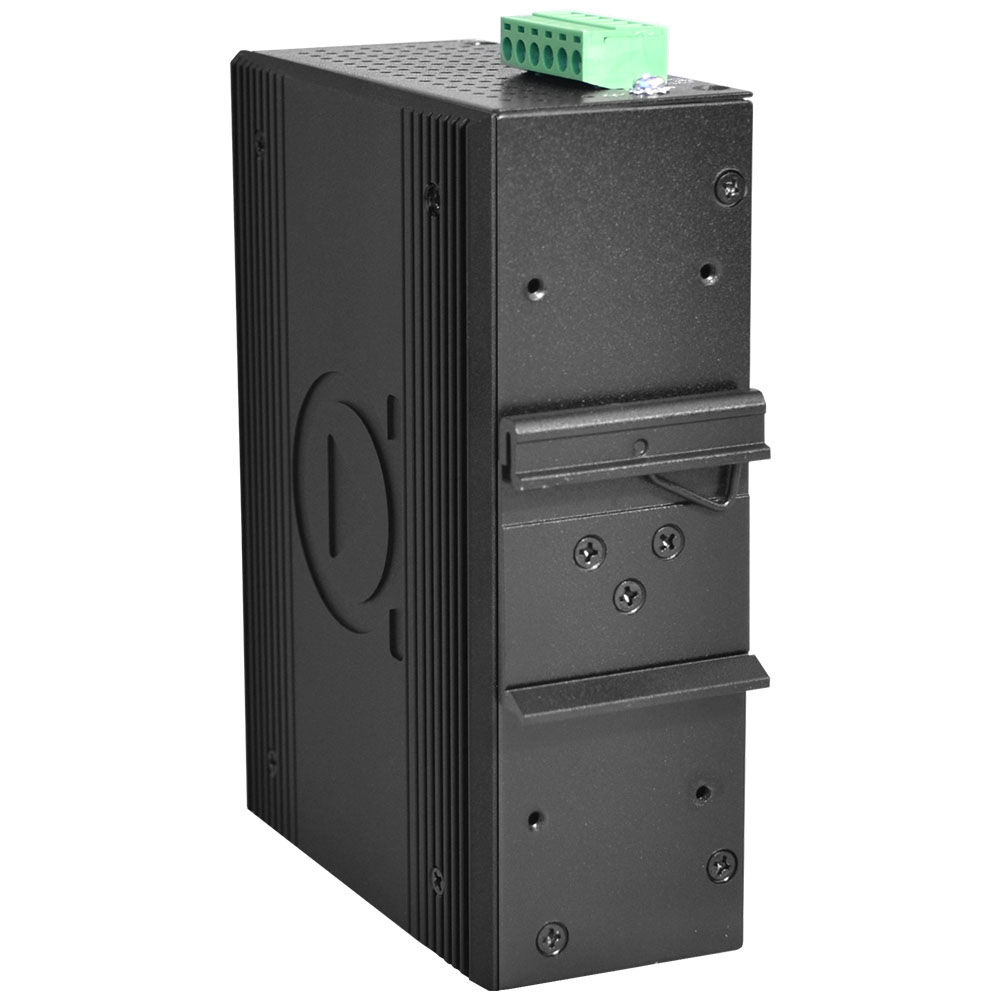

Mounting	DIN-Rail; Wall-mount (optional)
Operating Temperature	STD: -10° to 70° C
Overload Current Protection	Present
Power Consumption	10 Watts
Protocols	CSMA/CD,IGMPv1/v2,SNMPv1/v2,TFTP,SNTP,SMTP,RARP, Syslog
Reverse Polarity Power Protection	Present
Standards	IEEE 802.3, u, x IEEE 802.1d, w, s, q, x, ad, p ITU-TG.8032 / Y.1344 ERPS (Ethernet Ring Protection Switch)
Transfer Rate	14,880pps for 10Base-T Ethernet port 148,8800pps for 100Base-T Fast Ethernet port
VLAN	0 ~ 4094
Warranty	5 Years
Weight	Unit: 1.3 lbs Shipping: 2.2 lbs

505,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_LMX-0600 series_Datasheet-v2.0.pdf

Manufacturer Part Number: LMX-0600-T-V2
Tootekood: EE-100-169-886

Spetsifikatsioon

Weight

0.59 kg
