Certifications |
FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2, Class 1 Div 2, ATEX |
|
Configuration |
Web Console, Telnet, CLI |
|
Configuration backup |
1*USB 2.0 |
|
Dimensions |
54 x 142 x 99 mm |
|
EMI |
FCC Class A |
|
EMS |
IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4 |
|
Ethernet Port |
8*10/100/1000BaseTx (PSE: 30W/Port) auto negotiation speed, Full/Half duplex mode, and auto MDI connection |
|
Fiber Port |
2*100/1000 SFP Slot For Fiber |
|
Green |
RoHS Compliant |
|

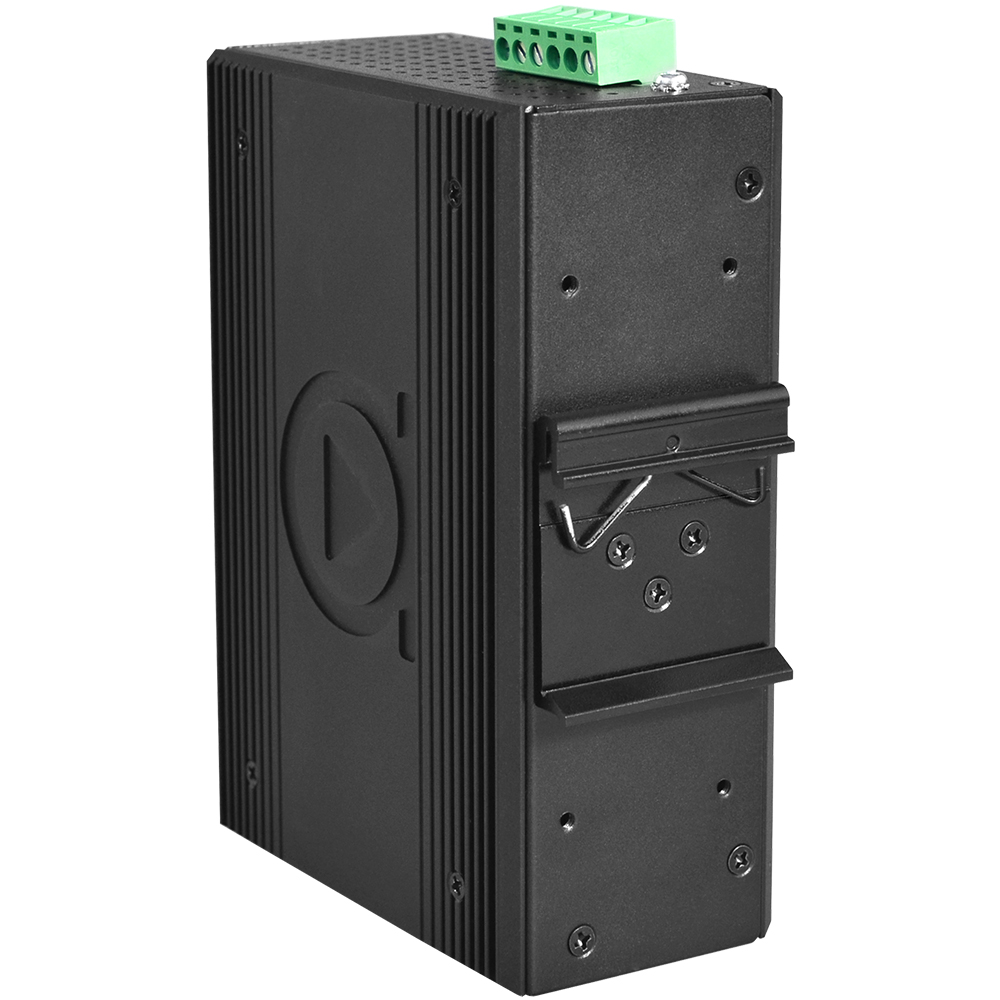

Housing / Mounting |
Metal IP30 rated / DIN-Rail & Wall-Mount (optional) |
|
IGMP |
Up to 256 Groups |
|
Input Voltage & Connection |
12~36VDC Redundant Input / 1 removable 6-contact terminal block |
|
Jumbo Frame |
9.6K |
|
Operating Temperature |
EOT: -40 to 75°C |
|
Power Consumption |
15 Watts (no PD included);
145 Watts @12VDC; 200 Watts @24VDC |
|
Protection |
Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC
Overload Current, Power Reverse Polarity, CPU Watchdog |
|
Protocols |
IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6 |
|
Serial Console |
1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1 |
|
Shock/Vibration/Free Fall |
IEC60068-2-27 / 2-6 / 2-32 |
|
Standards |
IEEE 802.3 / 802.3u / 802.3x / 802.3ad,
IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p
ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol |
|
VLAN |
1 ~ 4094 |
|
Warranty |
5 Years |
|
Wavelength |
Refer to SFP Module |
|
Weight |
Unit: 2.5 lbs; Shipping: 3.3 lbs |
