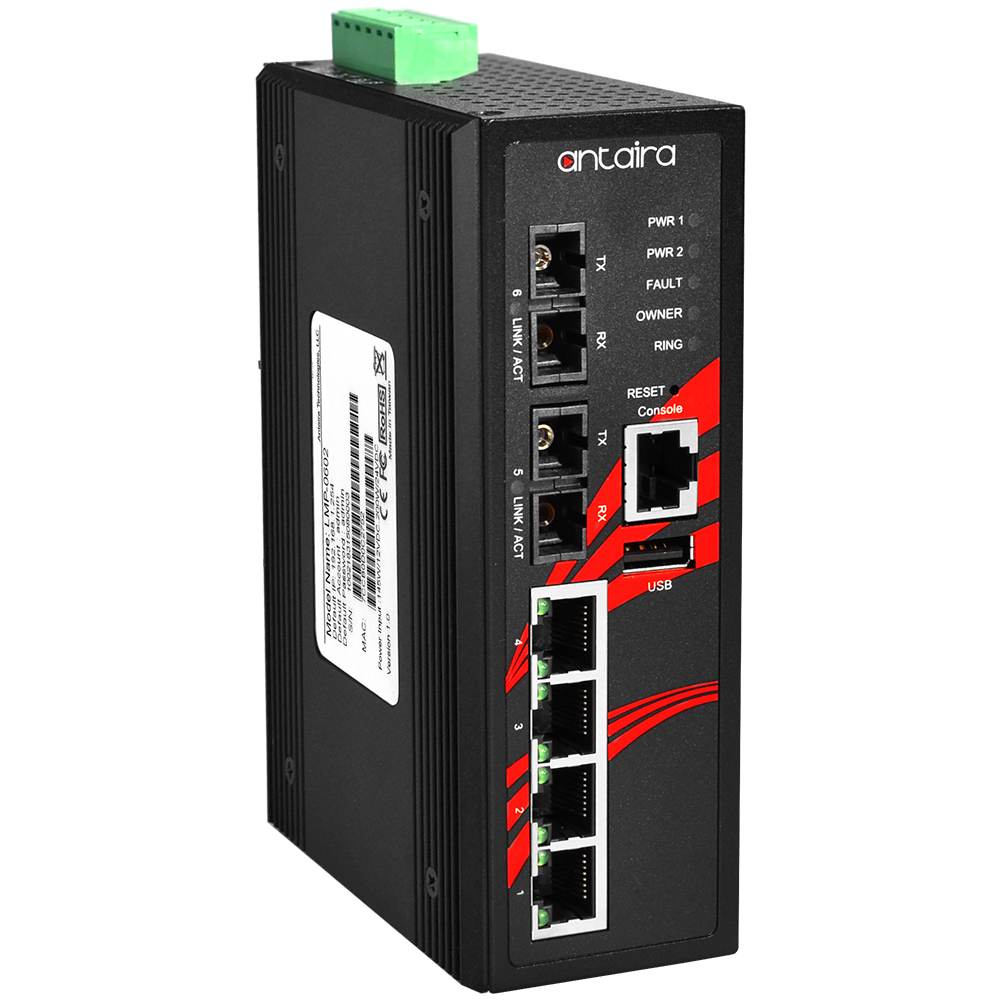

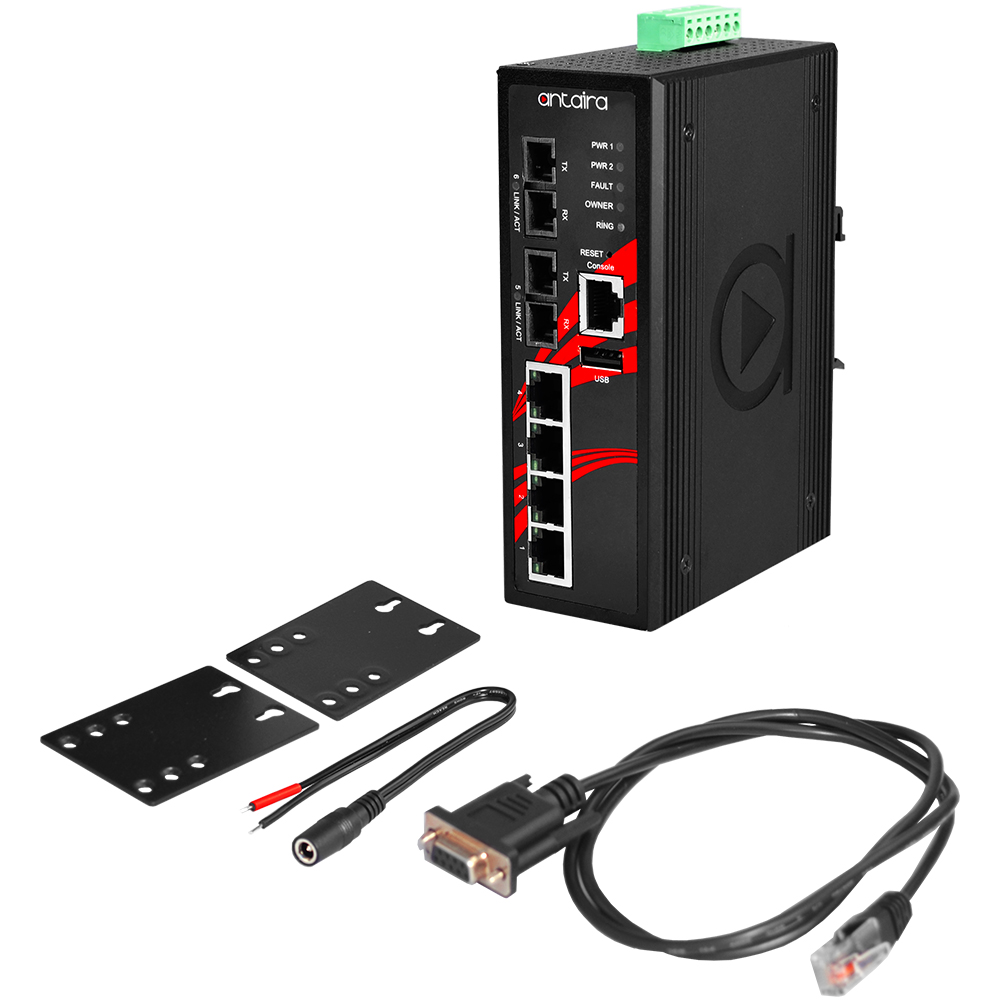

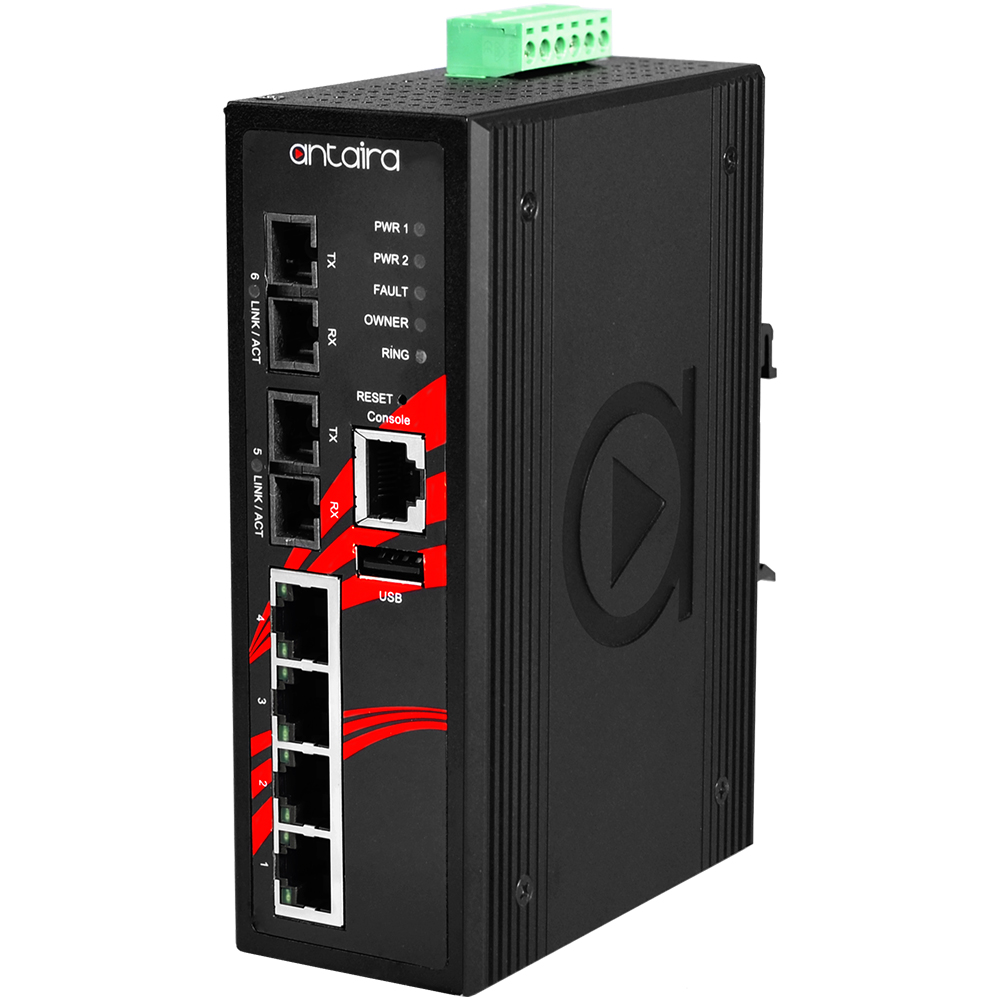

Switch: 4 x 10/100BaseT(X) PoE+, 2 x 100BaseFX single-mode SC, -40 kuni 75°C, manageeritav, DIN, 12-36VDC

Switch: 4 x 10/100BaseT(X) PoE+, 2 x 100BaseFX single-mode SC, -40 kuni 75°C, manageeritav, DIN, 12-36VDC

Certifications	FCC, CE, UL508 (Pending)
Dimensions	46 x 142 x 99 mm
Ethernet Port	4*10/100BaseTx (PSE: 30W/Port) auto negotiation speed, Full/Half duplex mode, and auto MDI connection
Fiber Port	2*100Fx (SC type connector); Single-mode 30Km
Housing	Metal IP30 rated
IGMP	Up to 256 Groups
Input Voltage	12~36VDC Redundant Input

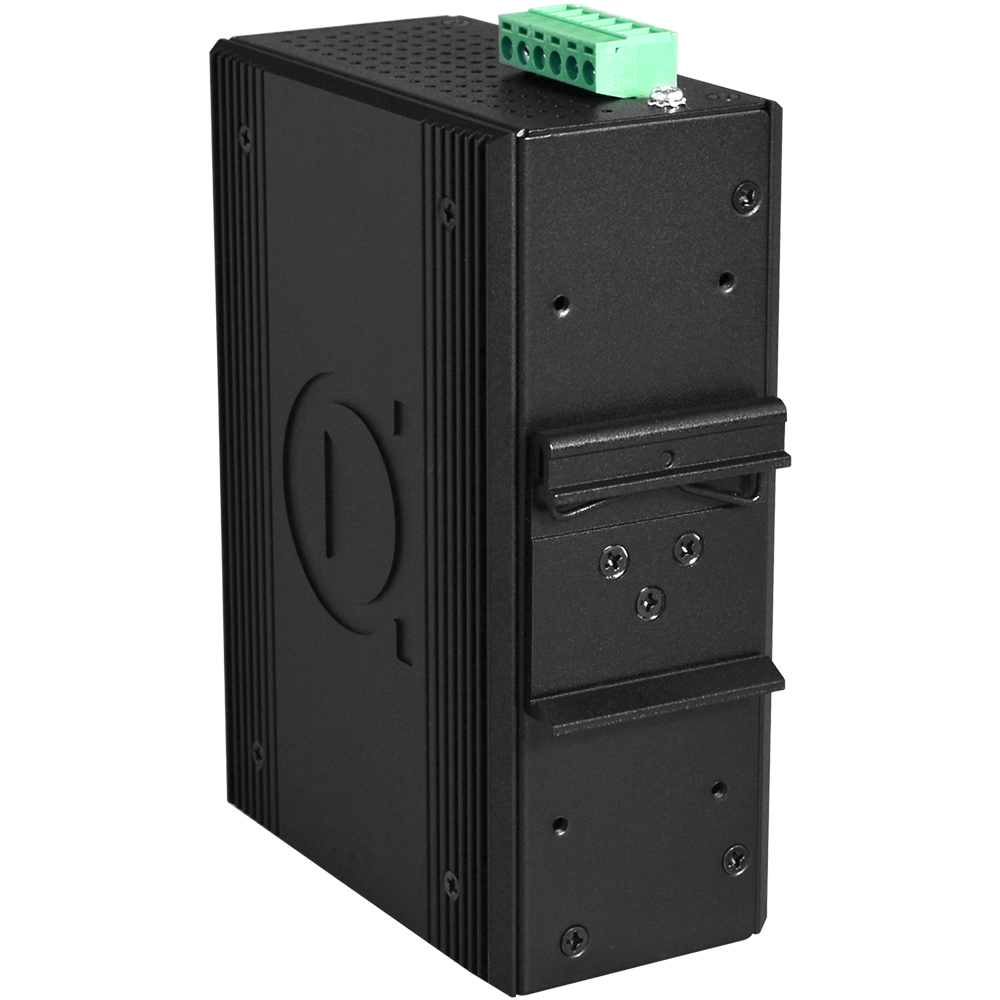

Mounting	DIN-Rail; Wall-mount (optional)
Operating Temperature	EOT: -40° to 75° C
Overload Current Protection	Present
Poe Pin Assignment	V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A)
Power Consumption	10W (no PD included); 145W (Fully loaded)
Protocols	CSMA/CD,IGMPv1/v2,SNMPv1/v2,TFTP,SNTP,SMTP,RARP, Syslog
Reverse Polarity Power Protection	Present
Standards	IEEE 802.3, u, x, at/af IEEE 802.1d, w, s, q, x, ad, p ITU-TG.8032 / Y.1344 ERPS
VLAN	0 ~ 4094
Warranty	5 Years
Wavelength	1310nm (Multi or Single Mode)
Weight	Unit: 1.5 lbs Shipping: 2.3 lbs

765,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_LMP-0602-24 series_Datasheet-v2.0.pdf

Manufacturer Part Number: LMP-0602-S3-24-T-V2
Tootekood: EE-100-169-854

Spetsifikatsioon

Weight

0.68 kg
