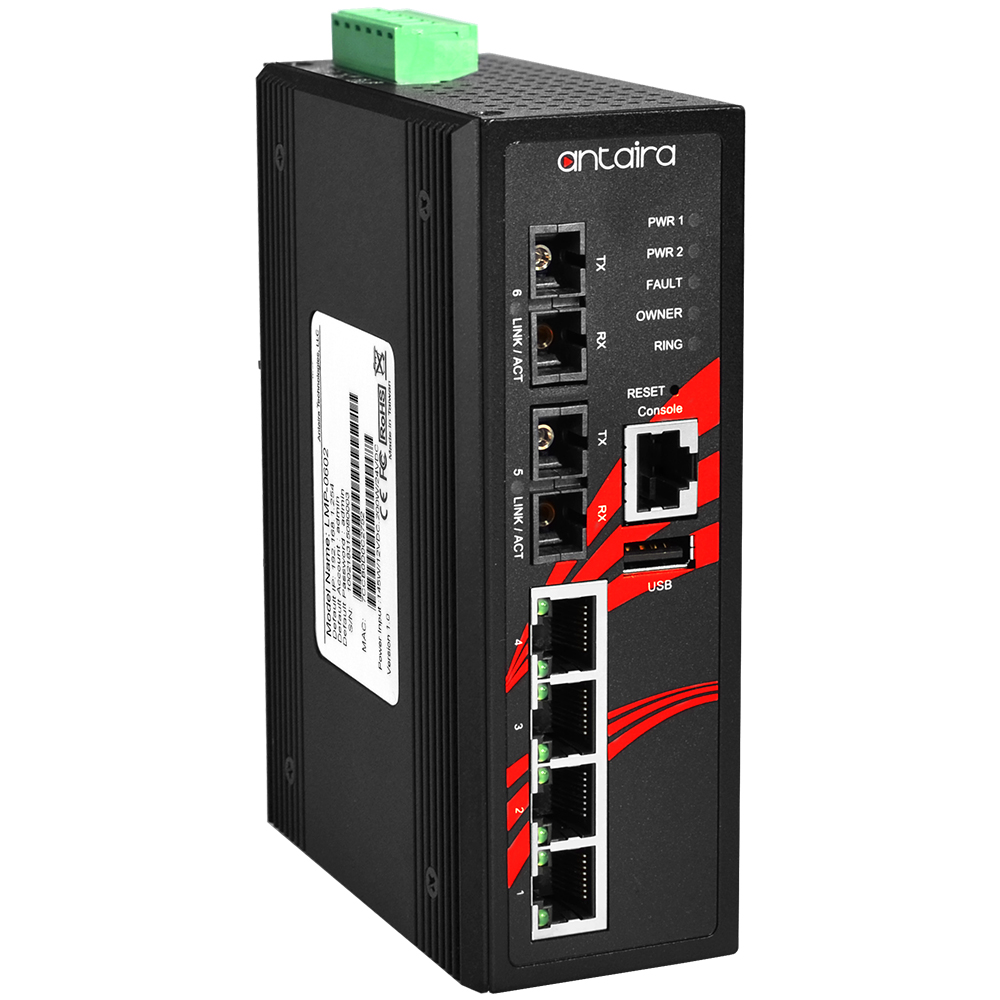

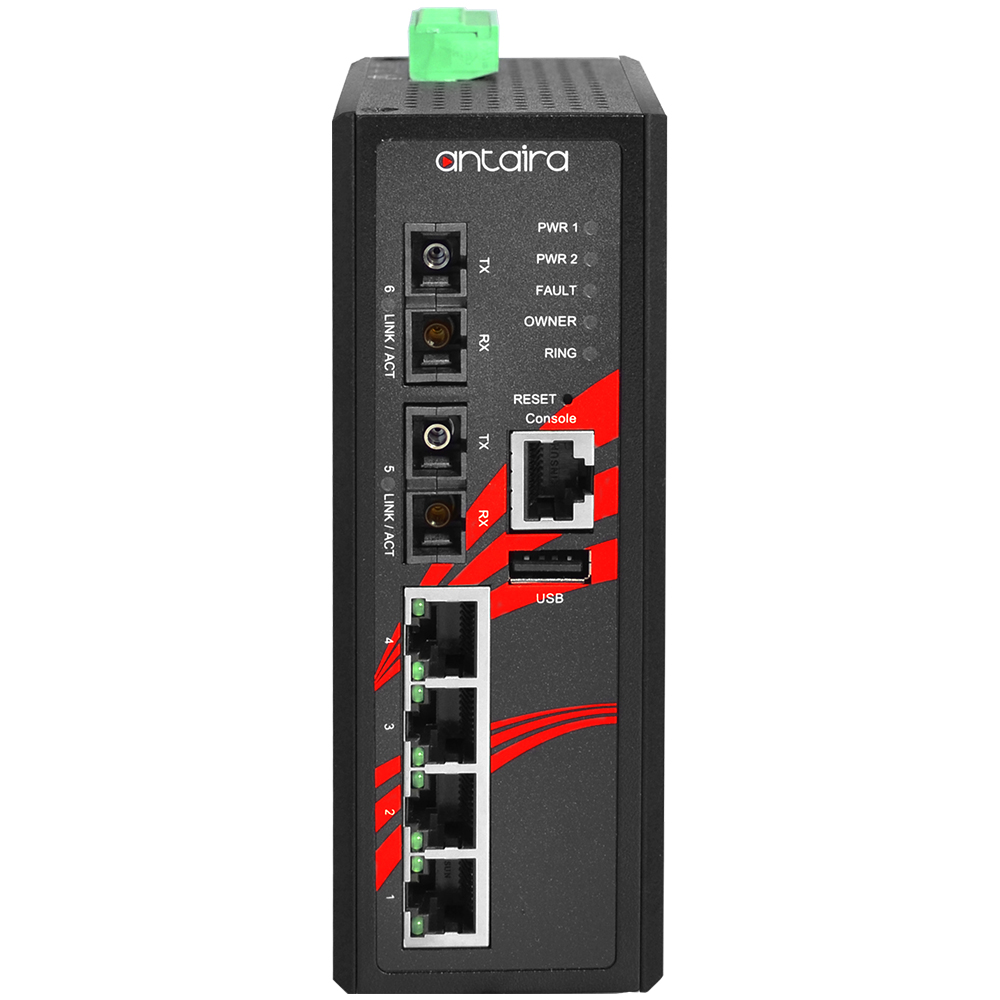

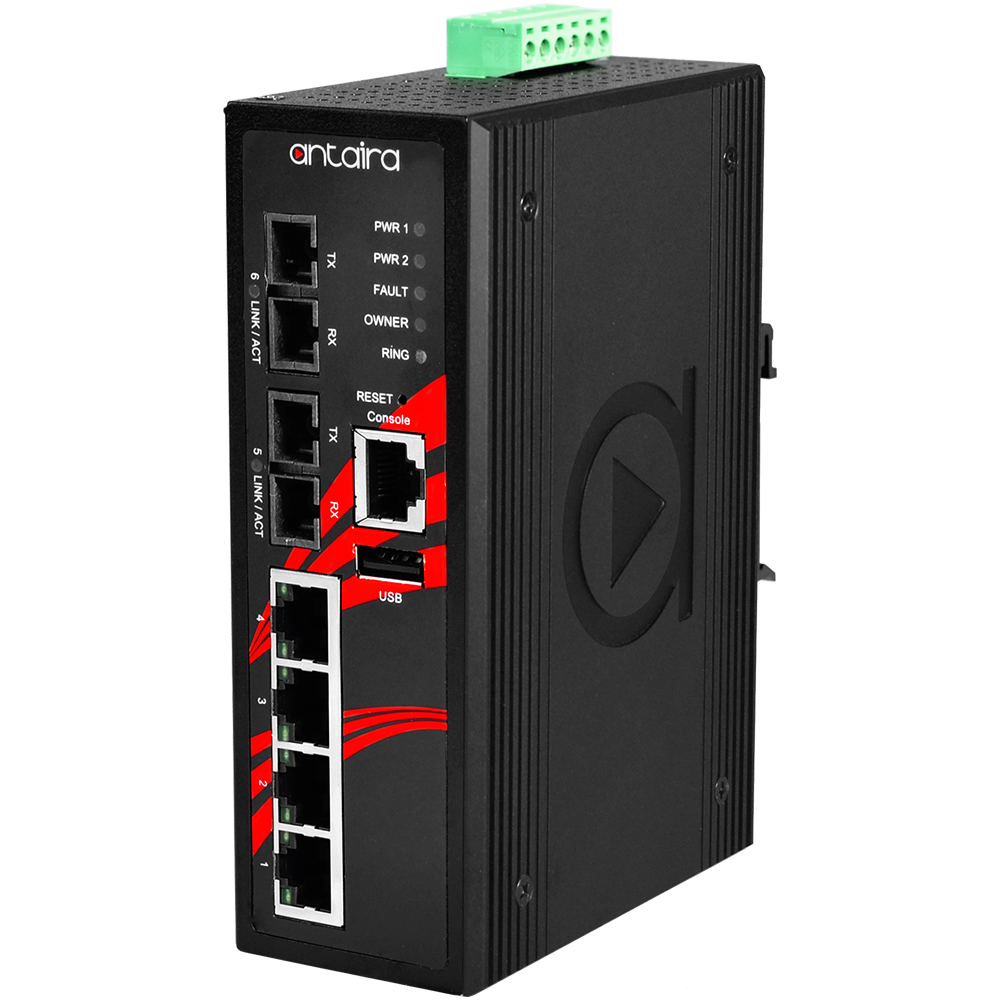

Antaira LMP-0602-M-T-V2 on 6-portiline tööstuslik PoE+ Light Layer 3 hallatav Ethernet-kommutaator, mis sisaldab 4*10/100Tx Ethernet-porti, mis toetavad IEEE802.3af/at maksimaalselt 30 vatti pordi kohta, ja 2*100Fx (SC-pistikut) mitmemoodilist (2Km) kiudoptilist porti.
LMP-0602-M-T-V2 on täielikult hallatav tööstuslik Ethernet-kommutaator, mis toetab standardseid kerge 3. kihi Ethernet-konfigureeritavaid seadistusi koos eellaaditud veebikonsooliga. See tööstuslik Ethernet-kommutaator on IP30-klassi ja DIN-redelile paigaldatav ning pakub EOT-is toodud töötemperatuurivahemiku mudelit: -40°C kuni 75°C. Samuti pakub see kõrget EFT- ja ESD-kaitset mis tahes tööstuslike võrgurakenduste jaoks tehase automaatika, ITS, elektri- ja kommunaalteenuste, vee- ja reoveepuhastusjaamade või mis tahes välitingimustes või rasketes keskkondades.
Versioon 2 riistvara ühildub uusima kerge 3. kihi püsivara, mis võimaldab staatilisi marsruute VLANide vahel.
|
Certifications |
FCC, CE, UL, UL 61010-1, UL 61010-2-201 |
|
Configuration |
Web Console, Serial Console, CLI support |
|
Configuration backup |
1*USB 2.0 Port |
|
Dimensions |
46 x 142 x 99 mm |
|
Ethernet Port |
4*10/100BaseTx (PSE: 30W/Port) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
|
Fiber Port |
2*100Fx (SC connector) Multi-mode in 2Km - 50/125um ~ 62.5/125um |
|
Free fall / Shock / Vibration |
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6 |
|
Green |
RoHS Compliant |
|
Housing / Mounting |
Metal IP30 rated / DIN-Rail & Wall-mount (optional) |
|
Humidity |
5 to 95%, (non-condensing) |
|
IGMP |
Up to 256 Groups |
|
Input Voltage & Connection |
48~55VDC Redundant Input / 1 removable 6-contact terminal block |
|
Management Protocol |
CSMA/CD,IGMPv1/v2,SNMPv1/v2,TFTP,SNTP,SMTP,RARP, Syslog |
|
Operating Temperature |
-40° to 75°C |
|
Poe Pin Assignment |
V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A) |
|
PoE Power Output |
25W @ 48VDC (per PoE port); 30W @ 51~55VDC (per PoE port) |
|
Power Consumption |
10 Watts (no PD included); 130 Watts (Fully loaded) |
|
Protection |
Overload Current & Power Reverse Polarity |
|
Ring Redundancy |
ITU-TG.8032 - ERPS (Ethernet Ring Protection Switch) <50ms |
|
Serial Console |
1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1 |
|
Standards |
IEEE 802.3 10Base-T Ethernet, 802.3u 10/100Base-T Fast Ethernet
IEEE 802.3x Flow Control for Full Duplex, 802.3af PoE, 802.3at PoE+
IEEE 802.1d Spanning Tree Protocol, 802.1w Rapid Spanning Tree Protocol, 802.1s Multiple Spanning Tree Protocol
ITU-TG.8032 / Y.1344 ERPS (Ethernet Ring Protection Switch)
IEEE 802.1q Virtual LANs (VLAN), 802.1x Port based Network Control, Authentication
IEEE 802.1ad Stacked VLAN, Q-in-Q, 802.1p QoS/CoS Protocol for Traffic Prioritization |
|
Storage Temperature |
-40° to 85°C |
|
VLAN |
0 ~ 4094 |
|
Warranty |
5 Years |
|
Weight |
Unit: 1.5 lbs; Shipping: 2.3 lbs |
