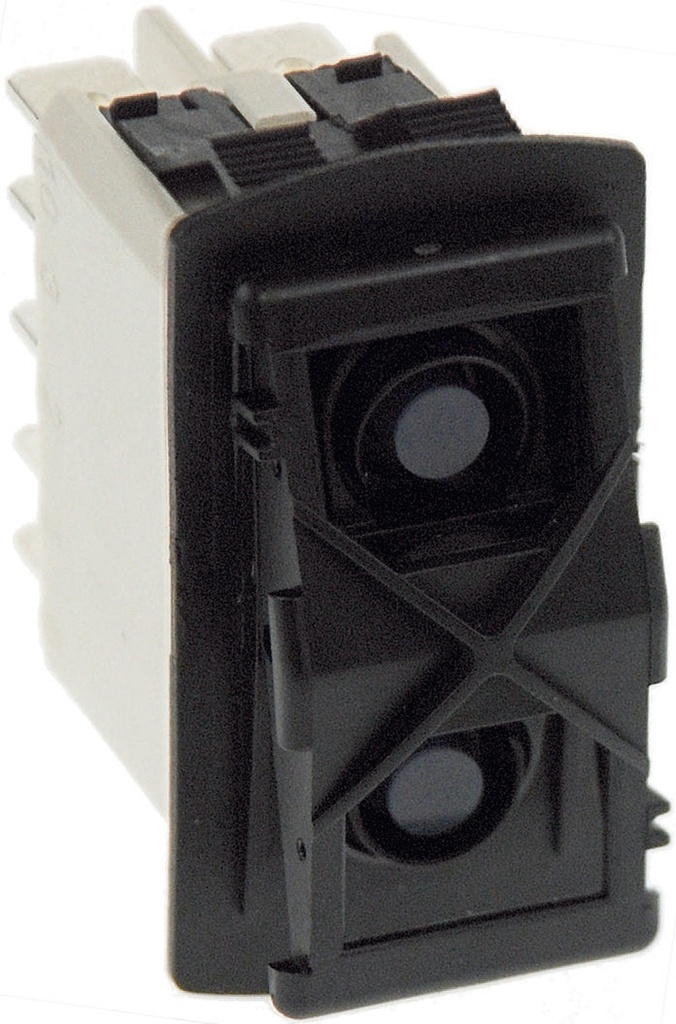

Otsid vastupidavat ja töökindlat klahvlülitit? Meie kahepooluseline (DPDT) lüliti on ehitatud nõudlikeks rakendusteks, pakkudes hetkelist sisselülitamise (MOM - ON) funktsiooni kiireks ja tundlikuks juhtimiseks.
See lüliti paistab silma oma selge 24 V sinise LED-valgustusega, mis annab kohese visuaalse tagasiside. Sees tagavad vastupidavad hõbekontaktid madala takistusega ühenduse ja ühtlase jõudluse. See on loodud taluma karme keskkondi ning omab IP68 reitingut ülima tolmu- ja veekaitse tagamiseks. Paigaldamine on paindlik tänu nii jooteklemmidele kui ka kiirühendusklemmidele, mis muudab juhtmestiku lihtsaks ja tõhusaks.
DISTINCTIVE FEATURES
Unique rocker design
Wide choice of colors
Laser etched symbols
Illuminated or non-illuminated
Optionally sealed to IP68 or IP69K
ENVIRONMENTAL SPECIFICATIONS
Sealing options :
- K : IP68 to front panel components of switch only according to IEC 60529
- Z : IP69K panel sealing according to DIN 40050-9
Salt spray resistance : 96 hours according to IEC 512-6, test 11f
Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6
Operating temperature : -40 °C to +85 °C (-40 °F to +185 °F)
ELECTRICAL SPECIFICATIONS
• Currrent/voltage rating with resistive load :
Silver plated contacts :
- A : 5 A 24 VDC, 100,000 cycles
- 10 A 24 VDC, 10,000 cycles (terminals 6.35 x 0.8 only)
- S : 20 A 12 V, 10,000 cycles (see “Build your part number“)
Gold plated contacts (D) : 20 mA 12 V, 150,000 cycles
Current/voltage rating with lamp load - silver contacts (A) :
- functions 1 & 6 : 100 W 24 VDC, 10,000 cycles
- other functions : 60 W 24 VDC, 10,000 cycles
Initial contact resistance : 10 mΩ max.
Insulation resistance : 1,000 MΩ min. at 500 VDC
Dielectric strength : 2,000 Vrms 50 Hz min. between terminals
GENERAL SPECIFICATIONS
Mechanical life : 150,000 cycles min.
Panel thickness : 0.8 mm to 4.6 mm
Recommended panel thickness : between 2 mm and 3.5 mm
MATERIALS
Case : PA 6-6
Actuator : ABS
Bezel : PA 6-6
Contacts & terminals :
- brass, solid silver grain, silver plated (A or S)
- or brass, solid silver grain, gold plated (D)
Contact roller : brass, nickel plated
