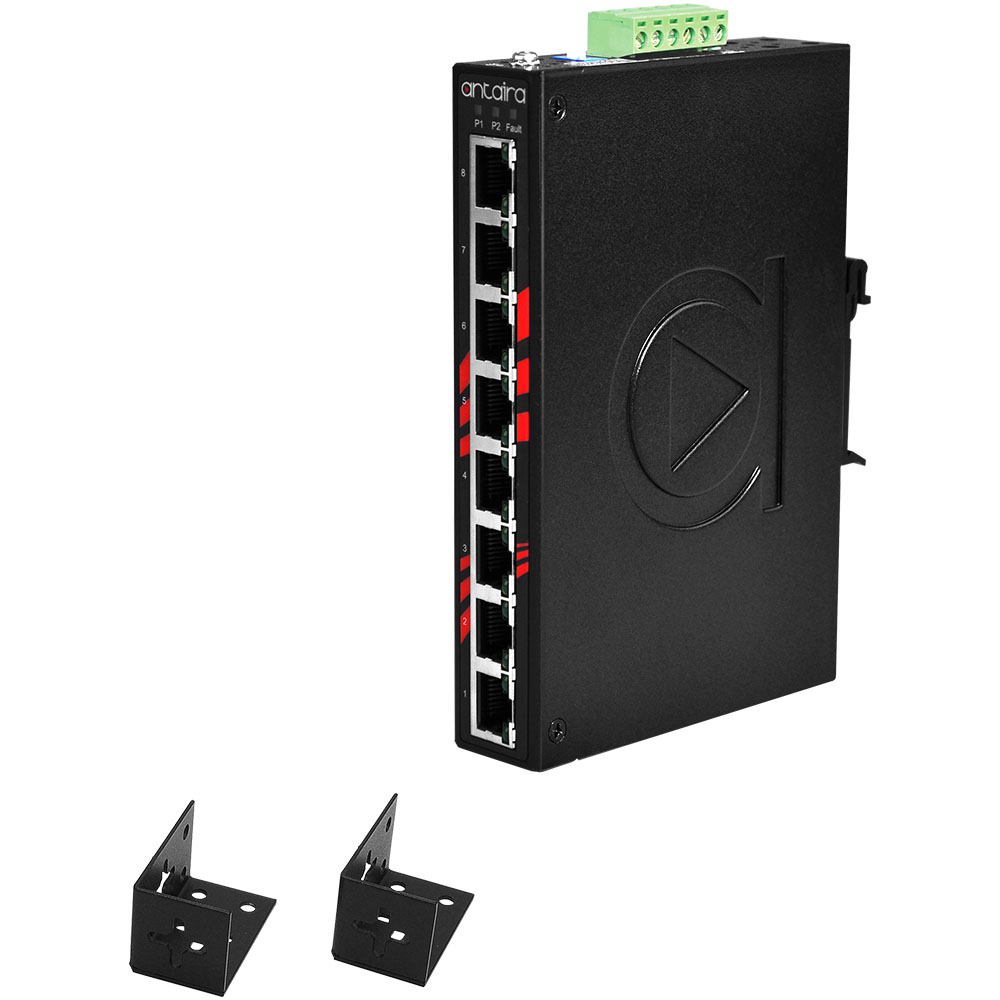

Switch: 8 x 10/100/1000BaseT(X) PoE+, -10 kuni 70°C, mittemanageeritav, DIN, 48-55VDC

Switch: 8 x 10/100/1000BaseT(X) PoE+, -10 kuni 70°C, mittemanageeritav, DIN, 48-55VDC

Certifications	FCC, CE, UL/cUL 508, ISA 12.12.01, Class 1 Div 2
Dimensions	41.0 x 94.9 x 144.3 mm (1.61 x 3.74 x 5.68 inches)
EMI	FCC Part 15, CISPR (EN55022) Class A, E-MARK, CE-EN6100-4-2/3/4/5/6/8/11
Ethernet Port	8 x 10/100/1000BaseT(X) Ports in RJ45 Auto MDI/MDIX with PSE
Fault Output	Realy Output to Carry Capacity of 1A @ 24VDC
Flow Control	Flow Control for Full-Duplex Back Pressure for Half-Duplex
Free Fall / Shock / Vibration	IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Gigabit Ethernet Port	Yes
Humidity	5% ~ 95% non-condensing
IEEE	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT IEEE 802.3x for Flow Control IEEE 802.3at PoE Specification (Up to 30 Watts per Port for PSE)
LED	Power, Fault, 10/100/1000T(X) RJ45 Port and POE
Mac Address Table	2048 MAC Addresses
Method	Store and Forward
Operating Temperature	-10° ~ 60° C (14° ~ 140° F)
Overload Current	Yes
Power Consumption	7.8 Watts (Power Device Not Included)
Power Input	Dual DC Inputs, 12~36VDC on 6-Pin Terminal Block
Power Output	Up to 30 Watts per PoE port @12VDC for 90W PoE Power Budget @24-36VDC for 200W PoE Power Budget
Power Over Ethernet	Yes, RJ-45 Ports 1 - 8 Supports IEEE 802.3at Standard up to 30 Watts per Port
Power Redundancy	Yes
Protocols	CSMA/CD
Reverse Polarity	No
Storage Temperature	-40° ~ 85° C (-40° ~ 185° F)
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Warranty	5 Years

469,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_LNP-800AGH-24 series_Datasheet-v1.2.pdf

Manufacturer Part Number: LNP-800AGH
Tootekood: EE-100-169-998

Spetsifikatsioon

Weight

0.76 kg
