LNP-0800G-M12-67-24 Ethernet-kommutaator pakub 8 Gigabit Ethernet M12 porti, millest kõik 8 on IEEE 802.3at standardile vastavad PoE (Power-over-Ethernet). Lülitid on klassifitseeritud toiteallikaseadmetena (PSE) ja pakuvad kuni 30 vatti võimsust iga pordi kohta.
LNP-0800G-M12-67-24 omab laiaulatuslikku töötemperatuuri -10° kuni 60°C, mis võimaldab seda kasutada ka kõige karmimates tööstuskeskkondades.
Lisaks sellele tagavad selle M12-liitmikud tiheda ja tugeva ühenduse ning tagavad usaldusväärse töö rakendustes, mis on seotud suure vibratsiooni ja löökidega.
Omadused
8-portiline 10/100/1000Tx Ethernet koos IEEE 802.3at standardile vastava PoE+-ga
Redundantne toitesisendite disain, 24~55VDC
Sisseehitatud toitevõimendi disain PoE/PoE+ väljundiks
Sisseehitatud relee väljundi hoiatus toite/PoE rikke korral
Bypass Design Daisy Chain redundantsi jaoks
Toetab digitaalset sisendit / digitaalset väljundit
IP67 vastupidav veekindel metallist korpuse disain

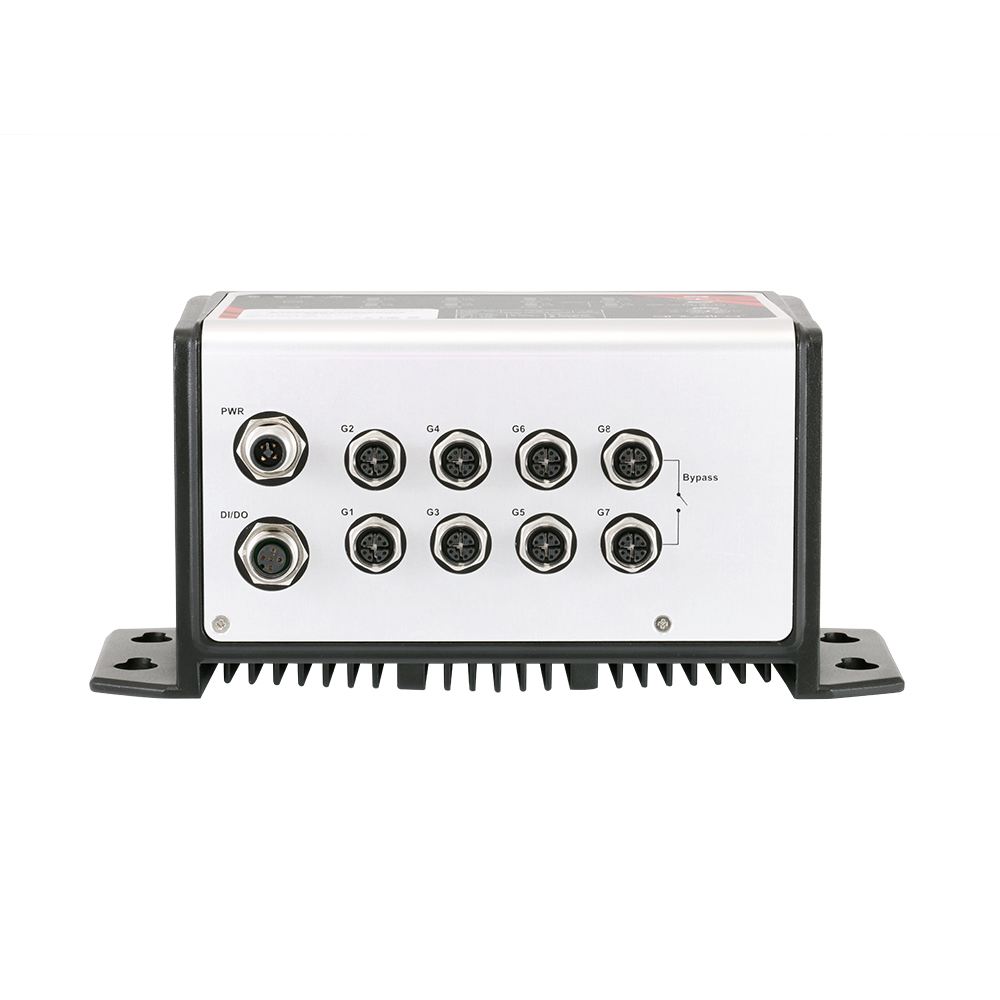

M12 X-kodeeritud liitmik tagab tiheda ja vastupidava ühenduse
Seinale paigaldatav
5-aastane garantii
Komplektis
1 - LNP-0800G-M12-67-24
1 - Kiirpaigaldusjuhend
|
Ambient Relative Humidity |
5% to 95%, (non-condensing) |
|
Bypass Protection |
Ethernet Port 7 and 8 |
|
Certifications |
UL 61010-1, UL 61010-2-201 |
|
Digital Input |
1*Digital Input (DI): State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA |
|
Dimensions |
253.57 x 122 x 116.12 mm (W x H x D) |
|
EMI |
FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A |
|
EMS |
CE EN 55024 Class A
EN 61000-6-2 Class A
IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field) |
|
Ethernet Port |
8*10/100/1000BaseT(X) with 8*PoE+, 8-pin M12 X-coded female connectors, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
|
Flow Control |
IEEE 802.3x back pressure flow control |
|
Free Fall / Shock / Vibration |
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6 |
|
Green |
RoHS Compliant |
|
Housing |
Metal, IP67 protection |
|
Input Voltage |
24~55VDC, Redundant Power Inputs |
|
Jumbo Frame |
12.2K bytes |
|

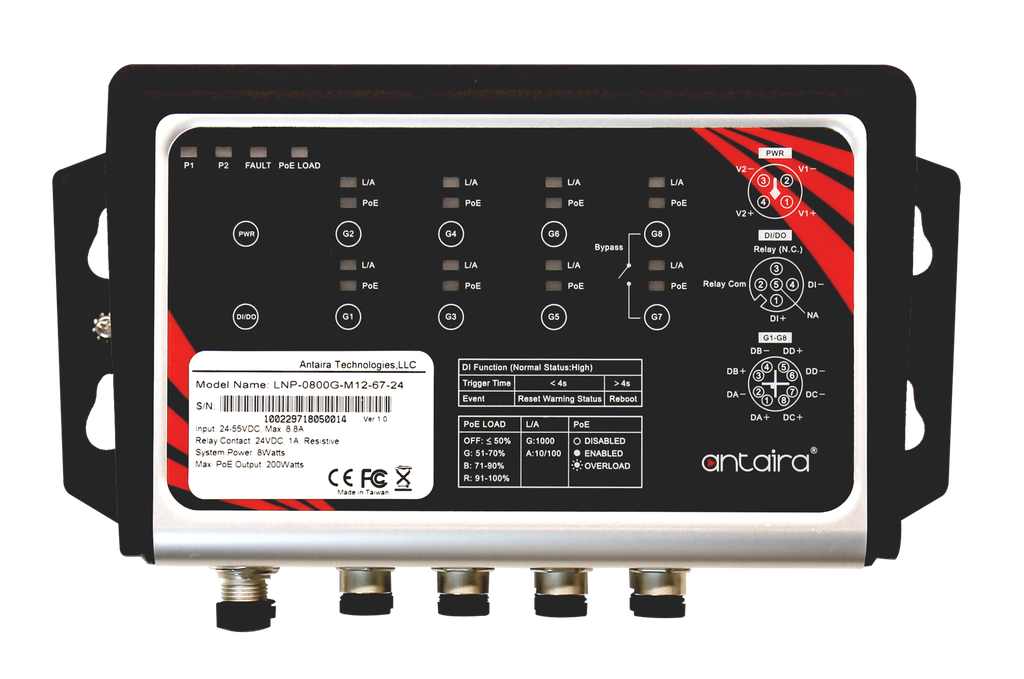

LED Indicators |
Power 1, Power 2, Fault, PoE Load
Ethernet Ports: On- link / Flash- data transmitting
PoE: On- connected to PD devices |
|
MAC Table Size |
8K |
|
Max. PoE Power Budget |
200Watts |
|
Memory Buffer |
4Mbits |
|

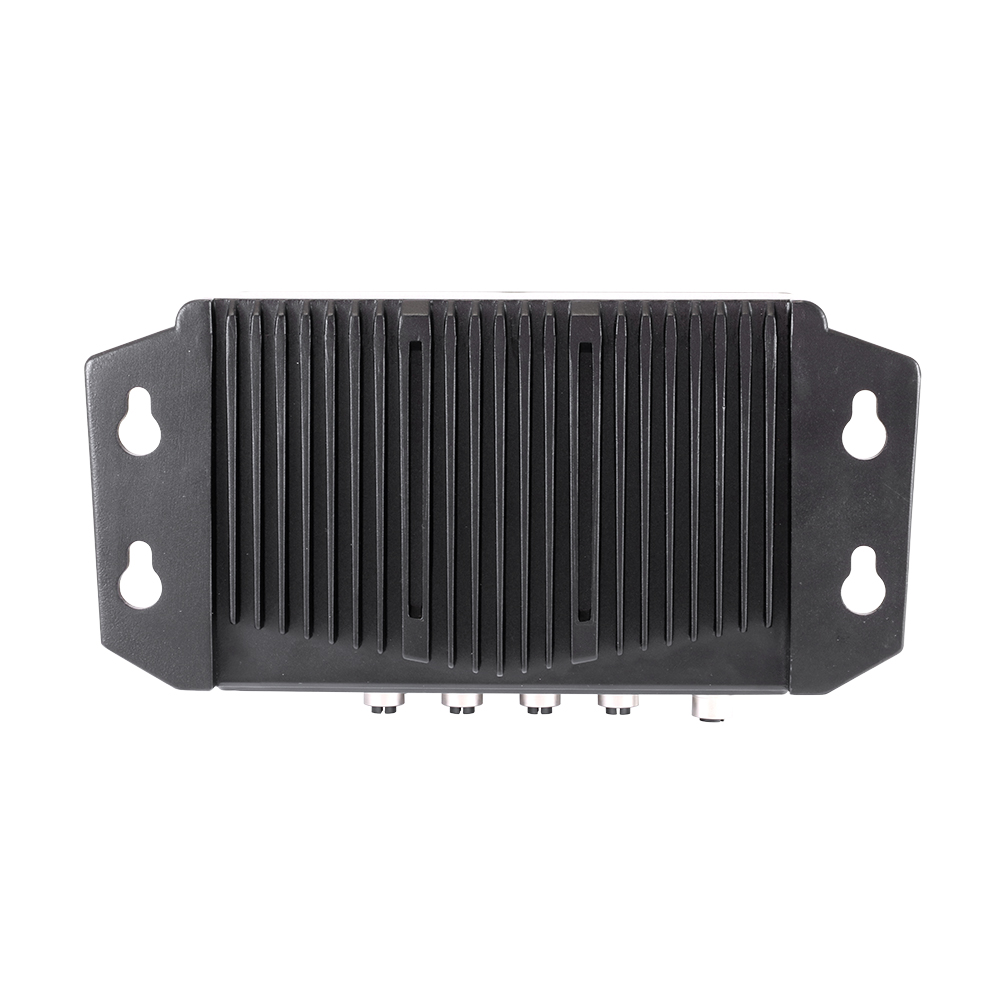

Mounting |
Wall mounting |
|
Operating Temperature |
-10°C ~ 60°C |
|
Overload Current Protection |
Present |
|
PoE Output Priority |
Port 1 to 8 (High priority to low priority) |
|
PoE Power Output |
30W max. per PoE port |
|
Power Connection |
1*M12, 4-pin T-coded, male connector |
|
Power Consumption |
8Watts for system |
|
Processing Type |
Store and Forward |
|
Protocols |
CSMA/CD |
|
Relay Contact |
24VDC, 1A resistive, M12 5-pin A-coded female connector |
|
Reverse Polarity Protection |
Present |
|
Standards |
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT
IEEE 802.3af/at Power over Ethernet |
|
Storage Temperature |
-40°C ~ 85°C |
|
Switching Architecture |
Back-Plane: Non-Blocking Switching Fabric |
|
Transfer Rate |
14,880pps for Ethernet Port
148,800pps for Fast Ethernet Port
1,488,000pps for Gigabit Ethernet Port |
|
Warranty |
5 Years |
|
Weight |
Unit: 7.05 lbs.
Shipping: 8.82 lbs. |
