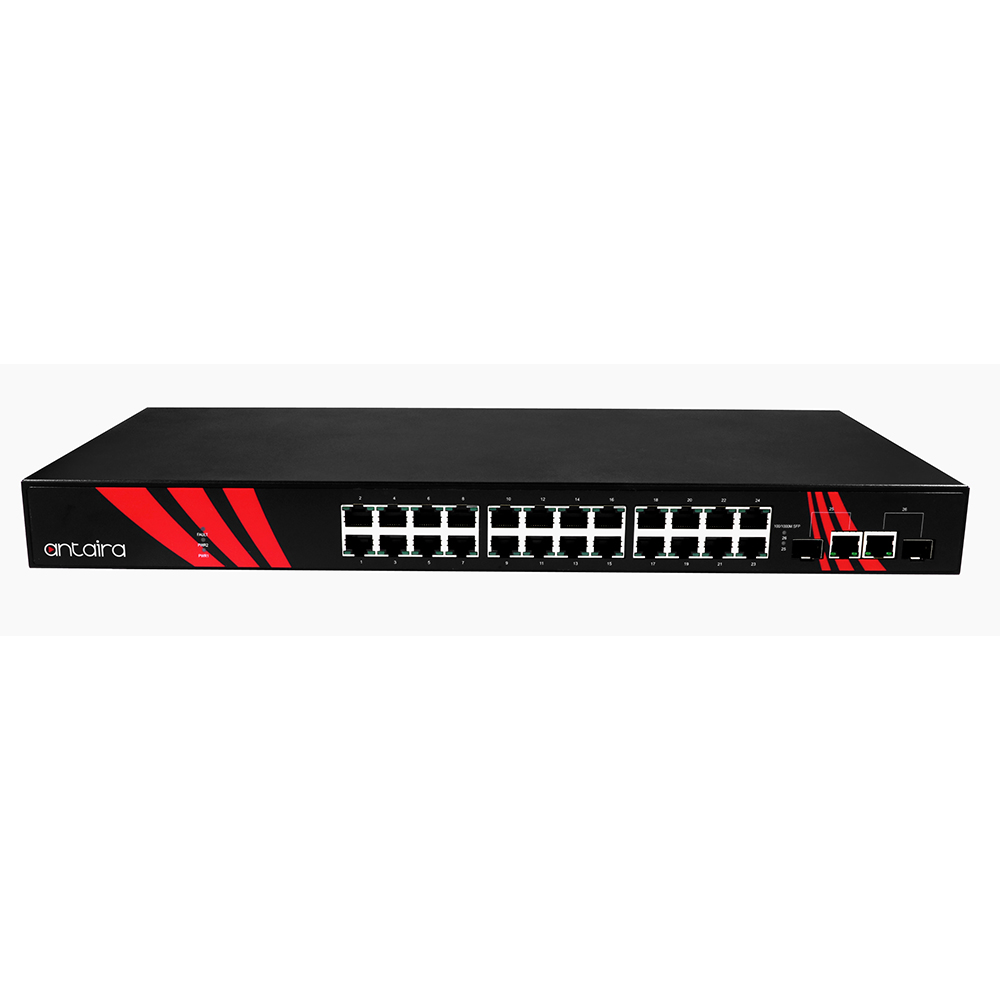

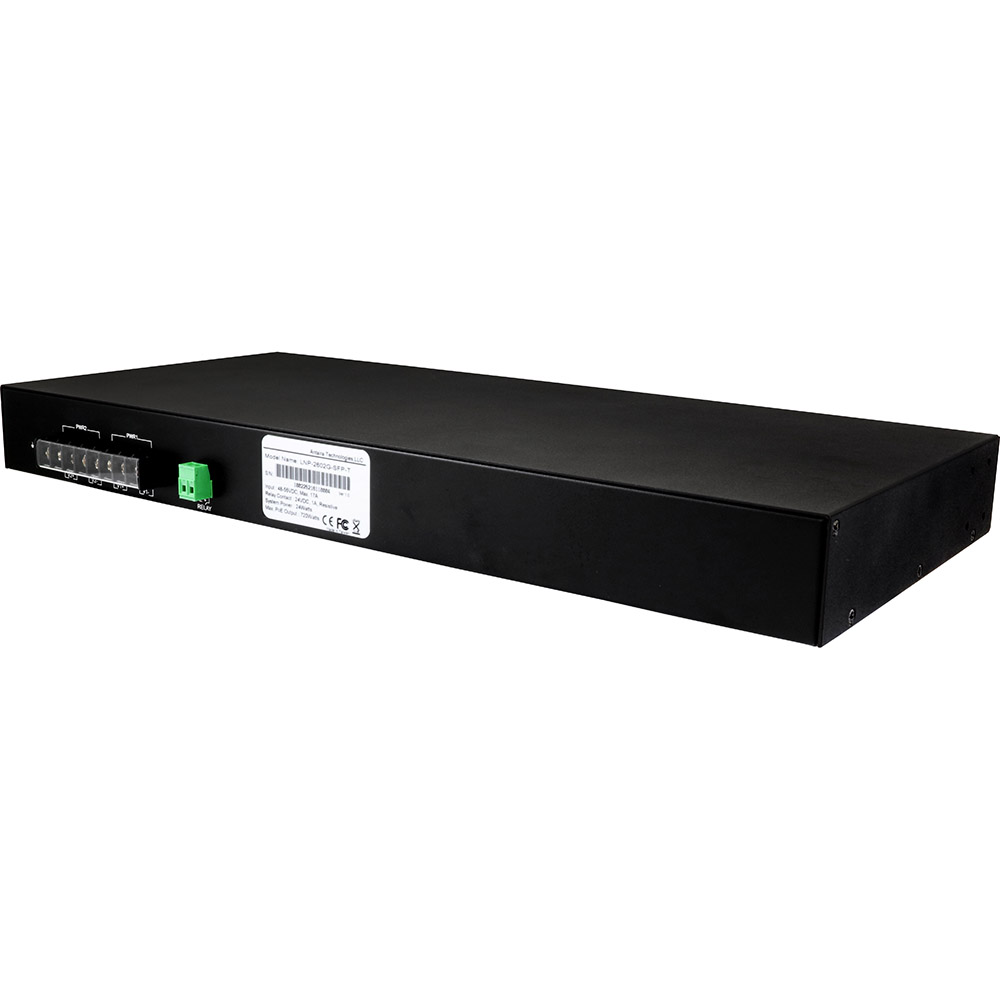

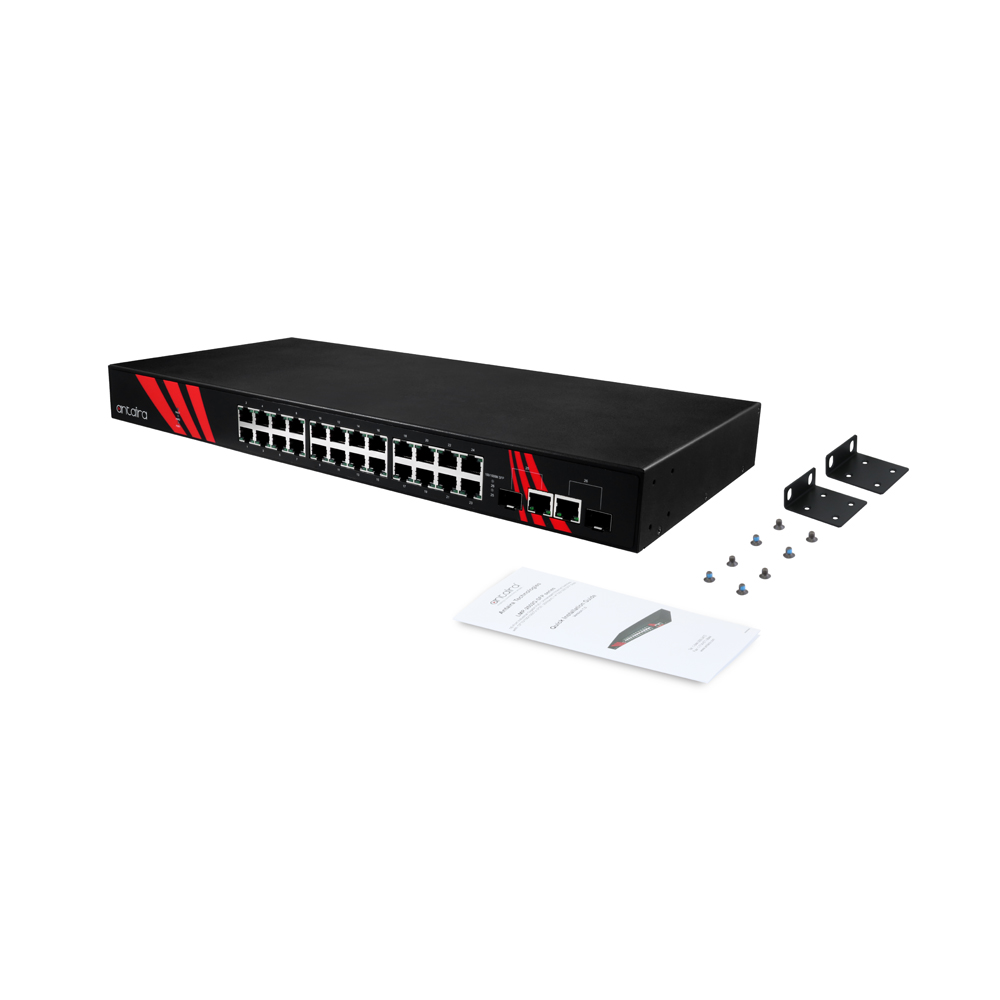

Switch: 24 x 10/100/1000BaseT(X) PoE+, 2 x 10/100/1000BaseT(x) / 2 x SFP, -10 kuni 70°C, mittemanageeritav, rackitav, 48-55VDC

Switch: 24 x 10/100/1000BaseT(X) PoE+, 2 x 10/100/1000BaseT(x) / 2 x SFP, -10 kuni 70°C, mittemanageeritav, rackitav, 48-55VDC

Dimensions	440 x 44 x 200 mm (W x H x D)
Ethernet Port	2410/100/1000Tx RJ45 (w/24PSE: 30W/Port)
Flow Control	IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration	IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Gigabit Combo Port	2RJ45 Ports w/10/100/1000Tx Ethernet and 2100/1000 SFP Slot
Housing / Mounting	Metal, IP40 protection / 1U 19" Rackmount
Input Voltage	48~55VDC, Redundant Input
Jumbo Frame	9.6Kbytes
MAC Table Size	8K
Memory Buffer	4Mbits
Operating Temperature	STD: -10° to 70° C
Overload Current Protection	Present (Slow-Blown Fuse)
PoE Pin Out	V+, V+, V-, V- for pins 1,2,3,6 Endspan, MDI/MDIX Alternative A
PoE Power Output	30 Watts max. per PoE port
Power Consumption	24 Watts for System
Processing Type	Store and Forward
Protocols	CSMA/CD
Relay	24VDC, 1A resistive
Reverse Polarity Protection	Yes
Safety	UL 61010-1, UL 61010-2-201
Standards	IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3af/at Power over Ethernet
Switching Architecture	Back-Plane: Non-Blocking Switching Fabric
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Warranty	5 Years
Wavelength	Refer to SFP module

1 700,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_LNP-2602G-SFP series_Datasheet_v1.1.pdf

Manufacturer Part Number: LNP-2602G-SFP
Tootekood: EE-100-169-995

Spetsifikatsioon

Weight

2.72 kg
