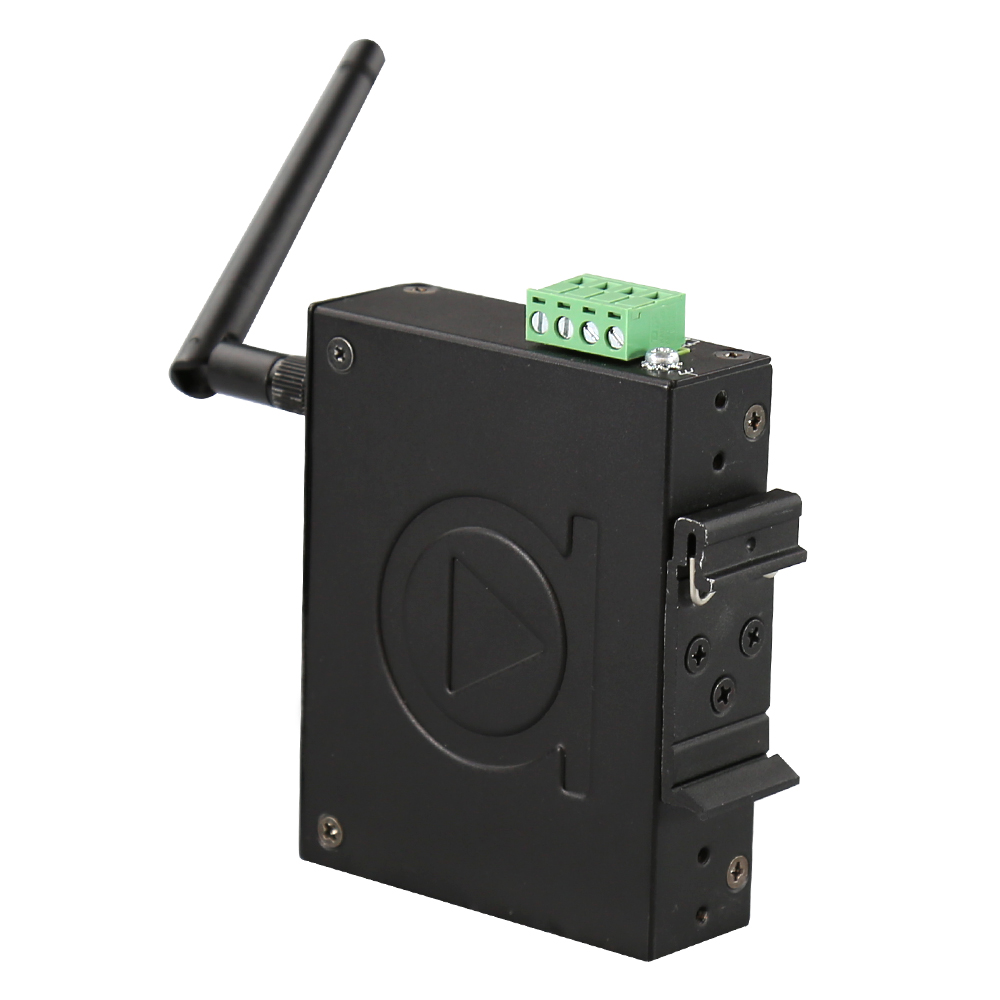

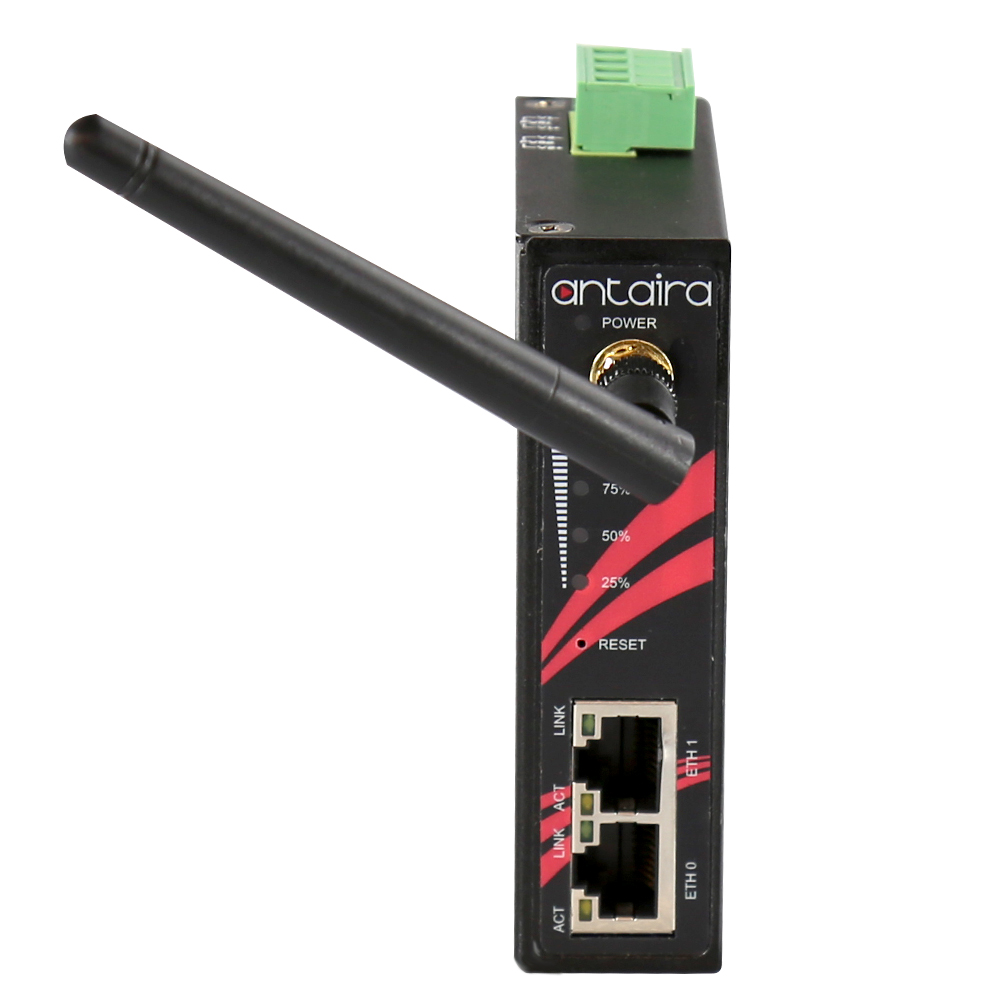

Tööstuslik 802.11a/b/g/n WiFi Access Point/Client/Bridge/Repeater, -35 kuni 75°C

Tööstuslik 802.11a/b/g/n WiFi Access Point/Client/Bridge/Repeater, -35 kuni 75°C

Ambient Relative Humidity	10% to 90%, (non-condensing)
Antenna	One External SMA Antenna: 3dBi for 2.4GHz (SISO)
Casing Enclosure	IP 30 Protection
Certification	FCC
Connector	RJ45
Dimensions	26 x 95 x 75 mm (W x H x D)
EMI	FCC Part 15 Subpart B CE EN 55032, EN301489-1/-17 FCC Part 15 subpart B CNS13438 AS/NZS CSIPR 32
EMS	CE EN 55024 IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) IEC61000-4-11
Encryption Security	WPA, WPA2, TKIP, AES
Ethernet Port	2*10/100BasetT(X), auto negotiation speed, Full/Half Duplex Mode
Frequency Range	IEEE 802.11b/g/n (2.4GHz) US/TW: 2.412G~2.462GHz EU/AU/NZ: 2.412G~2.472GHz
Green	RoHS Compliant
Isolation Protection	Built-in 1.5KV Magnetic Isolation
Operating Humidity	5% to 95% (Non-condensing)
Operating Temperature	-40°C to 75°C (-40 to 167°F)
Power Consumption	2 Watts
Power Input	9 - 48 VDC in 4 pin Terminal Block, Dual Power
Protocols	IP, TCP, UDP, ARP, BOOTP, ICMP, HTTP, HTTPS, DNS Proxy, NTP, RADIUS, Dynamic DNS, SNMP
Reverse Polarity Protection	Present
RF	FCC Part 15 Subpart C/E CE-RED EN300328 EN301893 EN301489-1/-17 LP0002 AS/NZS 4268
RF Radiation Exposure	EN62311 FCC Part 2.1091
Safety	EN60950-1 CNS14336-1
Storage Temperature	-40° C to 90° C
Transmit Power	21 dB
Weight	Unit: 0.60 lbs. Shipping: 1.0 lbs.

390,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_AMS-2111 series_Datasheet-v1.0.pdf

Manufacturer Part Number: AMS-7131
Tootekood: EE-100-169-718

Spetsifikatsioon

Weight

0.27 kg
