| Mechanical | |
|
Height |
0.98 in. (25 mm.) |
|
Width |
3.94 in. (100 mm.) |
|
Depth |
3.94 in. (100 mm.) |
| Environmental | |
|
Operating Temperature |
0° to 40° / 32° to 104° |
| Power | |
|
Operating Voltage |
5V @ 2.5A |
| Video | |
|
Resolutions |
Maximum 1920 x 18080 @ 60Hz |
| Standards | |
|
Approved Agency |
CE, FCC |
| Connections | |
|

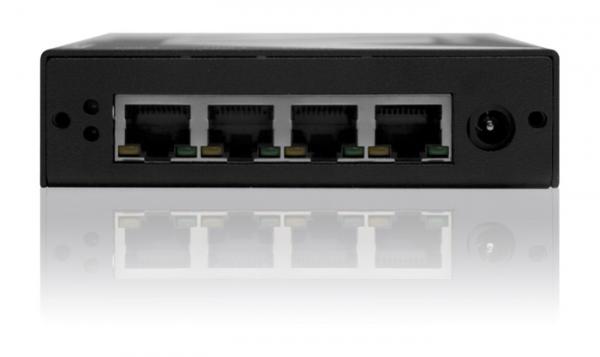

Tx Connections |
2 x 15-pin VGA, 4 x RJ45; 1 x Power |
Note: Recommended cables are CAT7 shielded foiled twisted pairs.
Category 6a or better shielded twisted pair cable must be used to connect the transmitter and receiver units in order to maintain compliance with energy emission regulations and ensure a high level of immunity to electromagnetic disturbances.
