Laiendab HDMI 4K (3840x2160p60Hz 4:2:0) või VGA (max 1920x1200) videosignaale Gigabit IP-võrgu kaudu
-

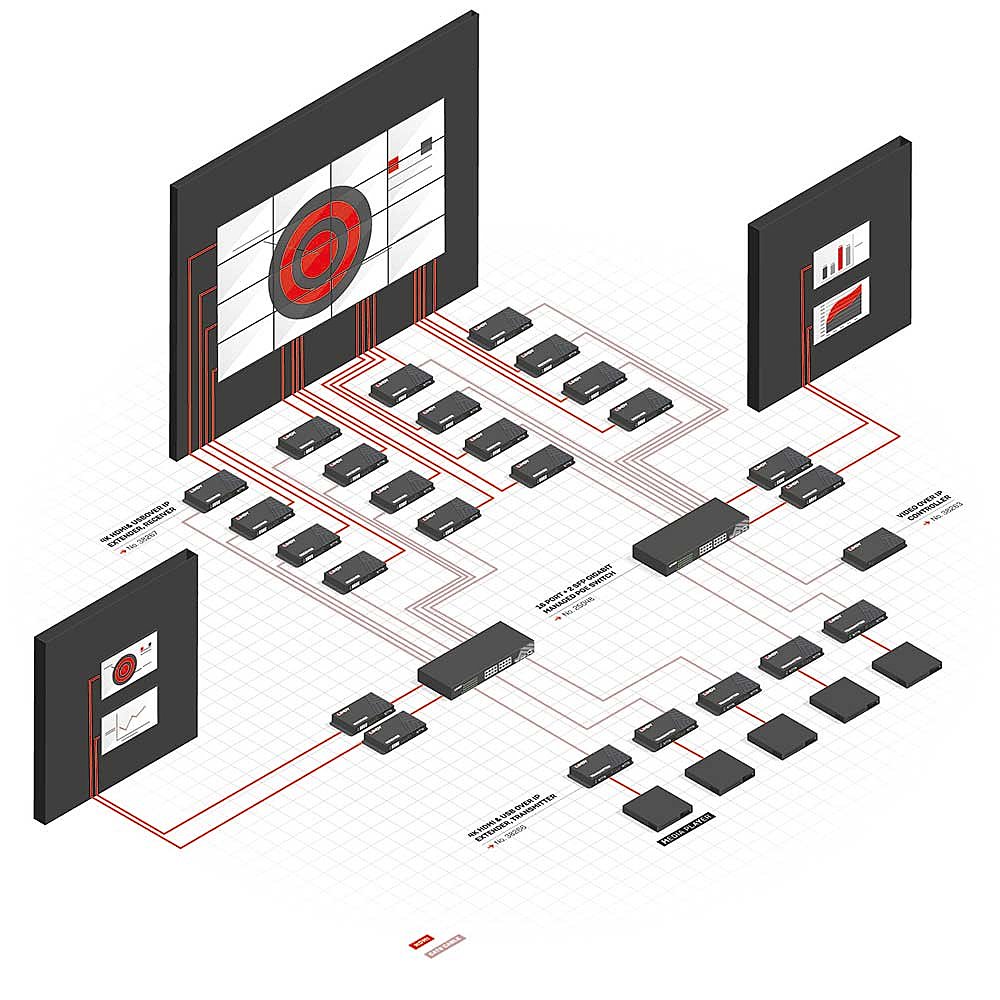

Toetab punkt-punkti paigaldamist kuni 100m ja punktpunkti paigaldamist Gigabit Switchi abil (ka video seina loomiseks)
-
Laiendab USB 2.0, USB HID (KVM funktsioonide jaoks), kahesuunaline analoogheli, kahesuunaline IR ja RS232 signaal
-
HDMI 2.0 ja HDCP 2.2/1.4 ühilduvad
-
Vastuvõtja LIN38267
Specifications
-
AV Interface: HDMI & VGA
-
Console Interface: USB
-
Interfaces Standard: HDMI 2.0, USB (HID) and USB 2.0
-
Supported Bandwidth: 10.2Gbps
-
Maximum Distance: 100m (393.7ft) (Point to Point)
-
Maximum Resolution: 3840x2160 60Hz 4:2:0 8bit (VGA Max 1920x1200 60Hz)
-
HDCP Support: HDCP 1.4 and 2.2
-
Supported Audio: Audio supported over HDMI signal and 2 analog bidirectional (1 x Audio and 1 x Microphone)
-
Separate Audio Ports: 2 x 3.5mm (Female)
-
Transmission Protocol: IP
-
Transmission Medium: Cat.6
-
Laser Class (only for Fibre): -
-
Wavelength (only for Fibre): -
-
Special Features: Video Wall Function (up to 16x16 screens), VGA Input & Output support (max. resolution 1920x1440), Bidirectional IR and Serial RS232 Extension
Connectors
-
Transmitter KVM Interfaces: HDMI (Female), 2 x VGA (Female), 1 x USB 2.0 Type B (Female), 2 x 3.5mm Audio (Female)
-
Transmitter Extension Port: RJ45 Gigabit Ethernet (PoE support)
-
Receiver Consolle Interface: -
-
Receiver Extension Port: -
-
Bidirectonal Ports: 1 x DB9 (Male) for RS232
-
Other Interfaces: 2 x 3.5mm (Female) for bidirectional IR
-
Power: 5.5/2.1 mm DC socket
Physical Properties
-
Dimensions (approx.) WxDxH: 232x25x108mm (9.13x0.98x4.25in)
-
Housing Material: Metal
-
Net Weight: 0.67kg (1.48lb)
-
Operating Temperature: 0°C - 40°C (32°F - 104°F)
-
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
-
Humidity: 20 - 90% RH (non-condensing)
-
Power Requirements: 5VDC 2.4A
-
Colour: Black
Miscellaneous
-
Packaging Type: Carton box
-
Packaging Dimensions: 225x190x80mm (8.86x7.48x3.15in)
-
Gross Weight: 1.146kg
Package Contents
1x 4K HDMI & USB Over IP Extender - Transmitter
1x IR Receiver
1x IR Transmitter
1 x Multi-Country Power Supply (EU, UK, US, AUS)
LINDY Manual
