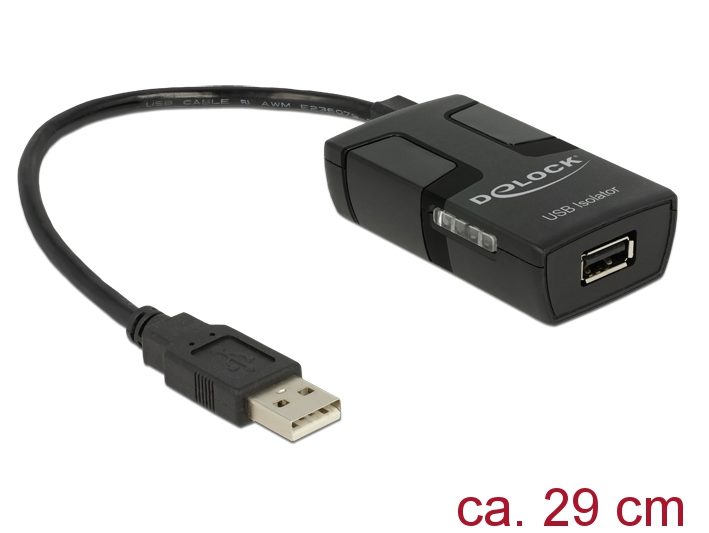

Delock USB-muundur eraldab elektrilise ühenduse Host-PC ja USB-seadme vahel. Galvaaniline eraldamine väldib häirivaid helihäireid ja ebatäpseid mõõtmistulemusi laboratooriumis. Kompaktne seade toetab USB 1.1 spetsifikatsiooni madala ja täiskiirusega.
• Connector:
1 x USB 1.1 type-A male (host)
1 x USB 1.1 type-A female (device)
1 x DC jack
• Data transfer rate up to Full-Speed 12 Mb/s
• LED indicator for power
• 5 kV optical isolation for data
• 3 kV optical isolation for power
• Power supply: Bus-powered or Self-powered, Bus-powered up to 320 mA
• Operating temperature: -20 °C ~ 50 °C
• Housing material: plastic
• Dimensions (LxWxH): ca. 66 x 39 x 20 mm
• Cable length: ca. 15 cm
• OS independent, no driver installation necessary
Specification of power connector
• 5 V, ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 9.5 mm
System requirements
• PC or notebook with a free USB port
