24 x Gigabit PoE+ porti
4 x 10G SFP+ pesa
370W PoE võimsuse eelarve
Lihtne veebipõhine haldusliides
Kaugjuhtimine pilvepõhiselt TRENDnet Hive'i abil (lisatasu kehtib)
Toetab IPv6, LACP, VLAN, QoS ja IGMP/MLD Snoopingi
IPv4/IPv6 staatilise marsruutimise tugi
Ribalaiuse kontroll pordi kohta
Era-, multisaate- ja hääl-VLANi tugi
Nutikad ventilaatorid
128 Gbps lülitusvõimsus
IEEE 802.1p QoS koos järjekordade ajastamise toetusega
NDAA / TAA nõuetele vastav (ainult USA ja Kanada)
Standards
IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ae
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
Device Interface
24 x Gigabit PoE+ ports
4 x 10G SFP+ slots
LED indicators
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
10G SFP+: 20Gbps (full duplex)
Performance
Switch fabric: 128Gbps
RAM buffer: 1.5MB
MAC Address Table: 16K entries
Jumbo Frames: 12KB
HOL Blocking Prevention
Forwarding rate: 95.2Mpps (64-byte packet size)
Management
CLI (Telnet / SSHv2) for basic administration
HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP and LLDP-MED
Virtual Cable Diagnostics Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
Dual image and configuration
TC Root/Protect
MIB
IP Forward Table MIB RFC 1354
RMON MIB RFC 1271
IPv4 MIB RFC 1213
IPv6 MIB RFC 2465
GVRP MIB IEEE 802.1Q-VLAN
LA MIB IEEE 802.3ad
LLDP MIB IEEE 802.1ab
IGMP Snooping MIB RFC 2933
MLD Snooping MIB RFC 3019
Private VLAN MIB IEEE 802.1Q
DHCP SNOOP MIB RFC 2026
QoS MIB RFC 4323
SNMP MIB RFC 3415
STP MIB RFC 4318
PNAC MIB IEEE 802.1x
VLAN MIB IEEE 802.1q
DNS MIB RFC 1611
ACL MIB
Bandwidth CTRL MIB
LBD MIB
Mirror MIB
IPv6 NEIGHBOR MIB
SNTP MIB
Storm CTRL MIB
Statistics MIB
Tool MIB
Voice VLAN MIB
DoS MIB
Spanning Tree
IEEE 802.1D STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
Static Link Aggregation
802.3ad Dynamic LACP
Quality of Service (QoS)
802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
MAC-based VLAN
Protocol-based VLAN
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)
Multicast
IGMP Snooping v1, v2, v3 (per VLAN)
MLD Snooping v1, v2
IGMP fast leave
MVR (Multicast VLAN Registration)
Static Multicast Address
Up to 256 multicast entries
Port Mirror
RX, TX, or Both
Many to one
Access Control
802.1X Port-Based Network Access Control, RADIUS, TACACS+
Local Dial-in User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS)
IP MAC port binding
Dynamic ARP inspection
Block unknown multicast
ACL IPv4 L2-L4 & IPv6
MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only)
Layer 3 Features
IPv4 / IPv6 static routing
IP interfaces: Up to 6
Routing table entries: Up to 32 (IPv4 / IPv6)
ARP table (up to 128 entries)
Inter-VLAN routing
Compatibility
Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server Compatibility
Special Features
10G SFP+ slots
PoE+
Smart Fans
IPv6
802.3az power saving
Rack mountable
Power

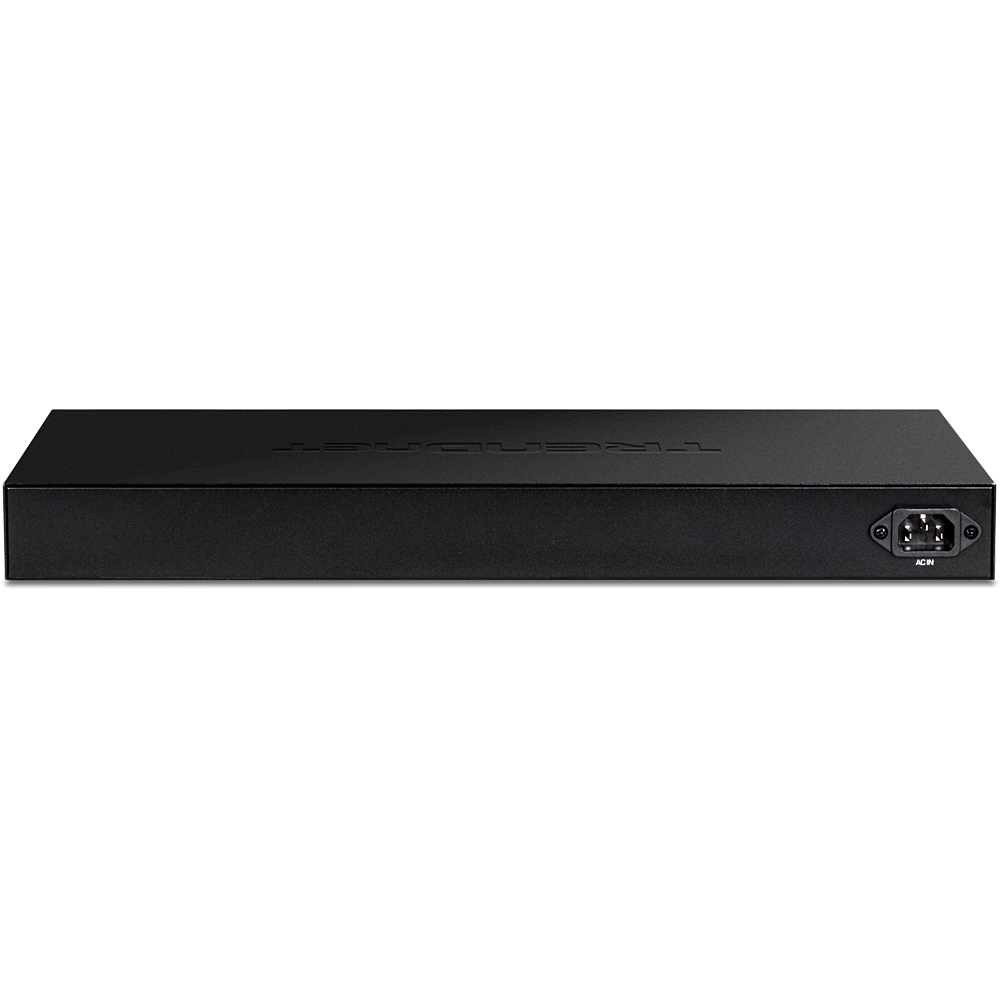

Input: 100 - 240V AC, 50/60Hz, internal power supply
Max. Consumption: 23.7W (no PoE load)
PoE
Power Budget: 370W
Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Fan/Acoustics
Quantity: 2
Noise Level: 52.2dB(A) (max.)
MTBF
287,724 hours
Operating Temperature
-5° – 50°C (23° – 122°F)
Operating Humidity
Max. 95% non-condensing
Dimensions
440 x 249 x 44mm (17.3 x 9.8 x 1.74 in.)
Rack mountable 1U height
Weight
3.94kg (8.69 lbs.)
Certifications
CE
FCC
