VGA pikendaja, läbi catx kuni 300m, USB ja Audio, 2xVGA, FullHD kuni 300m, saatja+vastuvõtja

VGA pikendaja, läbi catx kuni 300m, USB ja Audio, 2xVGA, FullHD kuni 300m, saatja+vastuvõtja

Metering
Video Resolution	Video resolution up to 1920x 1200 at 60Hz
Extension Distance	200 meters using CAT5 Trunk cable 250 meters using CAT5e Trunk cable 300 meters using CAT6 Trunk cable 300 meters using CAT7 Trunk cable 200 meters using CAT7a Patch cable
Audio (end to end)	2 channel 16 bit Audio @ 44.1 KHz THD+N typically -80dB at 1kHz SNR typically 85dB at 1kHz
O/S Compatibility	Operating system independent

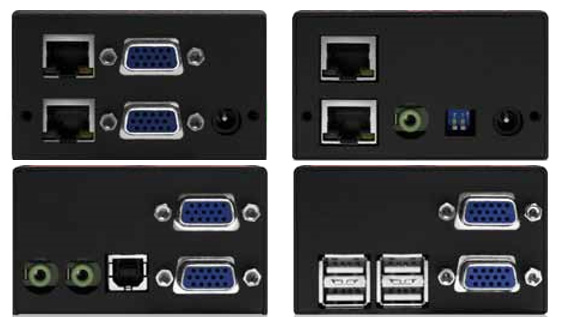

Connectors
Local	4 x 15 Pin D Type VGA, 1 x USB B, power jack, 2 x 3.5 mm jack socket and 2 x RJ45
Remote	2 x 15 Pin D Type VGA, 4 x USB A, power jack, 3.5mm jack socket and 2 x RJ45
Physical Design
Local	All metal case, 122mm / 4.7' (w) x 75mm / 3'(d) x 48mm / 2' (h) 500g / 1.1 lb.
Remote	All metal case, 162mm / 6.4' (w) x 75mm / 3'(d) x 48mm / 2' (h) 650g / 1.4 lb.
Operating Temperature	0°C to 40°C / 32°F to 104°F
Approvals	CE, FCC class A

1 384,72 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: X-USBPRO-MS2
Tootekood: EE-100-168-662

Spetsifikatsioon

Weight

0.5 kg
