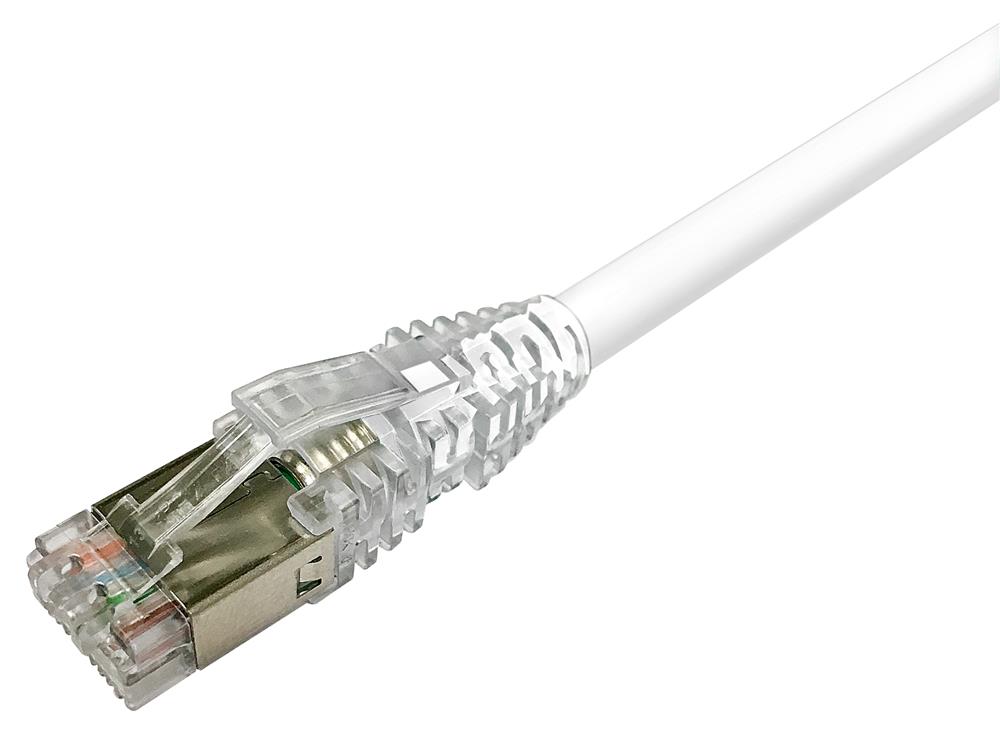

Võrgukaabel Cat6 S/FTP 2.0m, valge, PiMF, LSZH

Product Classification
Portfolio	NETCONNECT®
Product Series	NPC
Product Type	Twisted pair patch cord
Regional Availability	Asia \| EMEA

Body Features
Cable Color	White
Shield Style	S/FTP
Conductor Type	Stranded
Shield Material	Nickel plated brass
Strain Relief Type	Slim-line \| Transparent

Configuration Features
Configuration	Double-ended
Keyed	No
Number of Positions	4-pair
Wiring Pattern	T568B

Dimensions
Length	2.00 m \| 6.56 ft
Overall Outside Cable Diameter	5.90 mm \| 0.23 in
Wire Size (CMA)	26 AWG

Electrical Specifications
ANSI/TIA Category	6

General Specifications
Interface, connector A	RJ45 plug
Interface, connector B	RJ45 plug

Industry Standards
Approved Standards	UL 1863
Flammability Rating	LSZH

Operation/Application
Plug Insertion Cycles (>=)	750 cycles

Packaging Features
Packaging Method	Bag
Packaging Quantity	1

Product Type Features
Assembly Type	Plug to Plug
Cable Assembly Category	Industry Standard
Cable Type	Twisted Pair
Shielded	Yes

Usage Conditions
Operating Temperature Range	-20 – 60 °C \| -4 – 140 °F

Regulatory Compliance/Certifications

Agency	Classification
RoHS 2011/65/EU	Compliant

9,16 € (ilma km-ta)

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Manufacturer Part Number: NPC06SZDB-WT002M
Tootekood: EE-100-169-622
