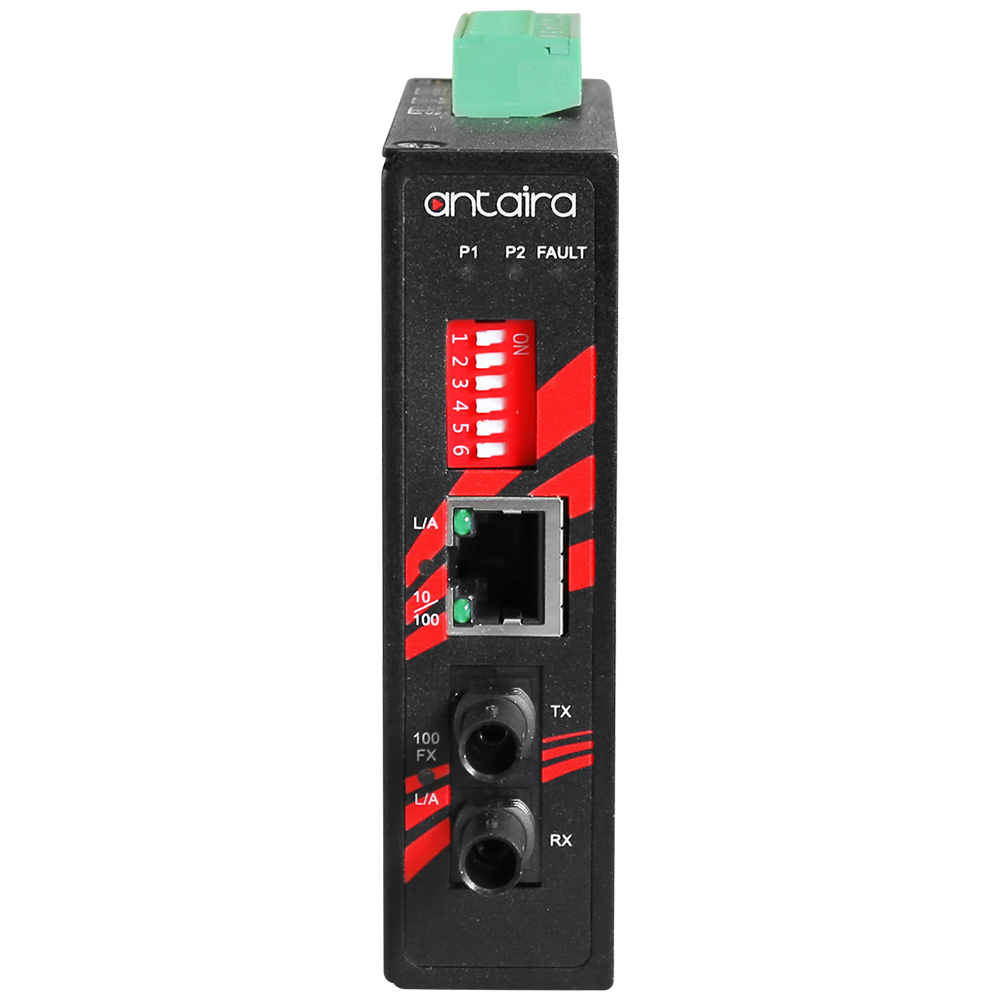

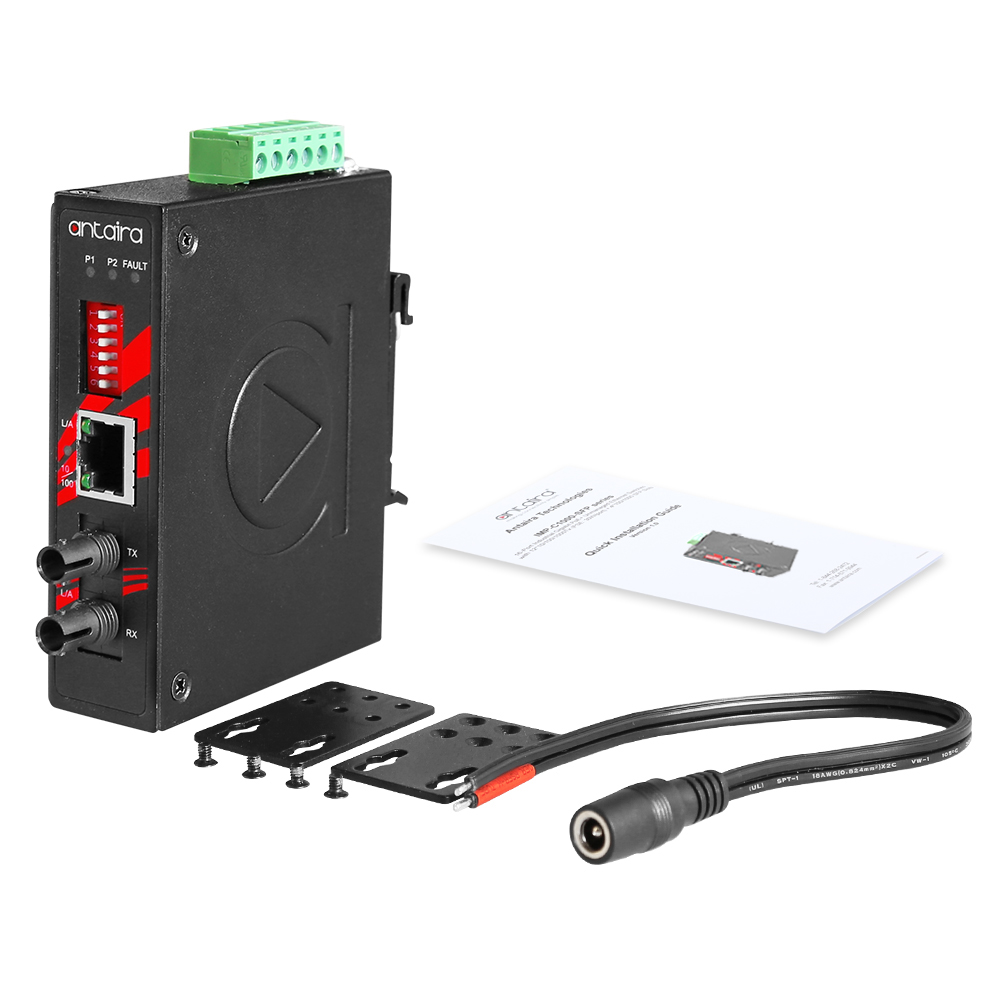

Tööstuslik PoE+ konverter: 10/100T(X) to 100FX ST MM, -10° kuni 70°C, kompaktne, DIN

Ambient Relative Humidity 5% to 95%, (non-condensing)
Certifications FCC, CE,
UL 61010-1 (Pending),
UL 61010-2-201 (Pending)
Dimensions 26 x 95 x 75 mm (W x H x D)
EMI FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
EMS CE EN 55024 Class A
EN 61000-6-2 Class A
IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field)
Ethernet Port 1*RJ45 Port w/10/100T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port 1*100Fx SC/ST type connector
Multi-mode: 50/125um or 62.5/125um
Single-mode: 9/125um or 10/125um
Flow Control IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Green RoHS Compliant
Housing Metal, IP30 protection
Input Voltage 48 to 55VDC, Redundant Inputs
LED Indicators Power 1, Power 2, Fault:: On / Off
Fiber Port: Link / Act
Ethernet Port: Link / Act
PoE: On-connected to PD devices
Max. PoE Power Budget 30Watts
Memory Buffer 128kbits
Mounting DIN-Rail Mounting, Wall Mounting
Operating Temperature STD: -10°C to 70°C
Overload Current Protection Present
Power Connection 1 removable 6-contact terminal block
Power Consumption 2.4Watts for Systems
Processing Type Store and Forward
Protocols CSMA/CD
Relay Contact 24VDC, 1A resistive
Reverse Polarity Protection Present
Standards IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3af/at Power Over Ethernet
Storage Temperature -40°C to 85°C
Warranty 5 Years
Wavelength Depends on fixed fiber modules
Weight Unit: 0.661 lb.
Shipping: 0.903 lb.
245,00 € 245,00 € (ilma km-ta)

  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
Antaira_IMP-C100-XX series_Datasheet-v1.0.pdf

Manufacturer Part Number: IMP-C100-ST-M
Tootekood: EE-100-169-819

Spetsifikatsioon

Weight 0.43 kg
