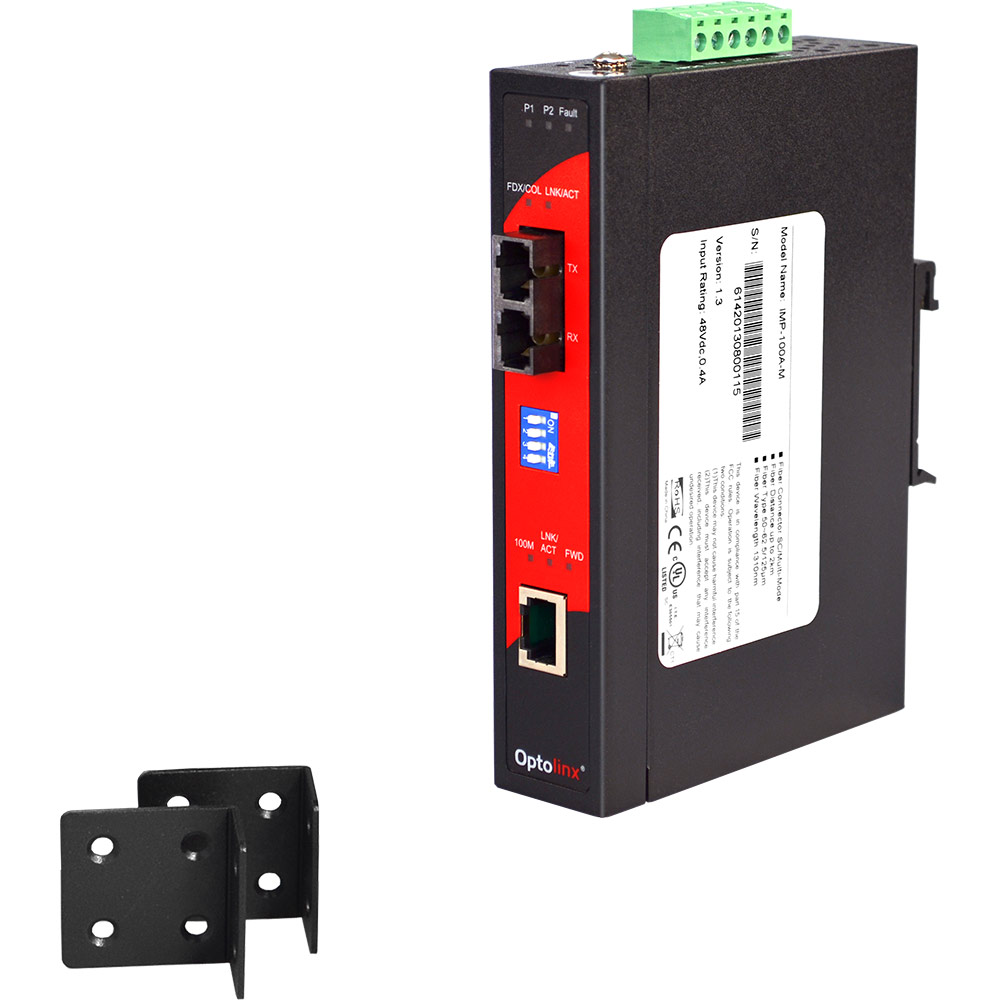

Tööstuslik PoE konverter: 10/100T(X) to 100FX SC SM kuni 30km, -40° kuni 80°C, DIN

Tööstuslik PoE konverter: 10/100T(X) to 100FX SC SM kuni 30km, -40° kuni 80°C, DIN

Approvals	EMI: FCC Class A CE EN6100-4-2/3/4/5/6/8/11 CE EN6100-6-2/4 Safety: UL, cUL, CE-EN60950 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Connector	SC (Single-Mode)
Dimensions	IP-30, 30 x 95 x 140 mm (1.18 x 3.74 x 5.51 inches)
Dip Switch	1. ON: Enables Port Alarm OFF: Disables Port Alarm 2. ON: Enables Link Loss Forward & Link Fault Pass Through OFF: Disables Link Loss Forward & Link Fault Pass Through 3. ON: 100BaseFX Half-Mode OFF: 100BaseFX Full-Mode 4. ON: Media Mode (100TX to 100FX) OFF: Switching Mode
Ethernet	10/100BaseT: 1 x RJ45 Connector
Fiber Core	Single-mode (30Km) - 9/125um ~ 10/125um
Humidity	5% ~ 90% non-condensing
IEEE	IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX/100BaseFX IEEE 802.3x Flow Control and Back-Pressure IEEE 802.3af Power over Ethernet
LED	Unit: Power(Green), Power1(Green), Power2(Green), Fault (Red) Fiber: Link/Act(Green), Full-Duplex/Collision(Yellow) Ethernet: Link/Act(Green), 100M(Yellow), Feeding Power (Green)
Link Loss Forward	(TX-Fiber) If TX port link down, will force Fiber port to link down (Fiber-TX) If Fiber port link down, will force TX port to link down
Operating Temperature	-40° ~ 80° C (-40° ~ 176° F)
Overload Current Protection	Present
Poe Pin Assignment	RJ-45 Port Supports IEEE 802.3af End-Point, Alt. A Mode Positive (VCC+): RJ-45 Pin 1, 2 Negative (VCC-): RJ-45 Pin 3, 6 Data (1, 2, 3, 6)
Power	DC 48V Redundant Power
Power Consumption	3.3W (w/o PoE) 16.4W (Full Load w/ PoE)
Reverse Polarity Power Protection	Present
Storage Temperature	-40° ~ 85° C
Switching Architecture	Store and Forward
Transfer Rate	14,880pps for Ethernet Port 148,800 for Fast Ethernet Port
Typical Distance	30 Km
Warranty	5 Years
Wave length	1310 nm

264,17 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

datasheet.pdf

Manufacturer Part Number: IMP-100A-S3-T
Tootekood: EE-100-169-810

Spetsifikatsioon

Weight

0.43 kg
