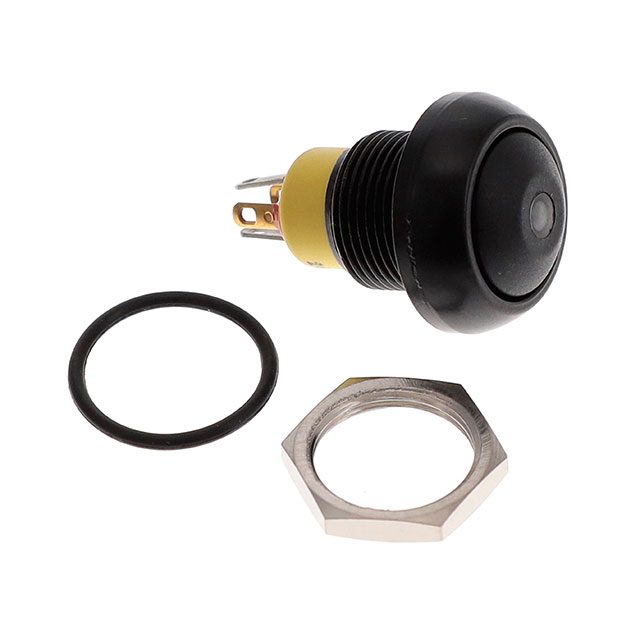

See mitmekülgne lüliti pakub silmapaistvat taktiilset tagasisidet, andes teile iga vajutusega kindla tunde. Saadaval on nii valgustusega kui ka valgustamata versioonid, mis pakuvad laia valikut konfiguratsioone, et rahuldada erinevaid rakendusvajadusi. Lüliti lame ümmargune aktuaator sobib ideaalselt kohandatud märgistuste jaoks.
Tänu IP67 ja IP69K tihendusele on see lüliti äärmiselt vastupidav veele ja tolmule, taludes isegi kõrgsurve pesu, mis teeb sellest suurepärase valiku karmidesse keskkondadesse.
Distinctive Features:
Illuminated or non-illuminated
Tactile feedback
Wide variety of configurations
Flat round actuator for optional marking
Sealed to IP67 and IP69K
General Specifications:
Panel thickness : 1,5 mm (.059) min. 5,5 mm (.217) max.
Total travel : 2,5 mm (.098) +/- 0,3 mm
Typical operating force : 10 N
Low level/mech. life : 200.000 cycles
Torque : 1,5 Nm max. applied to nut
Soldering : 320°C max. for 3 sec.
Environmental Specifications:
Front panel sealing : IP67 according to IEC 60529
Shock resistance : 100 g according to IEC 512-4, test 6c
Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d
Salt spray : IEC 512-6, test 11f
Robustness (non-illuminated) : IK06 according to EN 50102 (1 joule)
Operating temperature : -40°C to +85°C
Electrical Specifications:
Max. current/voltage rating with resistive load :4A 12VDC, 200.000 cycles1A 48VDC, 200.000 cycles2A 48VDC, 100.000 cycles3A 48VDC, 75.000 cycles1A 72VDC, 15.000 cycles
Initial contact resistance : 100 mΩ max.
Insulation resistance : 1 GΩ min. at 500VDC
Dielectric strength : 1.500 Vrms between terminals - 1.000 Vrms between terminals and frame
