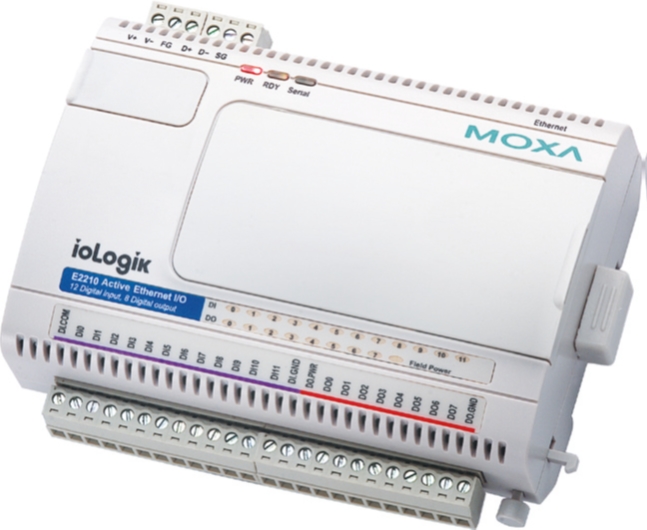

Ethernet Micro RTU kontroller, 12 x DI, 8 x DO

Ethernet Micro RTU kontroller, 12 x DI, 8 x DO

Our universal controllers and I/O products use Click&Go control logic, which includes our patented active monitoring technology and support for a versatile set of OT/IT protocols, to help you easily configure, deploy, and realize IIoT applications such as energy monitoring, facility monitoring, and machine OEM applications.
Control Logic

  • Language

    • Click&Go
Input/Output Interface

  • Digital Input Channels

    • 12

  • Digital Output Channels

    • 8

  • Buttons

    • Reset button

  • Isolation

    • 3k VDC or 2k Vrms

  • Rotary Switch

    • 0 to 9
Digital Inputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Counter Frequency

    • 900 Hz

  • Digital Filtering Time Interval

    • Software configurable

  • Dry Contact

    • On: short to GND
      Off: open

  • I/O Mode

    • DI or event counter

  • Points per COM

    • 12 channels

  • Sensor Type

    • Dry contact
      Wet Contact (NPN)

  • Wet Contact (DI to GND)

    • On: 0 to 3 VDC
      Off: 10 to 30 VDC
Digital Outputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Current Rating

    • 200 mA per channel

  • I/O Mode

    • DO or pulse output

  • I/O Type

    • Sink

  • Over-Current Protection

    • 0.65 A per channel @ 25°C

  • Over-Temperature Shutdown

    • 175°C (min.)

  • Over-Voltage Protection

    • 45 VDC (typical)

  • Pulse Output Frequency

    • 1 kHz
LED Interface

  • LED Indicators

    • PWR, RDY, Serial, I/O Status
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTP)
      Windows Utility (ioAdmin)

  • Industrial Protocols

    • CGI commands
      Modbus TCP Server (Slave)
      Moxa AOPC (Active Tag)
      MXIO Library
      SNMPv1 Trap
      SNMPv1/v2c/v3

  • Management

    • BOOTP
      IPv4
      SMTP
      DHCP Client
      HTTP
      TCP/IP

  • MIB

    • Device Settings MIB

  • Time Management

    • SNTP
Modbus TCP

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16

  • Mode

    • Server
Serial Interface

  • Connector

    • Terminal block

  • Serial Standards

    • RS-485

  • No. of Ports

    • 1

  • Baudrate

    • 1,200 bps to 115.2 kbps

  • Parity

    • None

  • Data Bits

    • 8

  • Stop Bits

    • 1

  • Flow Control

    • None
Serial Signals

  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features

  • Industrial Protocols

    • Modbus RTU Server (Client)
Power Parameters

  • Power Connector

    • Screw-fastened Euroblock terminal

  • No. of Power Inputs

    • 1

  • Input Voltage

    • 12 to 36 VDC

  • Power Consumption

    • 203 mA @ 24 VDC
Physical Characteristics

  • Dimensions

    • 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)

  • Weight

    • 250 g (0.55 lb)

  • Installation

    • DIN-rail mounting
      Wall mounting

  • Wiring

    • I/O cable, 16 to 26 AWG
      Power cable, 16 to 26 AWG

  • Housing

    • Plastic
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications

  • Freefall

    • IEC 60068-2-32

  • EMC

    • EN 61000-6-2/-6-4

  • Safety

    • UL 508

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 213,673 hrs

  • Standards

    • Telcordia SR332
Warranty

  • Warranty Period

    • 5 years
326,00 € 326,00 € (ilma km-ta)

  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
moxa-iologik-e2200-series-datasheet-v1.0.pdf

Manufacturer Part Number: ioLogik E2210
Tootekood: EE-100-184-120

Spetsifikatsioon

Weight 0.3757 kg
