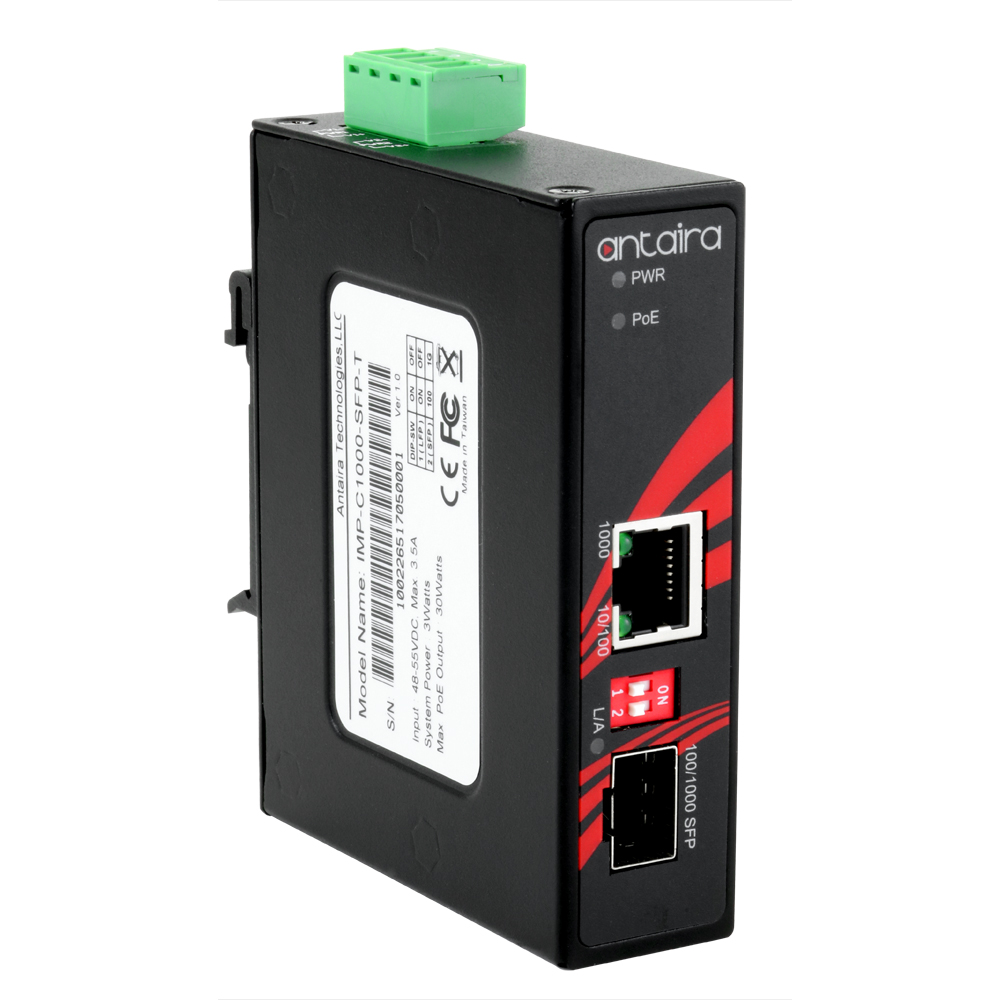

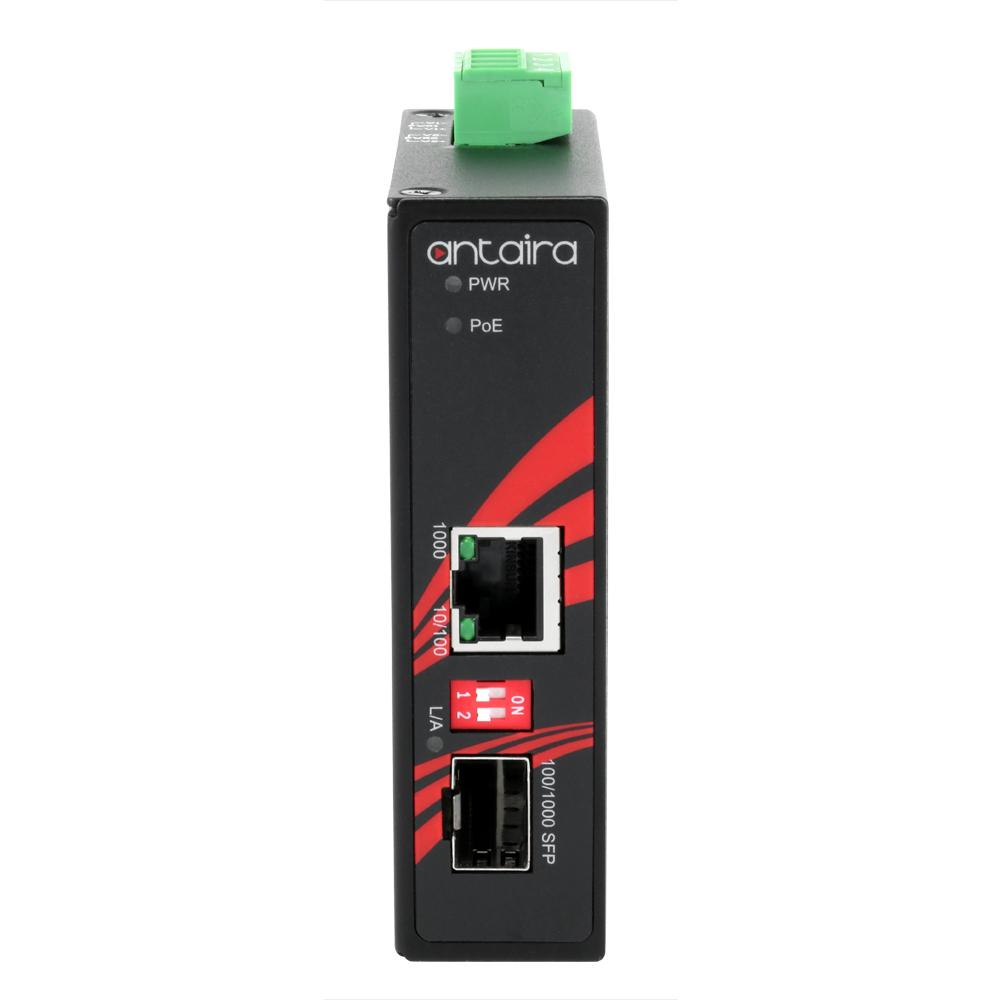

Tööstuslik PoE+ konverter: 10/100/1000T(X) to 100/1000 SFP, -10° kuni 70°C, kompaktne, DIN

Tööstuslik PoE+ konverter: 10/100/1000T(X) to 100/1000 SFP, -10° kuni 70°C, kompaktne, DIN

Certifications	FCC, CE, UL-61010-1, 61010-2-201
Dimensions	26 x 95 x 75 mm (W x H x D)
Dip Switch	DIP Switch 1: LFP (Link Fault Pass) Enable/Disable DIP Switch 2: SFP 100Mbps/1000Mbps
EMI	FCC Part 15 Subpart B Class A, CE EN 55022 Class A
EMS	IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Ethernet Port	1*RJ45 Port w/10/100/1000TX with PoE+, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port	1*100/1000 SFP Slot
Flow Control	IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration	IEC60068-2-32 / IEC60068-2-27 / IEC-60068-2-6
Green	RoHS Compliant
Housing / Mounting	Metal, IP30 protection / DIN-Rail Mounting, Wall Mounting
Input Voltage	48 to 55VDC, Redundant Inputs
Jumbo Frame	10K bytes
LED Indicators	Unit: PWR, PoE TX: Link/Act/Speed Fiber: Link/Act/Speed
MAC Table Size	8k
Memory Buffer	1Mbits
Operating Temperature	STD: -10°C to 70°C EOT: -40°C to 80°C
Power Connection	1 removable 4-contact terminal block
Power Consumption	3 Watts for System
Processing Type	Store and Forward
Protocols	CSMA/CD
Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3u 100Base-FX Fast Fiber IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3af/at Power over Ethernet
Warranty	5 Years
Wavelength	Depends on SFP modules
Weight	Unit: 0.55 lbs.; Shipping: 0.99 lbs.

289,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_IMP-C1000-SFP series_Datasheet-v1.1.pdf

Manufacturer Part Number: IMP-C1000-SFP
Tootekood: EE-100-169-811

Spetsifikatsioon

Weight

0.25 kg
