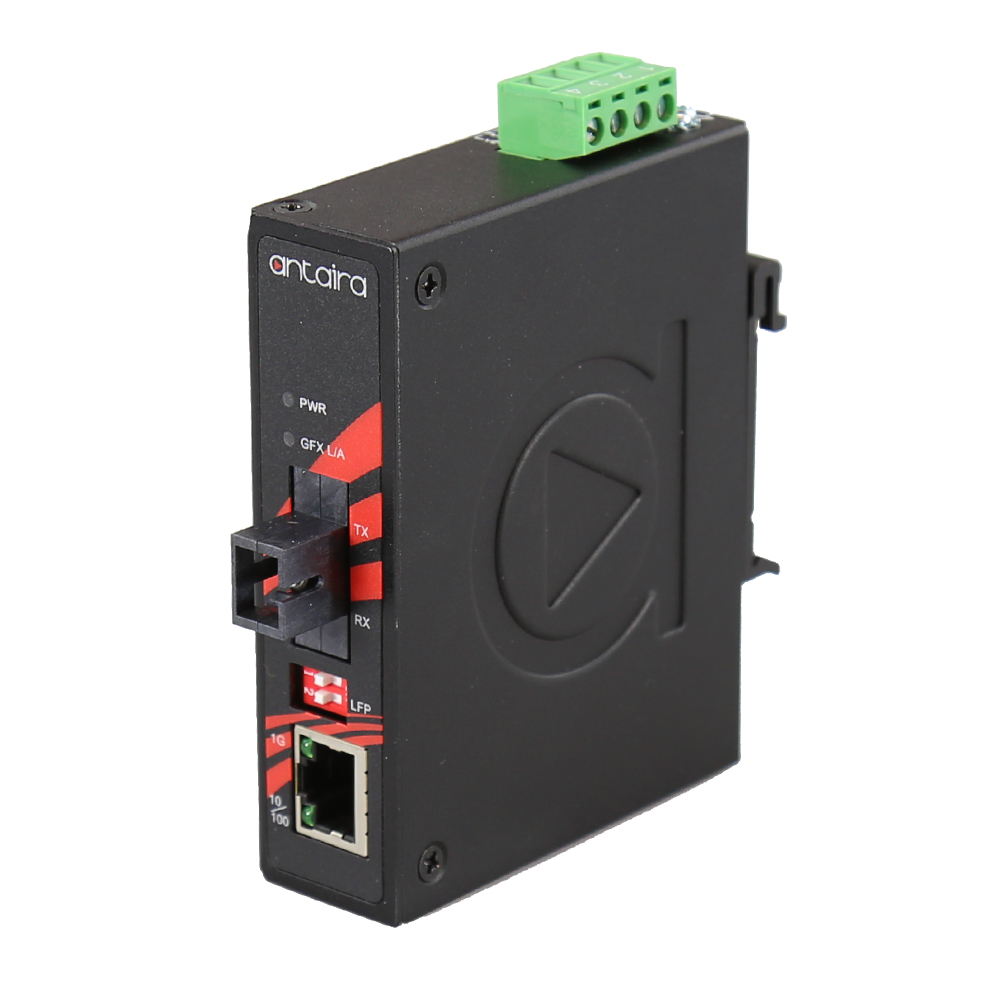

Tööstuslik konverter: 10/100/1000T(X) to 1000FX SC SM kuni 10km, WDM B, -40° kuni 80°C, kompaktne, DIN

Tööstuslik konverter: 10/100/1000T(X) to 1000FX SC SM kuni 10km, WDM B, -40° kuni 80°C, kompaktne, DIN

Ambient Relative Humidity	5% to 95%, (non-condensing)
Certifications	FCC, CE
Dimensions	26 x 95 x 75 mm (W x H x D)
EMI	FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Ethernet Port	1*RJ45 Port w/10/100/1000T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port	1*1000 SC/ST type connector Multi-mode: 50/125um or 62.5/125um Single-mode: 9/125um or 10/125um
Flow Control	IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration	IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Green	RoHS Compliant
Housing	Metal, IP30 protection
Input Voltage	12 to 48VDC, Redundant Input
Jumbo Frame	10K bytes
LED Indicators	Power (PWR): On / Off Fiber Port (GFX): Link / Act Ethernet Port: Link / Act
MAC Table Size	8K
Memory Buffer	1Mbit
Mounting	DIN-Rail, Wall Mounting (optional)
Operating Temperature	-40°C to 80°C
Overload Current Protection	Present
Power Connection	1 removable 4-contact terminal block
Power Consumption	2.2 Watts for system
Processing Type	Store and Forward
Protocols	CSMA/CD
Reverse Polarity Protection	Present
Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber
Storage Temperature	-40°C to 85°C
Warranty	5 Years
Wavelength	Depends on fixed fiber modules
Weight	Unit: 0.595 lb. Shipping: 0.86 lb.

435,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_IMC-C1000-XX series_Datasheet-v1.1.pdf

Manufacturer Part Number: IMC-C1000-WB-S1-T
Tootekood: EE-100-169-798

Spetsifikatsioon

Weight

0.25 kg
