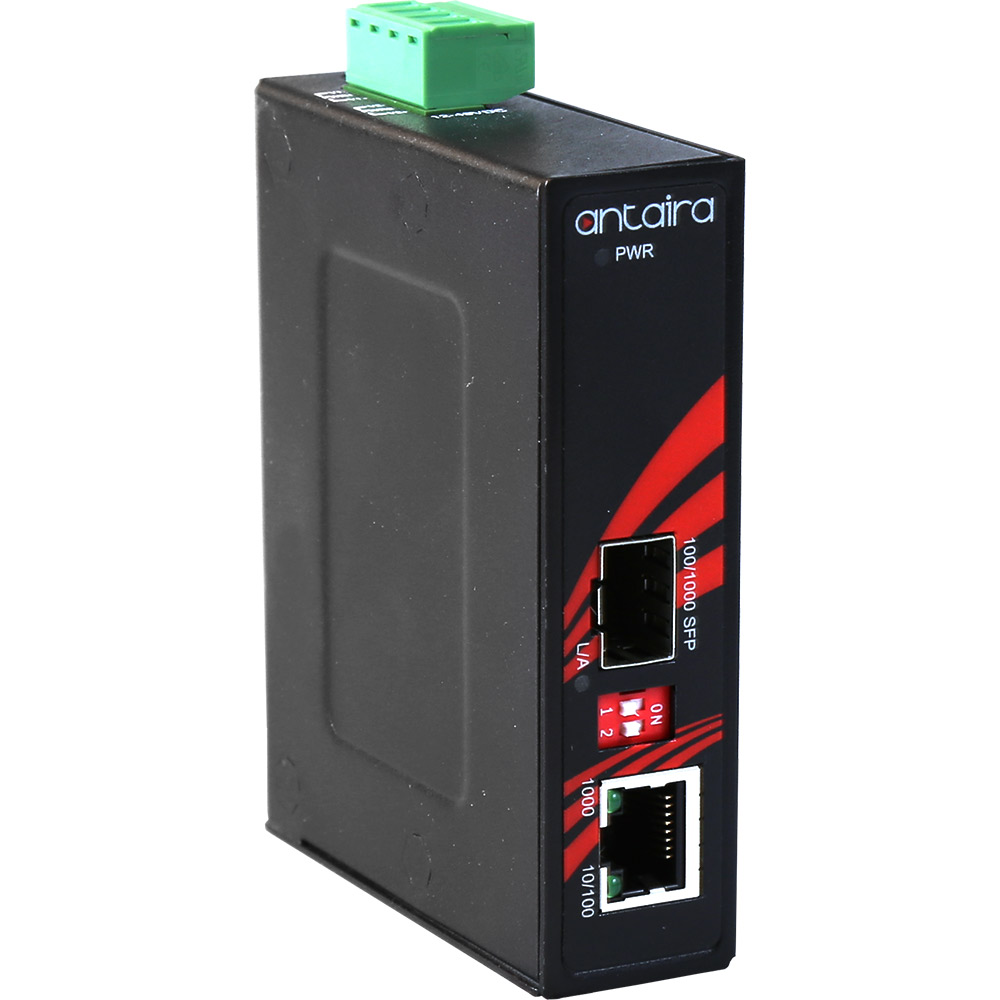

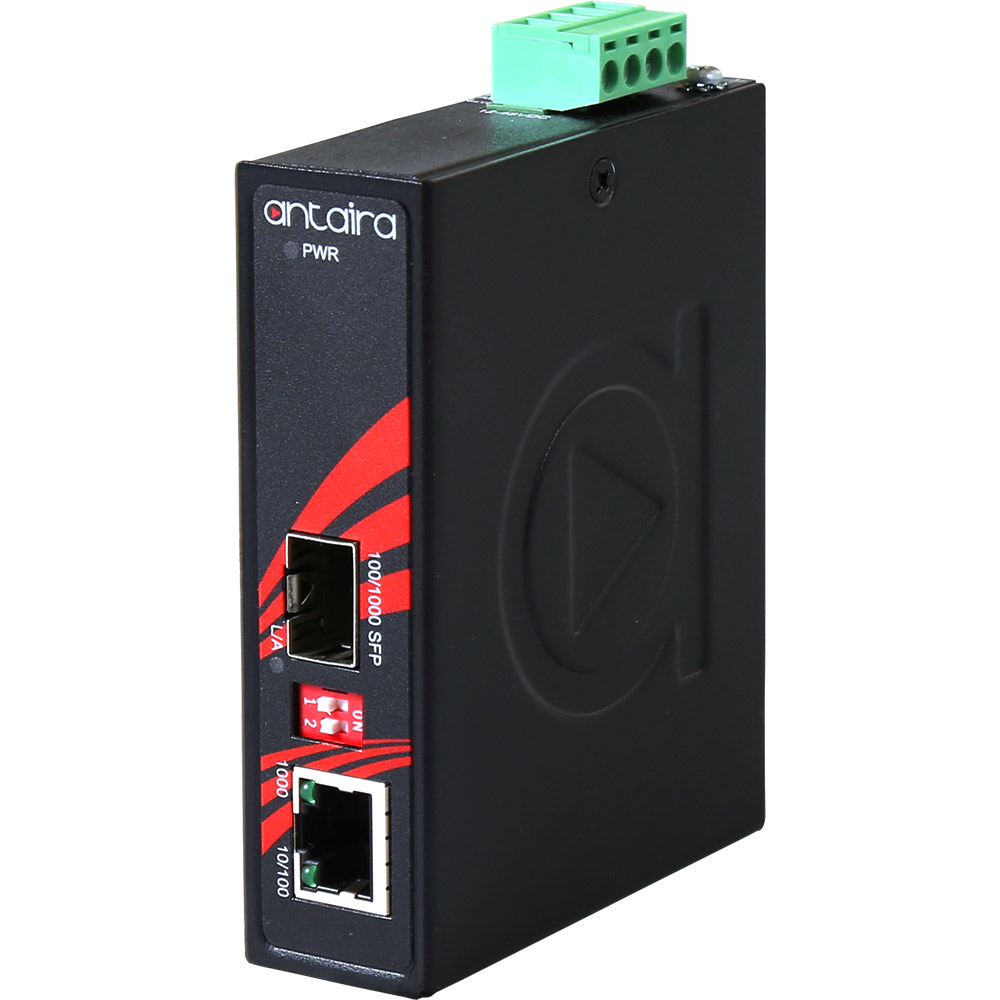

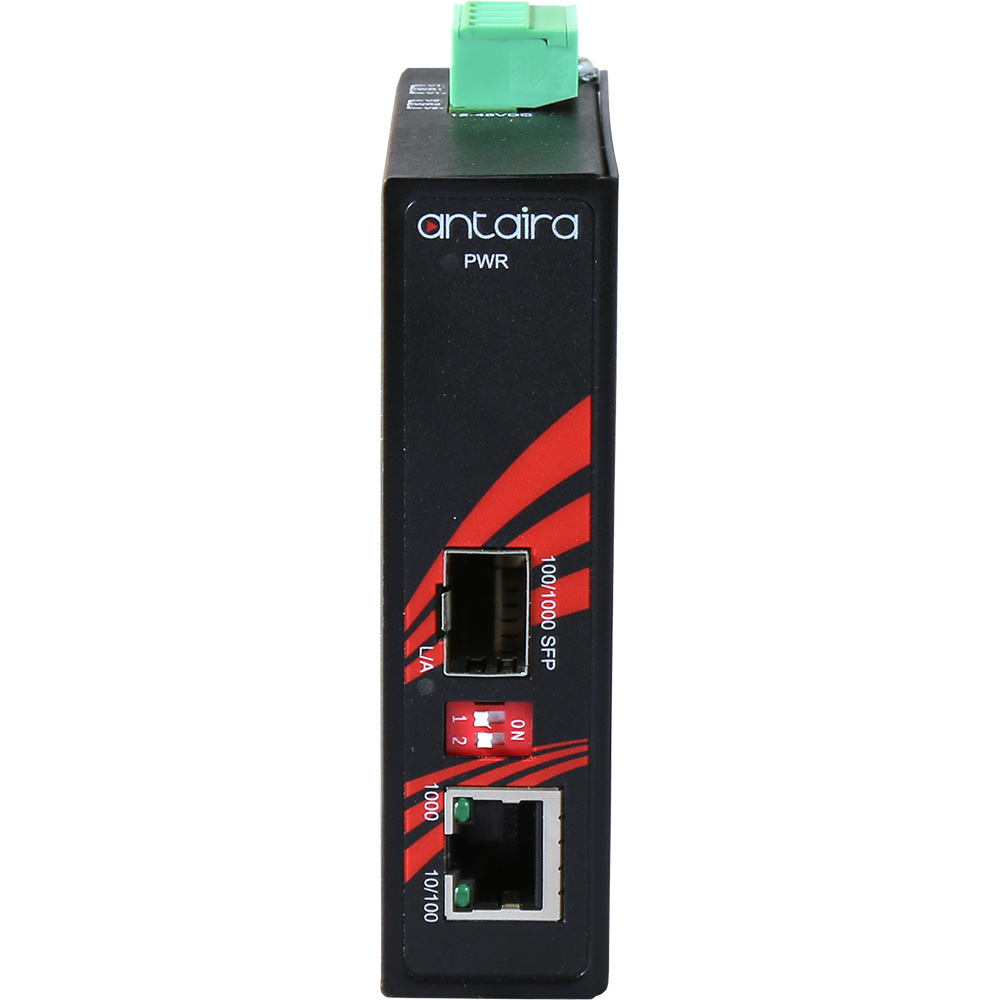

Tööstuslik konverter: 10/100/1000T(X) to 100/1000SX/LX SFP, -10° kuni 70°C, kompaktne, DIN

Tööstuslik konverter: 10/100/1000T(X) to 100/1000SX/LX SFP, -10° kuni 70°C, kompaktne, DIN

Back Plane	2Gbps
Certifications	FCC, CE, UL 61010-1, UL 61010-2-201
Compliance	NEMA TS1/TS2
Dimensions	26 x 95 x 75 mm
EMI	FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4
Ethernet Port	1 x 10/100/1000TX RJ-45
Fiber Port	1 x 100/1000TX SFP
Free Fall	IEC 60068-2-32
Humidity	5% ~ 95% non-condensing
IEEE Compliance	IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX/FX IEEE 802.3ab 1000BaseT IEEE 802.3x Flow Control and Back-Pressure IEEE 802.3z 1000BaseSX/LX
LED Indicators	Power (PWR): On / Off Ethernet: On-Link / Flashing- Data Transmitting SFP: Link & Active
MAC Table Size	8K
Method	Store and Forward
Operating Temperature	-10° ~ 70° C
Power Consumption	1.8 Watts
Power Input	12 ~ 48 VDC
Power Redundancy	Yes
Protocols	CSMA/CD
Shock	IEC 60068-2-27
Storage Temperature	-40° ~ 85° C
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,148,800pps for Fast Gigabit Port
Vibration	IEC 60068-2-6
Warranty	5 Years

265,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_IMC-C1000-SFP series_Datasheet_v1.2.pdf

Manufacturer Part Number: IMC-C1000-SFP
Tootekood: EE-100-169-789

Spetsifikatsioon

Weight

0.25 kg
