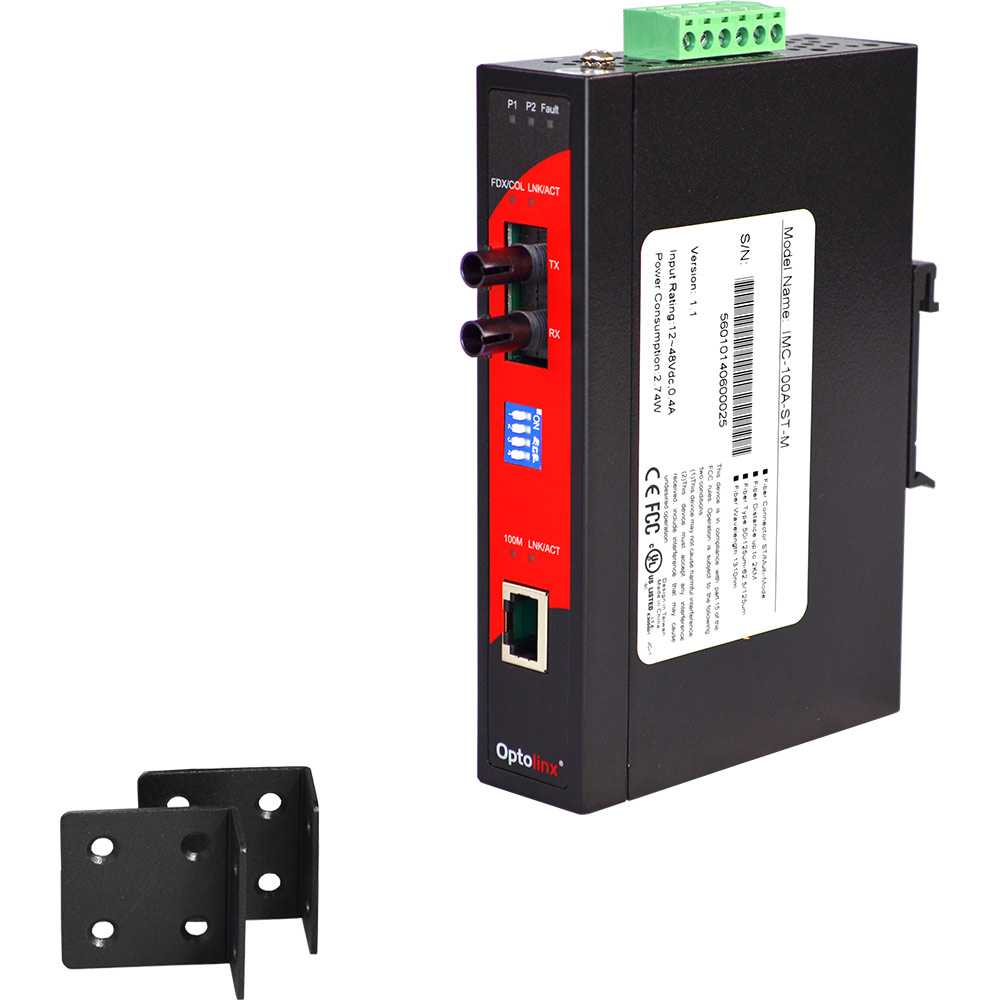

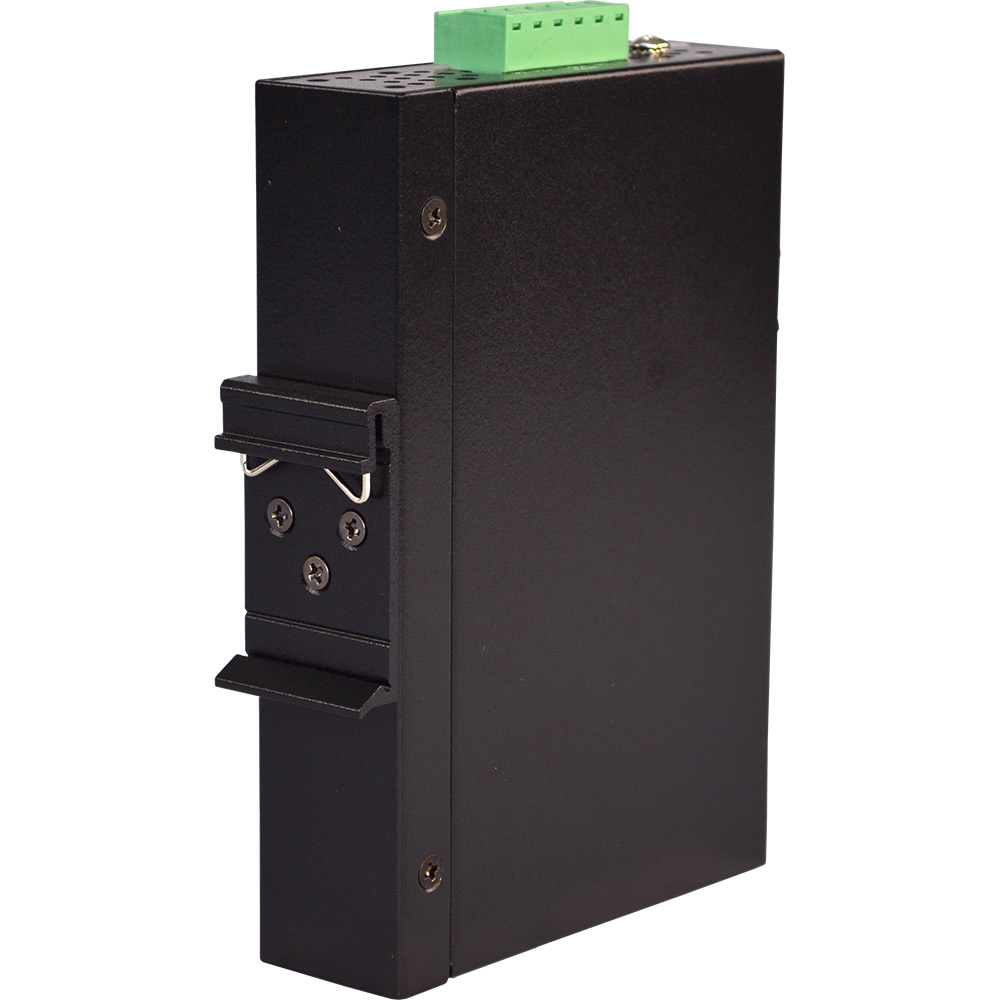

Tööstuslik konverter: 10/100T(X) to 100FX ST SM kuni 30km, -40° kuni 80°C, DIN

Tööstuslik konverter: 10/100T(X) to 100FX ST SM kuni 30km, -40° kuni 80°C, DIN

Approvals	EMI: FCC Class A CE-EN6100-4-2/3/4/5/6/8/11/12 CE-EN6100-6-2/4 Safety: UL/cUL CE-EN60950-1 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Connector	ST (Single-Mode)
Dimensions	IP-30, 30 x 95 x 140 mm (1.18 x 3.74 x 5.51 inches)
Dip Switch	1. ON: Enables Port/Power Alarm OFF: Disables Port/Power Alarm 2. ON: Enables LLF and LFP OFF: Disables LLF and LFP 3. ON: 100BaseFX Half-Mode OFF: 100BaseFX Full-Mode 4. ON: 100BaseTX Full-Duplex Mode OFF: Auto Negotiation
Ethernet	10/100BaseT: 1 x RJ45 Connector
Fiber Core	9/125um ~ 10/125um
Humidity	5% ~ 90% non-condensing
IEEE	IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX/FX IEEE 802.3x Flow Control and Back-Pressure

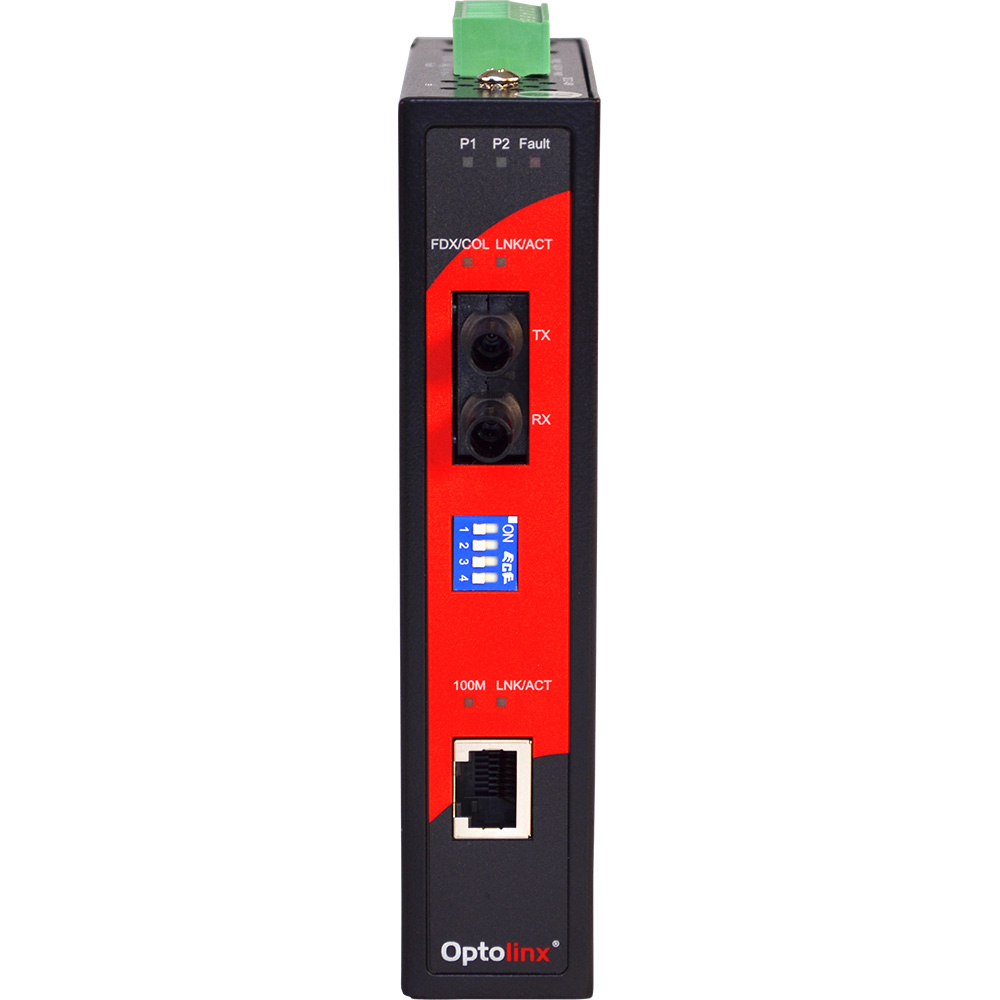

LED	Unit: Power, Power1, Power2(Green), Fault (Red) Fiber: Link/Activity(Green), Half/Full-Duplex(Yellow) Ethernet: Link/Activity(Green), 100M (Yellow)
Link Loss Forward	(TX-Fiber) If TX port link down, will force Fiber port to link down (Fiber-TX) If Fiber port link down, will force TX port to link down
Method	Store and Forward
Operating Temperature	-10° ~ 70° C (14° ~ 158° F)
Overload Current Protection	Present
Power	12 to 48 VDC ; Redundant inputs
Power Consumption	2.74 Watts
Reverse Polarity Power Protection	Present
Storage Temperature	-40° ~ 85° C
Typical Distance	30Km
Warranty	5 Years
Wavelength	1310nm

235,83 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_IMC-100A-XX series_Datasheet-v2.0.pdf

Manufacturer Part Number: IMC-100A-ST-S3-T
Tootekood: EE-100-169-778

Spetsifikatsioon

Weight

0.43 kg
