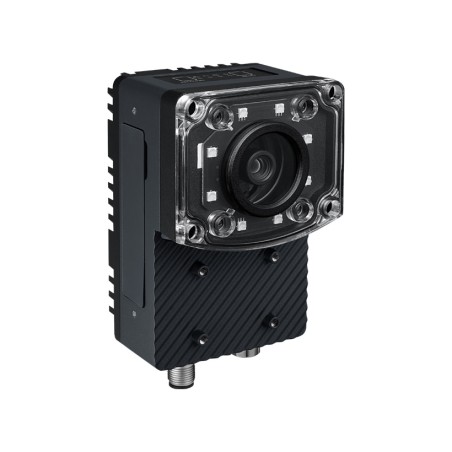

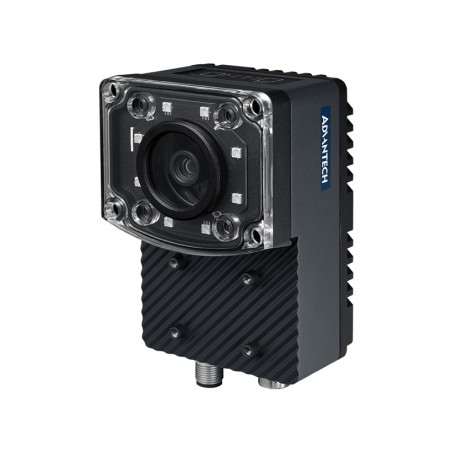

Advantech ICAM-540 seeria on kõrge integratsioonitasemega tööstuslik AI-kaamera, mis on varustatud SONY tööstusliku klassi pildisensoriga, mitme tuumaga ARM-protsessoritega ja NVIDIA AI-süsteemiga moodulis. Kaameral on CAMNavi SDK, HTML5 veebipõhine utiliit ja NVIDIA Deepstream SDK.
- Sensor type: SONY MX334
- Sensor size: 1/1.8"
- Resolution: 8MP
- Lens: 12mm variable focus lens
- LED: 8x PWM white LED
- FPS: 54
- CPU: 6-core NVIDA Cortex ARM ® v8.2 64-bit
- GPU: NVIDIA Orin NX
- Peripherals: I/O: 1x USB 3.0 Type C, 1x USB 3.0 Type A
- Digital I/O: 2 IN / 2 OUT, 1x trigger in
- Display I/O: 1x HDMI 2.0
- Power requirement: 24VDC Max: 18W, typical 15W
- Ethernet: 10/100/1000 Base-T
- Synchronization: Hardware trigger / software trigger / free-run
- IP: 54
- Operating temperature: 0 to 45 °C
- Dimensions: 79.5mm (W) x 121mm (H) x 62.9mm (D)
Software support:
- OS: Ubuntu 20.04, Jetpack 5.1.1
- Software: NVIDIA Deepstream SDK
- SDK/Utiltiy: CAMNavi SDK, Web based camera utility, IP configure tool, NVIDIA DeepStream SDK & example
