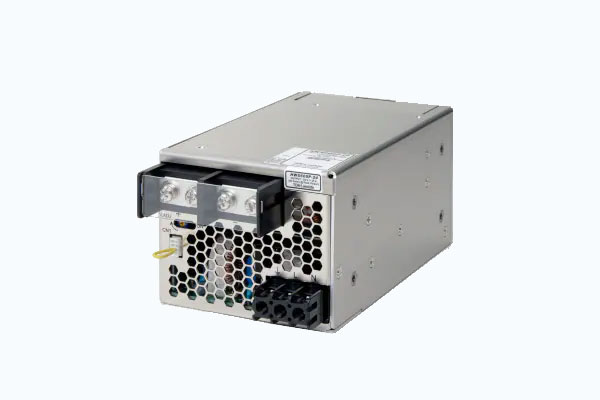

HWS300P & 600P seeria tippvõimsusega tööstuslikud toiteallikad
- Piiratud eluaegne garantii
- 300% tippvõimsuse võimsus
- Väike pakendi suurus
- Universaalne sisend (85-265 VAC)
- Kõrge kasutegur
Peamised turusegmendid ja rakendused
- Tehase automatiseerimine
- Protsessi juhtimine
- Pooljuhtide tootmine
- Mootorite ja pumpade ajamid
Electrical Characteristics
- Input Single-phase
- Input Voltage Range[AC] 85 to 265Vac
- Input Voltage Range[DC] 120 to 330Vdc
- Efficiency 84% Typ.
- Rated Output Voltage[DC] 36Vdc
- Output Voltage Range[DC] 28.8 to 39.6Vdc
- Maximum Average Current 16.7A
- Maximum Peak Current 55.5A
- Maximum Average Power 601.2W
- Maximum Peak Power 1998W
Package Type & Size
- Package / Mounting Enclosed / Unit type
Industry Standard Size
- Width(W) 100mm Nom. (3.94in Nom.)
- Height(H) 82mm Nom. (3.23in Nom.)
- Depth(D) 165mm Nom. (6.50in Nom.)
- Weight 1600g Typ. (3.5lbs Typ.)
Other
- Operating Temp. Range -10 to 70°C
- Cooling Forced air
- Safety Standard(Certified)
CSA60950-1
EN60950-1
UL60950-1
CSA62368-1
EN62368-1
UL62368-1
EN50178
- Safety Standard(Conformed) Den-an
Remarks
- This page only shows representative characteristics. Please refer to the technical data for detailed specifications and conditions.
