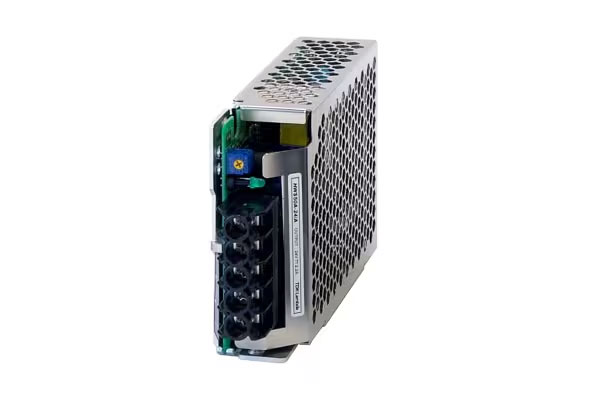

HWS-/ME seeria ühe väljundiga meditsiinilised toiteallikad
- Piiratud eluaegne garantii
- Meditsiinilised kinnitused
- Universaalne sisend (85-265 VAC)
- Kõrge kasutegur
- Lai 30W kuni 1500W tootevalik
- RoHS-konformne disain
Omadused
- Piiratud eluaegne garantii
- Meditsiinilised kinnitused
- Laiaulatuslik vahelduvvoolu sisend
Eelised
- Madalamad omamiskulud
- Vähendab süsteemi heakskiitmise aega
- Toetab ülemaailmset kasutamist
Electrical Characteristics
- Input Single-phase
- Input Voltage Range[AC] 85 to 265Vac
- Input Voltage Range[DC] 120 to 370Vdc
- Efficiency 84% Typ.
- Rated Output Voltage[DC] 5Vdc
- Output Voltage Range[DC] 4 to 6Vdc
- Maximum Output Current 10A
- Maximum Output Power 50W
Package Type & Size
- Package / Mounting Enclosed / Unit type
- Industry Standard Size
- Width(W) 31.5mm Nom. (1.24in Nom.)
- Height(H) 82mm Nom. (3.23in Nom.)
- Depth(D) 120mm Nom. (4.72in Nom.)
- Weight 300g Typ. (0.7lbs Typ.)
Other
- Operating Temp. Range -10 to 70°C
- Cooling Convection
- Safety Standard(Certified)
CSA-C22.2 No.60101-1
EN60601-1
ES60601-1
- Safety Standard(Conformed)
Remarks
- This page only shows representative characteristics. Please refer to the technical data for detailed specifications and conditions.
