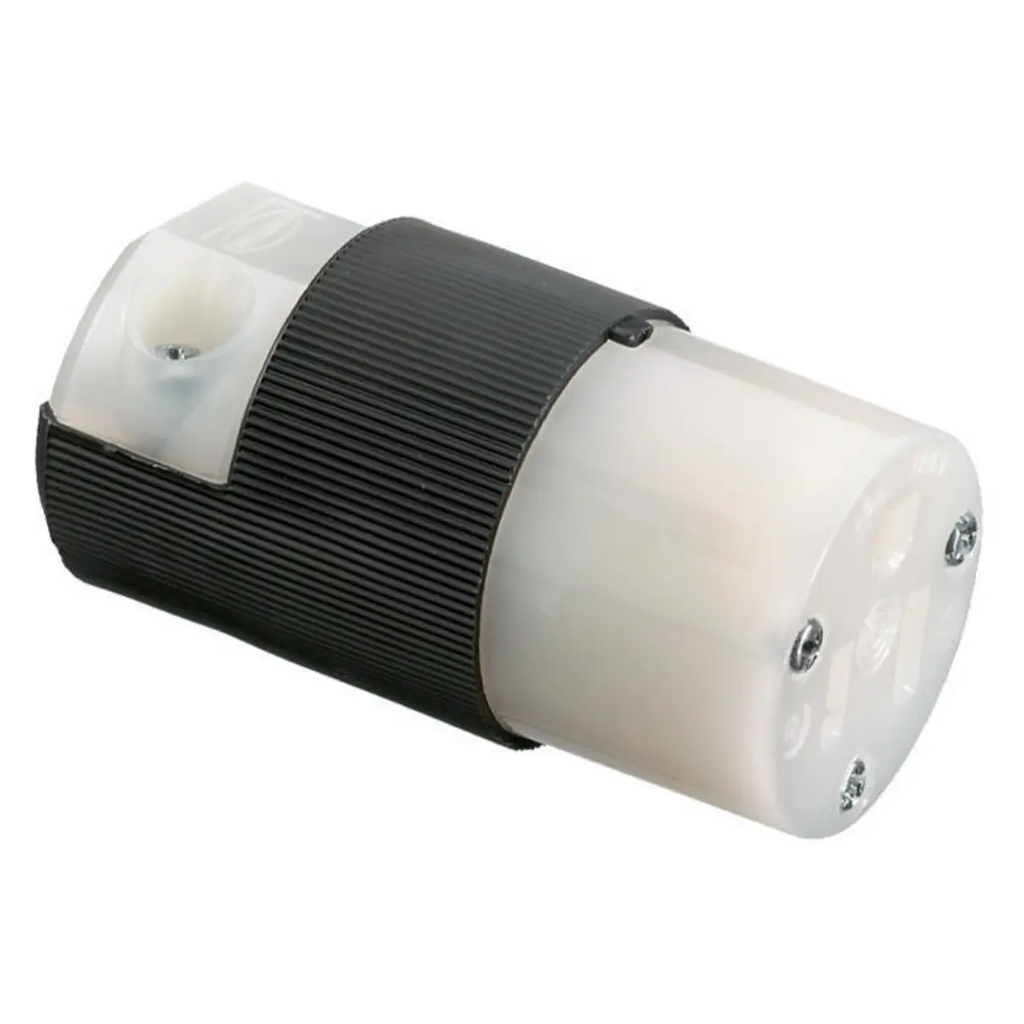

Sirge Teraga Seadmed, Emane Ühenduskeha, Insulgrip Heavy Duty, Tööstuslik/Kommertslik Klass, Sirge, 2-Pooluseline 3-Juhtmeline Maandus, 15A 125V, 5-15R, Must ja Valge, Üksikpakend.
General
Application Industrial/Commercial Grade
Catalog Number HBL5269C
Color Black, White
Cord Range 0.300"-0.660" (7.6-16.8)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 0.5
Insulation Insulated Body
Item Type Insulgrip Plug
Material Polycarbonate
Material - Mounting Hardware Cord Mounted
Number Of Poles 2-Pole
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - UL 94 HB or better
Environmental - IP Suitability - IP20
Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series Insulgrip®
Specifications
Assembly Screws - Nickel plated steel
Contact Holder - Nylon
Contacts - .040 in. (1.0) Brass
Housing/Cord Clamp - Nylon
Terminal Clamp - Nickel plated steel
Terminal Retainer - Clear Polycarbonate
Terminal Screws - #8-32 Brass , multiple drive
Style Standard
Temperature Rating Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type Connector Body
UPC 783585173252
Dimensions
Dimensions 2.65 in x 1.55 in x 2.65 in
Display Size Standard
Height 2.65 in
Length 2.65 in
Weight 0.15 lb
Width 1.55 in
Electrical Ratings
Amperage Rating 15 A
Connectivity Screw Terminals
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 125 VAC
Voltage Rating Description 125 V
Conductor Related
Conductor Range #18 AWG to #10 AWG
Number Of Wires 3-Wire
Wire Size #18 AWG to #10 AWG
Certifications And Compliance
Buy America(n) Qualified Buy American Act Compliant (All status valid till December 2024)
Buy American Compliant Yes
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280
NEMA® WD-6 Compliant
UL Listed to UL498 File E1706
Nema Rating 5-15R
Standards - RoHS Compliance Status CM
