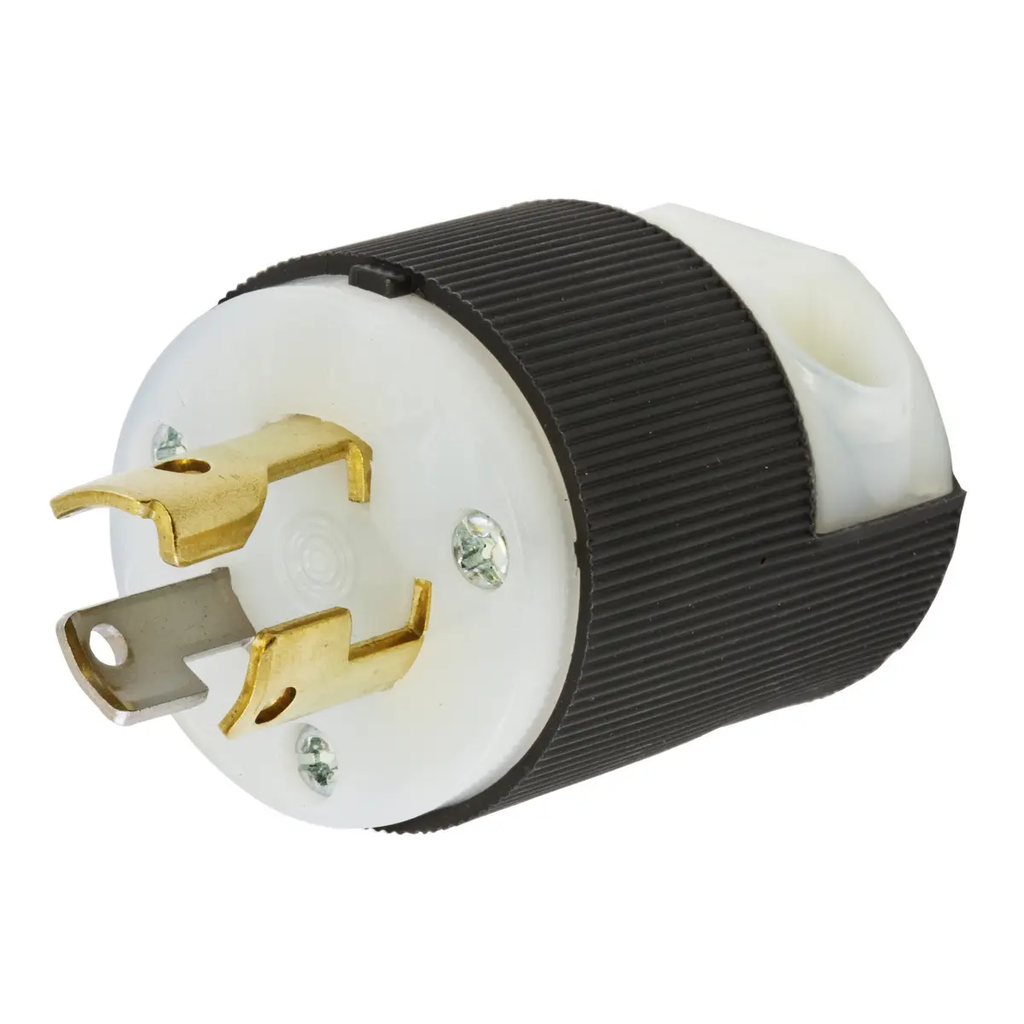

Lukustusseadmed, Twist-Lock®, Tööstuslik, Isane Insulgrip® Pistik, 15A 125V, 2-Pooluseline 3-Juhtmeline Maandus, NEMA L5-15P, Kruviklemm, Must ja Valge Nailon.
- Individuaalselt vormitud esipaneel iga kontakti konfiguratsiooni jaoks.
- Avar juhtmestiku kamber pakub piisavalt ruumi juhtmestikuks.
- Ribiline nailonkorpus tagab kindla haarde, mis on löögi- ja kemikaalikindel.
General
Catalog Number HBL4720C
Color Black, White
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 0.5
Item Type 15A Grounding Insulgrip® Plug
Material Nylon
Material - Mounting Hardware Cord Mounted
Number Of Poles 2-Pole
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
Environmental - Moisture Resistance - IP20 Suitability
Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications
Assembly Screws - Steel - nickel plated
Blades - Brass
Housing / Cord Clamp - Nylon
Terminal Clamp - Cold rolled steel – nickel plated
Terminal Retainer - Clear polycarbonate
Terminal Screws - #8-32 Brass (Phillips / Slotted / Robertson)
Type Plugs
UPC 783585171159
Dimensions
Dimensions 1.53 in x 1.53 in x 1.97 in
Display Size Standard Sized
Height 1.97 in
Length 1.53 in
Weight 0.15 lb
Width 1.53 in
Electrical Ratings
Amperage Rating 15 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 125 V
Conductor Related
Cable Range 0.230 - 0.720 in
Cord Type All Listed Portables
Number Of Wires 3-Wire
Wire Size #16 AWG to #8 AWG
Certifications And Compliance
Buy America(n) Qualified BABA Compliant (All status valid till December 2025)
Certified Listed
Industry Standard(s)
Certified to CSA C22.2 No.42
Fed.Spec. W-C-596
Listed to UL 498
Nema Rating L5-15P
Standards - RoHS Compliance Status CM
