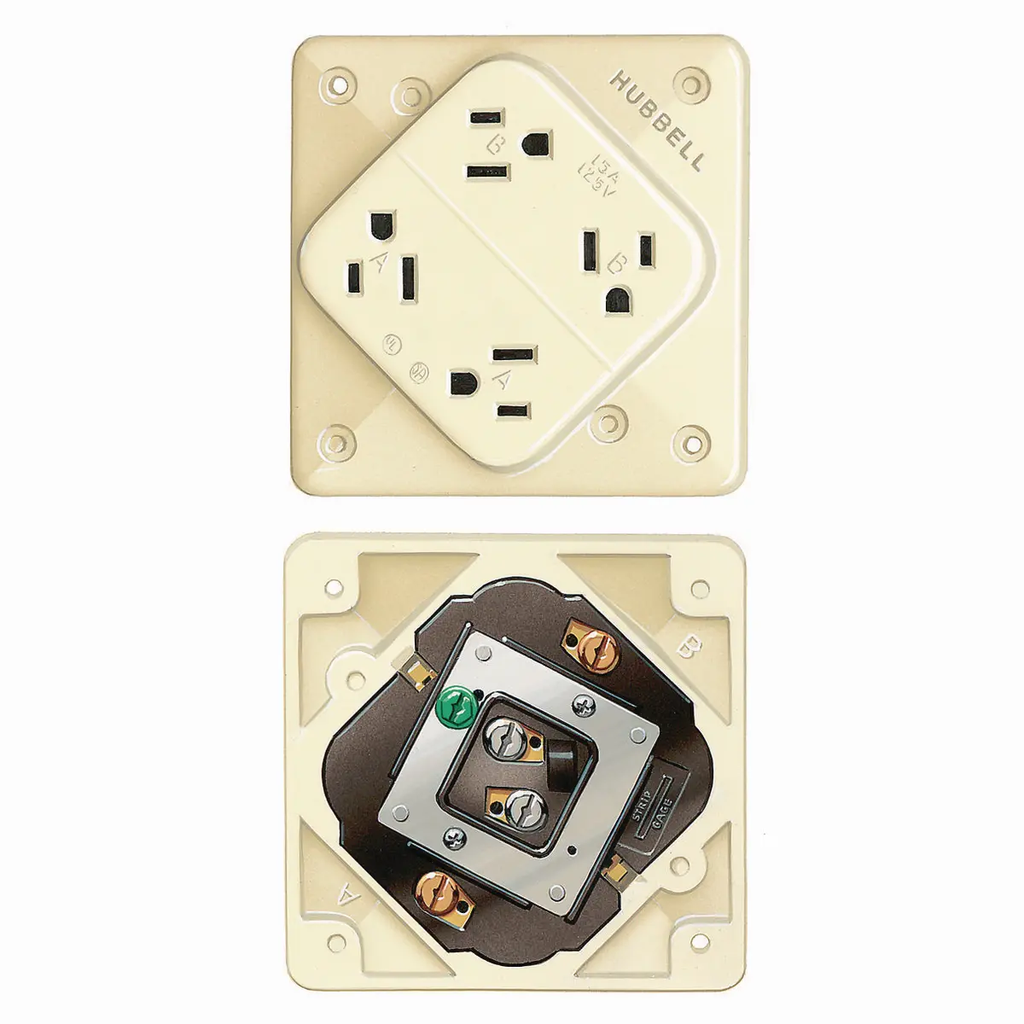

Sirge Teraga Seadmed, Pistikupesad, 4-Plex, Kommerts-/Tööstuslik Klass, 2-Pooluseline 3-Juhtmeline Maandus, 15A 125V, 5-15R, Elevandiluu, Üksikpakend.
- Ankruauk ja aas tagavad jäiga ja lihtsa ühenduse.
- Lihtsalt ligipääsetavad murdmisribad jagatud juhtmestiku jaoks.
- Kolm juhti varustavad kõiki nelja pistikupesa.
General
Application Industrial
Catalog Number HBL415I
Color Ivory
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 0.5
Item Type 4-PLEX
Material Polycarbonate
Material - Mounting Hardware Screw Mounting
Number Of Poles 2-Pole
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Capable of withstanding a fault level of 1000A, per UL498
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - UL 94 V-2
Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
Mechanical - Product Identification - Ratings are a permanent part of the device
Mechanical - Terminal Accommodation - #14-12 AWG stranded or solid copper conductor only
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series 4-Outlet Receptacle
Specifications
Base - PBT
Face - Polycarbonate
Ground Contacts - .031 in. (.8) Brass
Ground Plate - .032 in. (.8) Plated Steel
Power Contacts - .032 in. (.8) Brass
UPC 783585013770
Dimensions
Dimensions 4.30 in x 0.92 in x 4.30 in
Display Size Standard Sized Product
Height 4.3 in
Length 4.3 in
Weight 0.4 lb
Width 0.92 in
Electrical Ratings
Amperage Rating 15 A
Connectivity Screw Terminals
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 125 V
Voltage Rating Description 125 V
Wattage 1875 W
Conductor Related
Number Of Wires 3-Wire
Wire Size #14 AWG to #12 AWG
Certifications And Compliance
Buy America(n) Qualified TAA Compliant (All status valid till December 2024)
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285
Listed to UL Standard 498 File E2186
NEMA® WD-6 Compliant
Nema Rating 5-15R
Standards - RoHS Compliance Status CM
