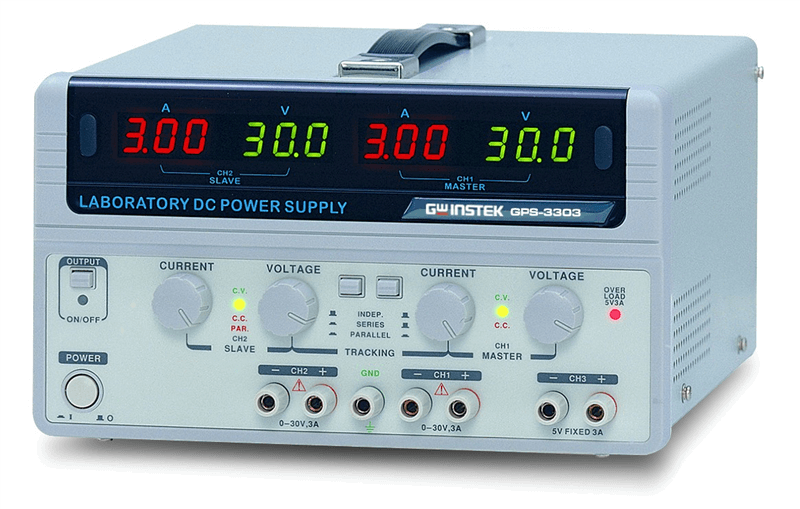

Labori toiteplokk 3 kanaliga 2x0-30V/0-3A, 5V/3A

	GPS-4303				GPS-3303			GPS-2303
DC OUTPUT
	CH1	CH2	CH3	CH4	CH1	CH2	CH3	CH1	CH2
Voltage	0~30V		2.2~5.2V	8~15V	0~30V		5V Fixed	0~30V
Current	0~3A		1A Max.	1A Max.	0~3A		3A Max.	0~3A
Tracking Series Voltage	0~60V		---		0~60V		---	0~60V
Tracking Parallel Current	0~6A				0~6A			0~6V
CONSTANT VOLTAGE OPERATION (CH1, CH2)
Line Regulation	?0.01% + 3mV
Load Regulation	?0.01% + 3mV (rating current?3A) ?0.02% + 5mV (rating current >3A)
Ripple & Noise	?1mVrms 5Hz ~ 1MHz
Recovery Time	?100μS ( 50% Load change, Minimum load 0.5A )
CONSTANT CURRENT OPERATION (CH1, CH2)
Line Regulation	?0.2% + 3mA
Load Regulation	?0.2% + 3mA
Ripple Current	?3mArms
TRACKING OPERATION (CH1, CH2)
Tracking Error	?0.5% + 10mV of CH1
Series Regulation	?0.01% + 5mV
Load Regulation	?300mV
Ripple & Noise	?2mVrms, 5Hz ~ 1MHz
CH3 OPERATION (for GPS-3303/4303)
CH3 Voltage	2.2V ~ 5.2V
Line Regulation	?5mV
Load Regulation	?15mV
Ripple & Noise	?2mVrms 5Hz ~ 1MHz
Current Output	1A
CH4 OPERATION (for GPS-4303)
CH4 VOLTAGE	8V ~ 5V
Line Regulation	?5mV
Load Regulation	?10mV
Ripple & Noise	?2mVrms 5Hz ~ 1MHz
Recovery Time	1A
METER
Digital Accuracy	3 Digits 0.5" LED Display GPS-4303/3303 Out ON Accuracy ± (0.5% of rdg + 2 digits) GPS-4303/3303 Out OFF Accuracy ± (0.5% of rdg + 8 digits) GPS-2303 Accuracy ± (0.5% of rdg + 2 digits)
INSULATION
Chassis and Terminal	?DC 500V / 20MΩ
Chassis and AC Cord	?DC 500V / 30MΩ
POWER SOURCE
	AC 100V/120V/220V ±10%, 230V(+10% ~ -6%), 50/60Hz
DIMENSIONS & WEIGHT
	255(W) x 145(H) x 265(D)mm, Approx. 7kg

421,00 € (ilma km-ta)

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: GPS-3303
Tootekood: EE-100-176-663
