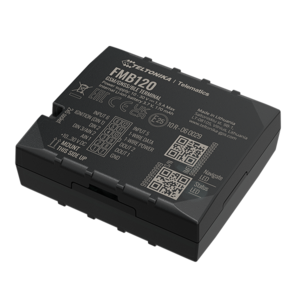

FMB120 väike ja professionaalne jälgimisseade, millel on sisemised suure võimsusega GSM- ja GNSS-antennid, mis suudab koguda seadme koordinaate ja muid kasulikke andmeid ning edastada need GSM-võrgu kaudu serverisse. See seade sobib suurepäraselt rakendusteks, kus on vaja kaugel asuvate objektide asukoha määramist: autopargi haldamine, autorendifirmad, taksofirmad, ühistransport, logistikafirmad, isiklikud autod jne. FMB120 võib täita kaugobjektide ülesandeid, näiteks jälgida mootori seisundit, kontrollida veoauto uks
|
Name |
Teltonika TM2500 |
|
Technology |
GSM/GPRS/GNSS/BLUETOOTH |
|
GNSS |
|
GNSS |
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
|
Receiver |
33 channel |
|
Tracking sensitivity |
-165 dBM |
|
Accuracy |
< 2.5m CEP |
|
Hot start |
< 1 s |
|
Warm start |
< 25 s |
|
Cold start |
< 35 s |
|
CELLULAR |
|
Technology |
GSM |
|
2G bands |
Quad-band 850 / 900 / 1800 / 1900 MHz |
|
Data transfer |
GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
|
Data support |
SMS (text/data) |
|
POWER |
|
Input voltage range |
10 - 30 V DC with overvoltage protection |
|
Back-up battery |
170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
|
Power consumption |
At 12V < 6 mA (Ultra Deep Sleep)
At 12V < 8 mA (Deep Sleep)
At 12V < 11 mA (Online Sleep)
At 12V < 20 mA (GPS Sleep)
At 12V < 35 mA (nominal) |
|
BLUETOOTH |
|
Specification |
4.0 + LE |
|
Supported peripherals |
Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
|
INTERFACE |
|
Digital Inputs |
3 |
|
Digital Outputs |
2 |
|
Analog Inputs |
2 |
|
CAN Adapter inputs |
1 |
|
1-Wire |
1 |
|
GNSS antenna |
Internal High Gain |
|
Cellular antenna |
Internal High Gain |
|
USB |
2.0 Micro-USB |
|
LED indication |
2 status LED lights |
|
SIM |
Micro-SIM + eSIM |
|
Memory |
128MB internal flash memory |
|
PHYSICAL SPECIFICATION |
|
Dimensions |
65 x 56,6 x 18,9 mm (L x W x H) |
|
Weight |
55 g |
|
OPERATING ENVIRONMENT |
|
Operating temperature (without battery) |
-40 °C to +85 °C |
|
Storage temperature (without battery) |
-40 °C to +85 °C |
|
Operating humidity |
5% to 95% non-condensing |
|
Ingress Protection Rating |
IP41 |
|
Battery charge temperature |
-0 °C to +45 °C |
|
Battery discharge temperature |
-20 °C to +60 °C |
|
Battery storage temperature |
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months |
|
FEATURES |
|
Sensors |
Accelerometer |
|
Scenarios |
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
|
Sleep modes |
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
|
Configuration and firmware update |
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
|
SMS |
Configuration, Events, DOUT control, Debug |
|
GPRS commands |
Configuration, DOUT control, Debug |
|
Time Synchronization |
GPS, NITZ, NTP |
|
Fuel monitoring |
LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle |
|
Ignition detection |
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
|
CERTIFICATION & APPROVALS |
|
Regulatory |
CE/RED, E-Mark, EAC, RoHS, REACH |
