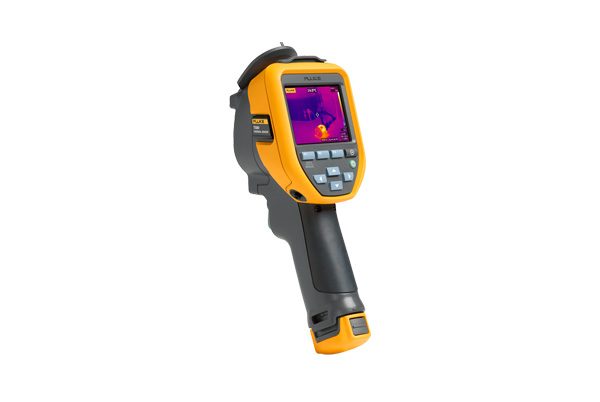

Fluke TiS60+ soojuskaamera
Suurendage oma meeskonna tulemuslikkust 320 x 240 eraldusvõimega. TiS60+-kaameraga tehtud infrapunapildid jäädvustavad väiksemaid temperatuurierinevusi kaugemalt. Kui olete termopildistamise alal uus või kui teie kaamerat kasutab erineva tasemega termopildistamise kogemusega meeskond, pakub TiS60+ fikseeritud fookust koos võimalusega jäädvustada kvaliteetseid pilte kaugemalt.
Usaldusväärne ja lihtne kasutada kogu meeskonnale
TiS60+ võimaldab näha asju, mis on silmale nähtamatud, ja paljastada probleeme, mida teiste tehnoloogiatega ei ole võimalik tuvastada. See on lihtne kasutada, usaldusväärne soojuskaamera, millele meeskond võib toetuda.
Lihtne kasutada fikseeritud fookusega
3,5-tolline LCD-ekraan
Ühe käega pildi jäädvustamise, läbivaatamise ja salvestamise võimalus
Fluke Connect™ ühilduvus juhtmevabaks jagamiseks
Tõhususe suurendamine IR-fotode märkmete abil
Sageli on infrapunapiltide puhul järgmine suur väljakutse tagada, et meeskonna tehtud pilte saaks kiiresti lisada töökorraldustele. TiS60+ on varustatud IR Photo Notes funktsiooniga, mis teeb selle lihtsaks. Need annavad kaameraoperaatorile lihtsa võimaluse lisada pildiga seotud pilte, mis dokumenteerivad termopildiga seotud seadme nime või ruumi asukoha, nii et töökorralduse looja saab tehnikud saata remonditööde tegemiseks õigesse kohta.
Olge valmis kõigega, mida vajate oma seadmete baastaseme kehtestamiseks, ennetava hoolduse programmi loomiseks ja standardtööde määramiseks. Fluke TiS60+ annab teile töö tegemiseks vajalikud soojusandmed.
Key features
IFOV (spatial resolution)1.86 mRad, D:S 532:1
Infrared resolution320 x 240 (76,800 pixels)
Field of view34.1 °H x 25.6 °H
Focus systemFixed
Minimum focus distance46 cm (18 in)
Ruggedized display3.5 inch (8.9 cm landscape) 320 x 240 LCD
Ergonomic designDesigned for one-handed use
Temperature measurement
Temperature range (not calibrated below -10 °C)-20 °C to 400 °C (-4 °F to 752 °F)
Accuracy± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
Thermal sensitivity (NETD)≤ 0.045 °C at 30 °C target temp (45 mK)
On-screen emissivity correctionYes (both value and table)
On-screen reflected background temperature compensationYes
On-screen transmission correctionNo
Wireless connectivity
Wireless connectivityYes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available)
Fluke™ Connect app compatibleYes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect Assets optional softwareYes*, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location
IR Fusion® technology
IR Fusion® technologyYes
AutoBlend™ modeYes
Picture-In-Picture (PIP)Yes
Built-in digital camera (visible light)5MP
Level and span
Level and spanSmooth auto and manual scaling
Fast auto-rescale in manual modeYes
Minimum span (in manual mode)2.5 °C (4.5 °F)
Minimum span (in auto mode)5 °C (9.0 °F)
Data storage and image capture
Extensive memory optionsInternal 4GB memory and 4GB micro SD card
Image capture, review, save mechanismOne-handed image capture, review, and save capability
Image file formatsNon-radiometric BMP or JPEG or fully-radiometric is2
Memory reviewYes
SoftwareFluke Connect desktop software - full analysis and reporting software with access to the Fluke Connect system
Analyze and store radiometric data on a PCYes
Export file formats with Fluke Connect softwareis2, BMP, GIF, JPEG, PNG, TIFF
Voice annotation60 seconds maximum recording time per image; reviewable playback on camera; Bluetooth headset required (sold separately)
IR-PhotoNotesYes - 3 images
Auto capture (temperature and interval)Yes
Battery
Batteries (field-replaceable, rechargeable)Two lithium ion smart battery pack with five-segment LED display to show charge level
Battery life4 hours continuous use per battery pack
Battery charging time2.5 hours to full charge
Battery charging systemTwo-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operationAC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power savingUser selectable
Color palettes
Standard palettes8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra contrast palettes8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
General specifications
Laser pointerYes
Frame rate< 9 Hz or 30 Hz
Color alarmsHigh temperature, low temperature, isotherms (within range)
Infrared spectral band7.5 μm to 14 μm
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity10 % to 95 %, non-condensing
Center-point temperature measurementYes
Spot temperatureHot and cold spot markers
User-definable spot markers3
User defined measurement boxesExpandable-contractible measurement box
Hard caseRugged hard carrying case with soft transport bag, including adjustable strap
Safety standardsIEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic compatibilityIEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCMRCM IEC 61326-1
US FCCEN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
Vibration2G, IEC 68-2-6
Shock25G, IEC 68-2-29
DropEngineered to withstand 2 meter (6.5 feet) drop
Sized (H x W x L)26.7 cm x 10.1 cm x 14.5 cm (10.5 in x 4.0 in x 5.7 in)
Weight (battery included)0.72 kg (1.6 lb.)
Enclosure ratingIP54 (protected against dust, limited ingress; protection against water spray from all directions)
WarrantyTwo-years (standard)
Recommended calibration cycleTwo-years (assumes normal operation and normal aging)
Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
RoHS compliantYes
