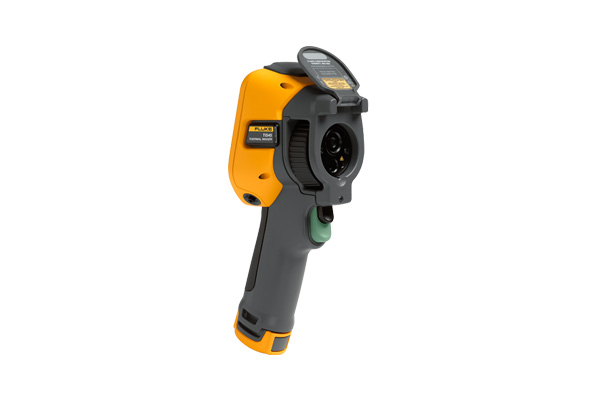

Fluke TiS45 infrapunakaamera pakub paindlikku manuaalset fookust, et jäädvustada sihtmärgist parim võimalik pilt.
Elektrikud ja tehnikud saavad TiS45 infrapunakaameraga suurendada oma kontrolli- ja remondikiirust. Selle 160x120 resolutsioon ja manuaalne fookus tagavad mitmekülgsuse, mida vajate mitmete tööstuslike rakenduste jaoks. Ja see on ehitatud vastupidava konstruktsiooniga, nii et saate seda kõikjale kaasa võtta. Viie eelseadistuse IR-Fusion® AutoBlend™ abil saate segada nähtava valguse pildi infrapunapildiga viiel erineval tasemel, et probleeme hõlpsamini leida. Samuti võimaldab pilt-pildis-režiim säilitada võrdlusraamistiku, paigutades infrapunaakna digipildi sisse, et rõhutada huvipakkuvat punkti. Kauguse ja punkti (D:S) suhtega 257:1 saate neid pilte jäädvustada ka pikema vahemaa tagant.
4 GB sisemälu ja 4 GB lisamälu koos lisavarustuses oleva mikro SD-kaardiga võimaldab TiS45 salvestada tuhandeid pilte, mis teeb probleemide dokumenteerimise kiireks ja lihtsaks. Ja tänu viie segmendiga LED-laadimistaseme näiduga liitiumioonakule teate alati, kui palju energiat on veel alles.
Tehke koostööd välitingimustes Fluke Connect® ühenduvuse abil.
Kuna TiS45-l on Fluke Connect-funktsioon, saate jagada pilte reaalajas¹ meeskondade vahel ja säästa aega, luues ja saates aruandeid tööplatsilt e-postiga. Jäädvustage mitu mõõtmist ja salvestage need pilve, kasutades WiFi üleslaadimist ja kuni 5 GB tasuta salvestusruumi Fluke Cloud™ abil.
Saate oma piltidest rohkem kasu Fluke Connect® SmartView® IR analüüsi aruandlustarkvara abil.
Saate kasutada Fluke Connect SmartView tarkvara, et analüüsida TiS45 piltide graafilisi vahendeid, et kvantifitseerida probleemide tõsidust. kui olete analüüsi lõpetanud, saate hõlpsasti luua professionaalse aruande koos soojuspiltidega, kasutades lihtsasti jälgitavat aruande viisardit, mis juhendab teid samm-sammult.
Key Features
IFOV (spatial resolution)3.9 mRad
Detector resolution160x120
Field of view35.7 ° x 26.8 °
Distance to spot257:1
Wireless connectivityYes
Fluke Connect® app compatibleYes (where available)
IR-Fusion® Technology
AutoBlend™ mode5 presets (0%, 25%, 50%, 75%, 100%)
Picture-In-Picture (PIP)5 presets (0%, 25%, 50%, 75%, 100%)
Focus systemManual focus, Minimum focus distance, 0.15 m (6 in)
Ruggedized display3.5 inch (landscape) 320x240 LCD
Rugged, ergonomic design for one-handed useYes
Thermal sensitivity (NETD)≤0.09 °C at 30 °C target temp (90 mK)
Temperature measurement range (not calibrated below -10 °C)-20 °C to +350 °C (–4 °F to 662 °F)
Level and spanSmooth auto and manual scaling
Fast auto toggle between manual and auto modesYes
Fast auto-rescale in manual modeYes
Minimum span (manual mode)2.5 °C
Minimum span (auto mode)5 °C
Built-in digital camera (visible light)5 MP
Frame rate9 Hz or 30 Hz
Laser pointer-
Data storage and Image Capture
Extensive SD memory systemInternal 4 GB memory and 4 GB removable micro SD card
Image capture, review, save mechanismOne-handed image capture, review, and save capability
Image file formatsNon-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2);
No analysis software required for non-radiometric (.bmp, .jpg) files
Instant UploadInstantly upload captured images to Fluke Connect server with the use of a WiFi connection
Memory reviewThumbnail review
SoftwareSmartView® software - full analysis and reporting software and Fluke Connect® (where available)
Export file formats with SmartView® softwareBMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Voice annotation-
IR-PhotoNotes™-
Standard video recording-
Radiometric video recording-
Video file formats-
Streaming video (remote display)-
Battery
Batteries (field-replaceable, rechargeable)One lithium ion smart battery pack with five-segment LED display to show charge level
Battery lifeFour+ hours
Battery charge time2.5 hours to full charge
Battery charging systemIn-imager charging (optional external charger sold separately)
AC operationAC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Temperature Measurement
Accuracy±2 °C or 2% (at 25 °C nominal, whichever is greater)
On-screen emissivity correctionYes (both value and table)
On-screen reflected background temperature compensationYes
On-screen transmission correctionYes
Color Palettes
Standard palettes7: Ironbow, Blue-Red, High-Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes-
General Specifications
Color alarms (temperature alarms)High temperature, low temperature
Infrared spectral band7.5 μm to 14 μm
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature-20 °C to +50 °C (-4 °F to 122 °F)
Relative humidity10% to 95%, non-condensing
Center-point temperature measurement-
Spot temperatureYes
User-definable spot markers1
Center box-
Safety standardsEN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)
Electromagnetic compatibilityEN 61326-1:2006, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
C TickIEC/EN 61326-1
US FCCEN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
Vibration and shock2G, IEC 68-2-6 and 25G, IEC 68-2-29
DropEngineered to withstand 2 m (6.5 ft) drop
Size (H x W x L)26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in)
Weight (battery included)Fixed focus .72 kg (1.6 lb), Manual focus .77 kg (1.7 lb)
Enclosure ratingIP54 (protected against dust, limited ingress; protection against water spray from all directions)
WarrantyTwo-years (standard), extended warranties are available
Recommended calibration cycleTwo-years (assumes normal operation and normal aging)
Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
